| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T09_9000004320_30054cztM0_level2.evt | modeM0/AS1A10_071T09_9000004320_30054cztM0_level2_quad_clean.evt |
| Size (bytes) | 585,806,400 | 94,838,400 |
| Size | 558.7 MB | 90.4 MB |
| Events in quadrant A | 3,728,862 | 603,270 |
| Events in quadrant B | 5,779,036 | 598,732 |
| Events in quadrant C | 3,787,779 | 572,427 |
| Events in quadrant D | 3,934,254 | 572,853 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15775 | 2 |
| B | 0 | 22957 | 2 |
| C | 0 | 15781 | 3 |
| D | 0 | 16180 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7539 | 188 | 2.493699% |
| B | 7539 | 336 | 4.456825% |
| C | 7538 | 240 | 3.183868% |
| D | 7538 | 140 | 1.857257% |

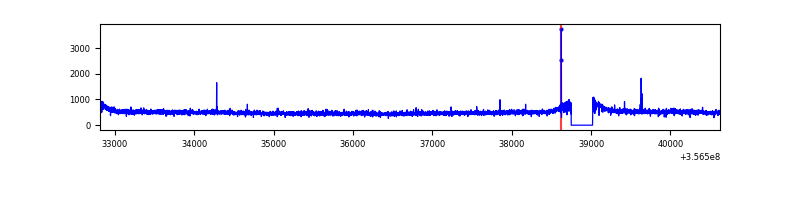

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7809 | 7540 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7809 | 7540 | 18 | 18 | 0.23% | 0.24% |  |
| C | 7808 | 7539 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7808 | 7539 | 25 | 25 | 0.32% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 22916 | 113.79 | 955 | 935 | 193.2 |
| A | 12 | 96 | 22878 | 113.59 | 955 | 935 | 193.2 |
| A | 13 | 254 | 13563 | 65.37 | 955 | 935 | 193.2 |
| B | 6 | 159 | 2046479 | 11282.03 | 933 | 908 | 181.3 |
| B | 0 | 229 | 42201 | 227.74 | 933 | 908 | 181.3 |
| B | 12 | 111 | 22956 | 121.6 | 933 | 908 | 181.3 |
| C | 14 | 238 | 146917 | 679.6 | 910 | 913 | 214.8 |
| C | 3 | 233 | 64747 | 297.13 | 910 | 913 | 214.8 |
| C | 2 | 114 | 17438 | 76.92 | 910 | 913 | 214.8 |
| D | 8 | 195 | 259880 | 1183.52 | 921 | 899 | 218.8 |
| D | 2 | 250 | 97280 | 440.45 | 921 | 899 | 218.8 |
| D | 7 | 223 | 30004 | 133.01 | 921 | 899 | 218.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

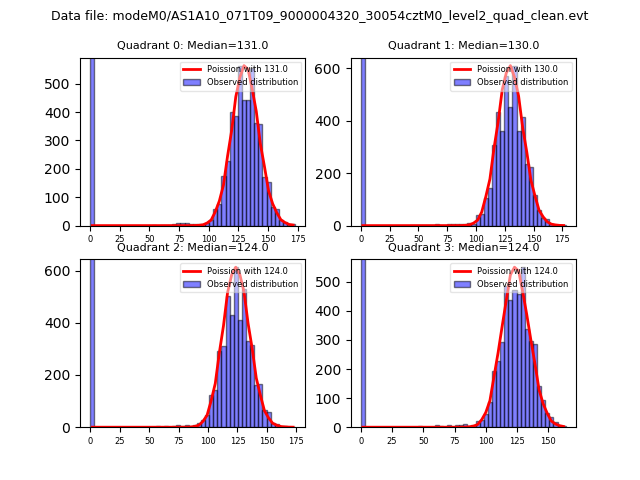

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

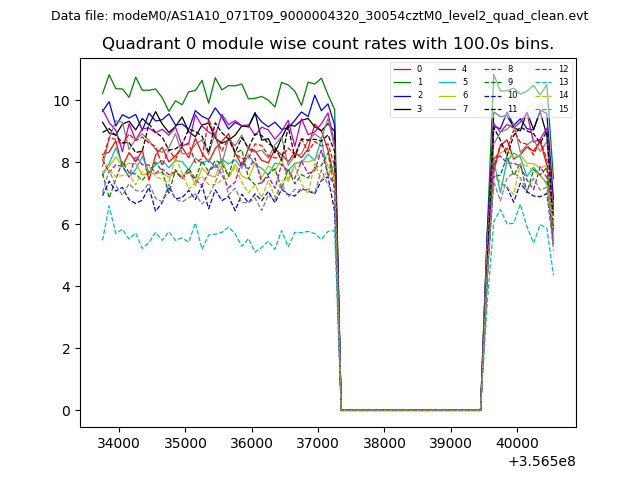

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

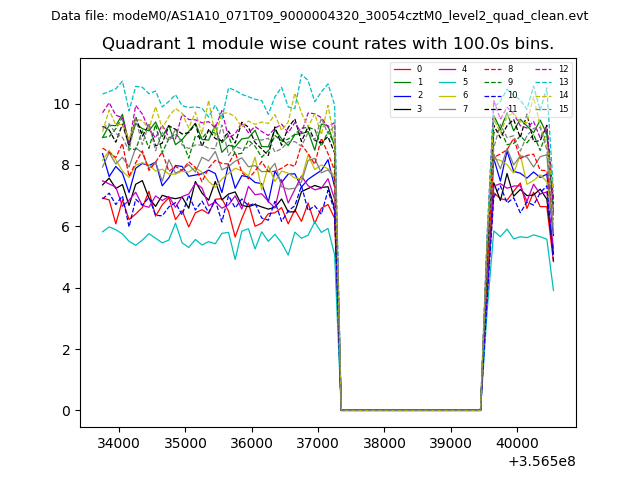

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

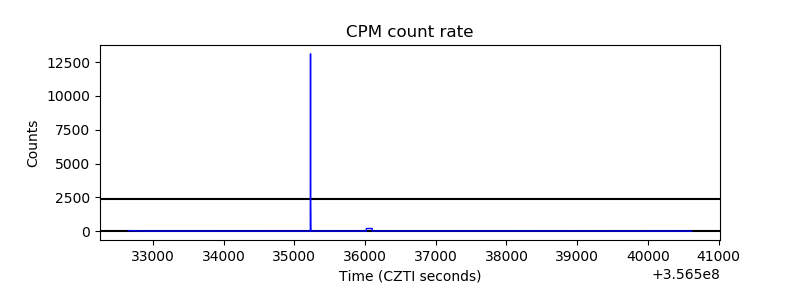

| _CPM_Rate |  |

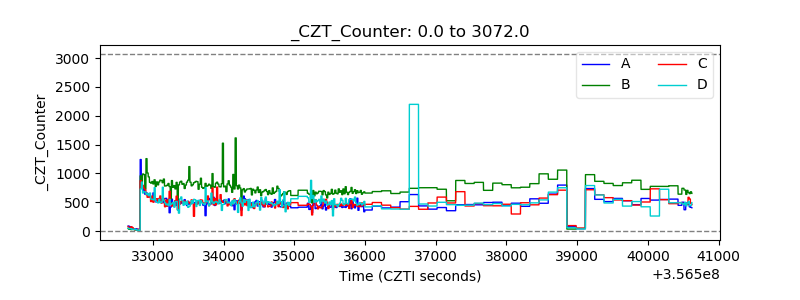

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

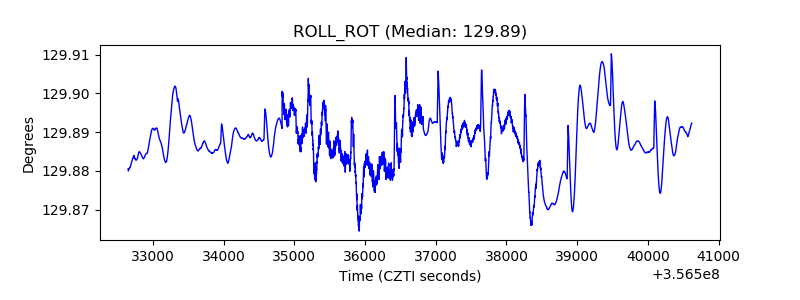

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

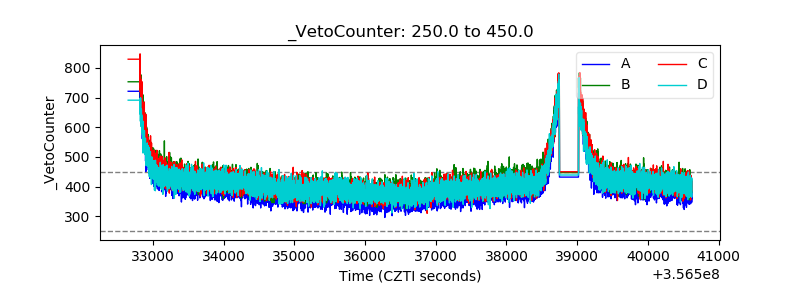

| Veto Counter |  |
