| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_082T06_9000004318_30039cztM0_level2.evt | modeM0/AS1A10_082T06_9000004318_30039cztM0_level2_quad_clean.evt |
| Size (bytes) | 572,676,480 | 78,370,560 |
| Size | 546.1 MB | 74.7 MB |
| Events in quadrant A | 3,632,935 | 477,485 |
| Events in quadrant B | 5,817,177 | 473,517 |
| Events in quadrant C | 3,665,897 | 456,987 |
| Events in quadrant D | 3,734,513 | 458,533 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15280 | 2 |
| B | 0 | 22486 | 2 |
| C | 0 | 15283 | 2 |
| D | 0 | 15555 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7272 | 142 | 1.952695% |
| B | 7272 | 227 | 3.121562% |
| C | 7272 | 189 | 2.599010% |
| D | 7272 | 91 | 1.251375% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7807 | 7273 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7807 | 7273 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7807 | 7273 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7807 | 7273 | 18 | 18 | 0.23% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 23652 | 121.2 | 933 | 915 | 187.6 |
| A | 13 | 254 | 13617 | 67.71 | 933 | 915 | 187.6 |
| A | 3 | 137 | 9433 | 45.41 | 933 | 915 | 187.6 |
| B | 6 | 159 | 2034145 | 11419.61 | 916 | 892 | 178.0 |
| B | 0 | 190 | 96420 | 536.53 | 916 | 892 | 178.0 |
| B | 5 | 255 | 54884 | 303.24 | 916 | 892 | 178.0 |
| C | 14 | 238 | 152651 | 728.4 | 885 | 891 | 208.3 |
| C | 3 | 233 | 33138 | 154.78 | 885 | 891 | 208.3 |
| C | 14 | 254 | 17706 | 80.71 | 885 | 891 | 208.3 |
| D | 8 | 195 | 192404 | 861.59 | 898 | 877 | 222.3 |
| D | 2 | 250 | 59666 | 264.47 | 898 | 877 | 222.3 |
| D | 2 | 120 | 36512 | 160.31 | 898 | 877 | 222.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

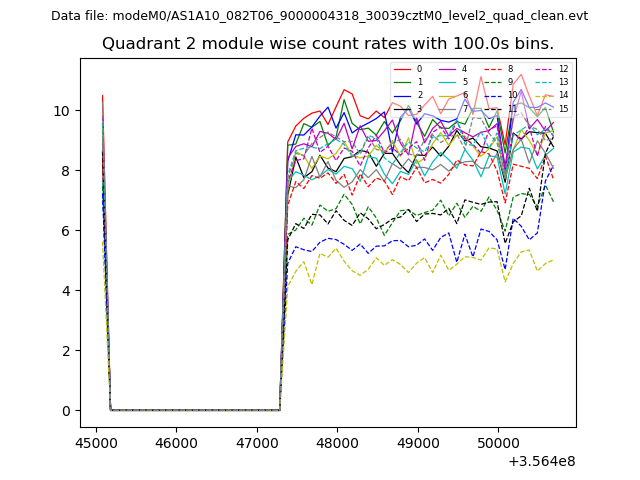

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

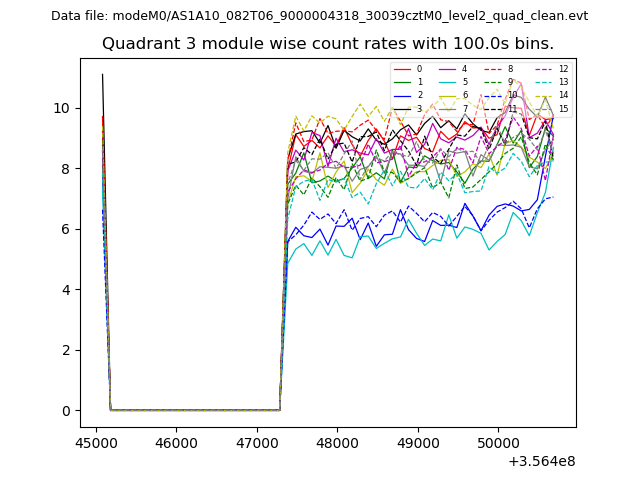

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

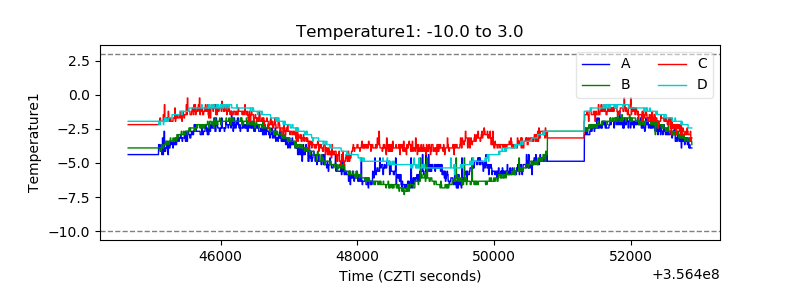

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

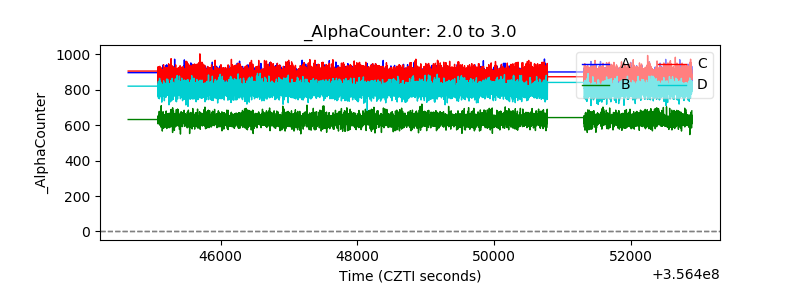

| Alpha Counter |  |
