| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_082T06_9000004318_30041cztM0_level2.evt | modeM0/AS1A10_082T06_9000004318_30041cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,769,600 | 88,378,560 |
| Size | 574.8 MB | 84.3 MB |
| Events in quadrant A | 3,704,156 | 549,118 |
| Events in quadrant B | 6,168,615 | 542,274 |
| Events in quadrant C | 3,801,163 | 527,320 |
| Events in quadrant D | 4,061,214 | 523,836 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15908 | 2 |
| B | 0 | 23871 | 2 |
| C | 0 | 15952 | 3 |
| D | 0 | 16907 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7672 | 110 | 1.433785% |
| B | 7673 | 249 | 3.245145% |
| C | 7672 | 144 | 1.876955% |
| D | 7672 | 96 | 1.251303% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

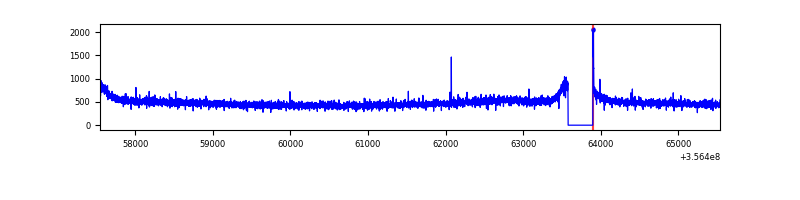

| A | 7992 | 7673 | 2 | 2 | 0.03% | 0.03% |  |

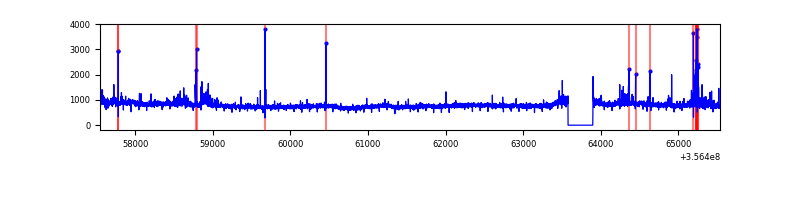

| B | 7993 | 7674 | 17 | 17 | 0.21% | 0.22% |  |
| C | 7992 | 7673 | 0 | 0 | 0.00% | 0.00% |  |

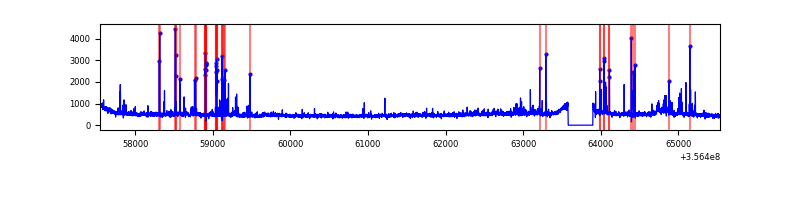

| D | 7992 | 7673 | 41 | 41 | 0.51% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14965 | 72.19 | 955 | 935 | 194.3 |
| A | 8 | 192 | 14318 | 68.86 | 955 | 935 | 194.3 |
| A | 3 | 137 | 9673 | 44.96 | 955 | 935 | 194.3 |
| B | 6 | 159 | 2215600 | 12249.01 | 937 | 913 | 180.8 |
| B | 0 | 190 | 122402 | 671.93 | 937 | 913 | 180.8 |
| B | 5 | 255 | 99484 | 545.18 | 937 | 913 | 180.8 |
| C | 14 | 238 | 160585 | 746.87 | 909 | 913 | 213.8 |
| C | 3 | 233 | 50975 | 234.17 | 909 | 913 | 213.8 |
| C | 14 | 254 | 23958 | 107.79 | 909 | 913 | 213.8 |
| D | 8 | 195 | 232949 | 998.52 | 915 | 891 | 232.4 |
| D | 13 | 138 | 152914 | 654.14 | 915 | 891 | 232.4 |
| D | 7 | 238 | 68834 | 292.35 | 915 | 891 | 232.4 |

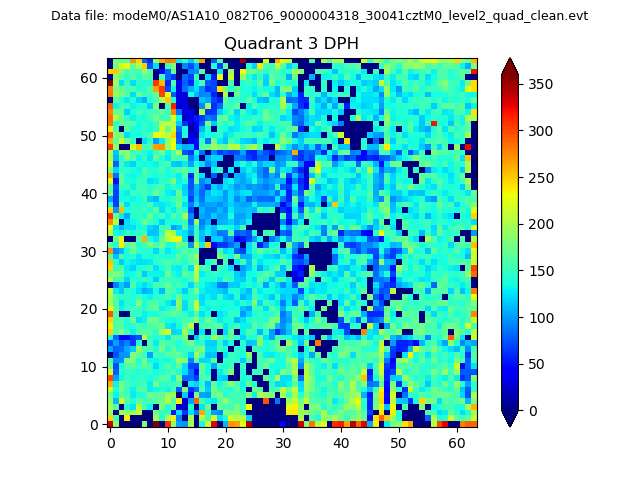

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

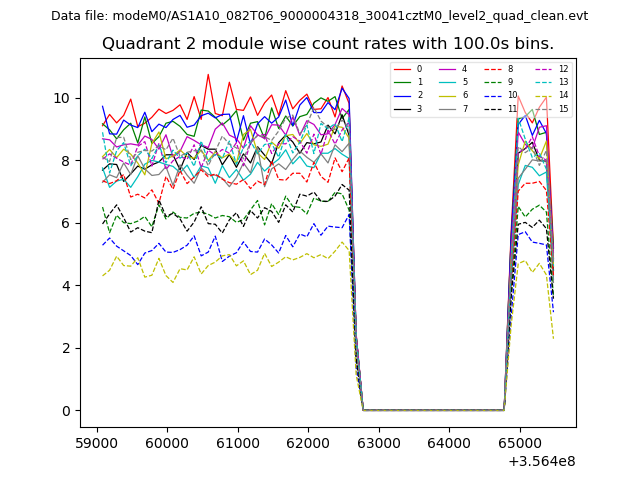

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

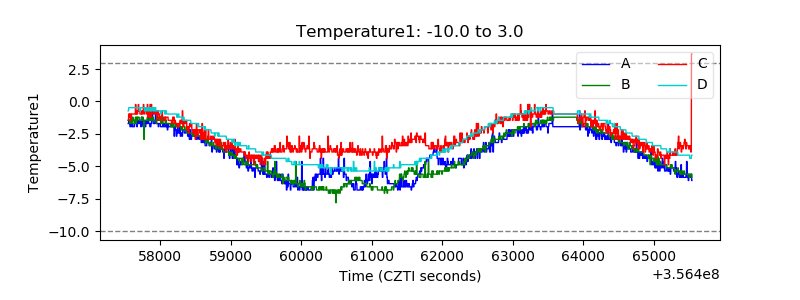

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

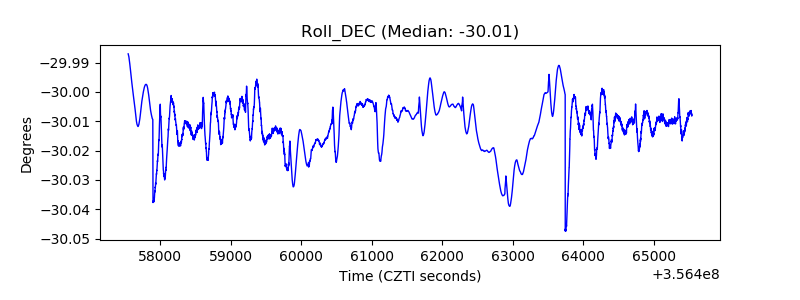

| _Roll_DEC |  |
| _Roll_RA |  |

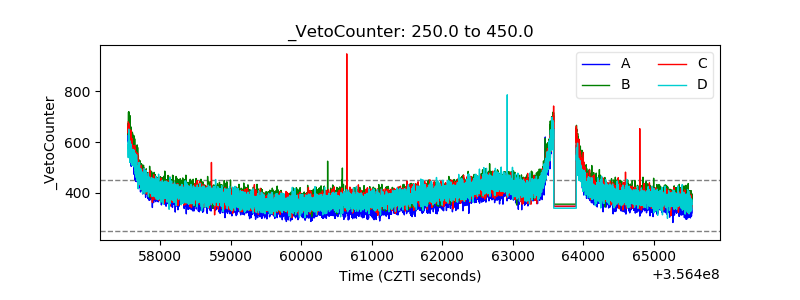

| Veto Counter |  |
