| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T06_9000004324_30074cztM0_level2.evt | modeM0/AS1A10_071T06_9000004324_30074cztM0_level2_quad_clean.evt |
| Size (bytes) | 742,809,600 | 103,538,880 |
| Size | 708.4 MB | 98.7 MB |
| Events in quadrant A | 4,376,792 | 648,877 |
| Events in quadrant B | 6,947,450 | 644,901 |
| Events in quadrant C | 4,533,802 | 621,100 |
| Events in quadrant D | 6,022,342 | 588,858 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 184 | 0 |
| B | 0 | 184 | 0 |
| C | 0 | 184 | 0 |
| D | 0 | 184 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18886 | 2 |
| B | 0 | 27472 | 2 |
| C | 0 | 19291 | 2 |
| D | 0 | 24045 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9108 | 76 | 0.834431% |
| B | 9109 | 140 | 1.536941% |
| C | 9109 | 162 | 1.778461% |
| D | 9109 | 490 | 5.379295% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10578 | 9110 | 1 | 1 | 0.01% | 0.01% |  |
| B | 10579 | 9111 | 1 | 1 | 0.01% | 0.01% |  |
| C | 10579 | 9111 | 10 | 10 | 0.09% | 0.11% |  |
| D | 10579 | 9111 | 412 | 412 | 3.89% | 4.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 29367 | 123.94 | 1126 | 1103 | 228.0 |
| A | 13 | 254 | 16187 | 66.14 | 1126 | 1103 | 228.0 |
| A | 3 | 137 | 11815 | 46.97 | 1126 | 1103 | 228.0 |
| B | 6 | 159 | 2558571 | 11836.94 | 1110 | 1080 | 216.1 |
| B | 12 | 111 | 27783 | 123.59 | 1110 | 1080 | 216.1 |
| B | 11 | 111 | 25343 | 112.3 | 1110 | 1080 | 216.1 |
| C | 14 | 238 | 171261 | 670.05 | 1076 | 1081 | 254.0 |
| C | 3 | 233 | 104032 | 405.35 | 1076 | 1081 | 254.0 |
| C | 10 | 20 | 47107 | 181.22 | 1076 | 1081 | 254.0 |
| D | 13 | 104 | 1669637 | 6631.36 | 1061 | 1037 | 251.6 |
| D | 8 | 195 | 182597 | 721.55 | 1061 | 1037 | 251.6 |
| D | 2 | 250 | 49458 | 192.43 | 1061 | 1037 | 251.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

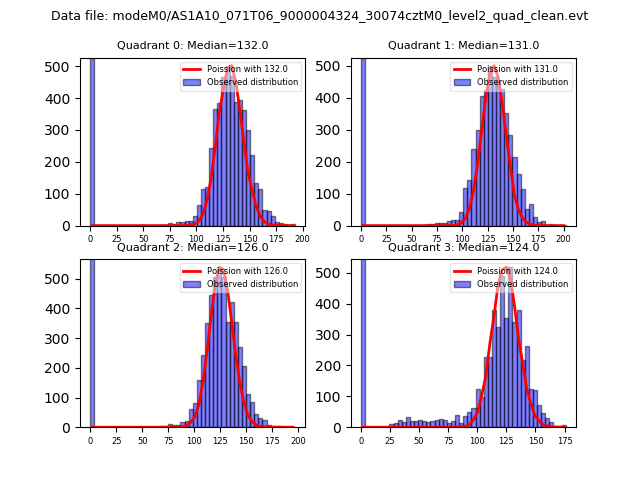

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

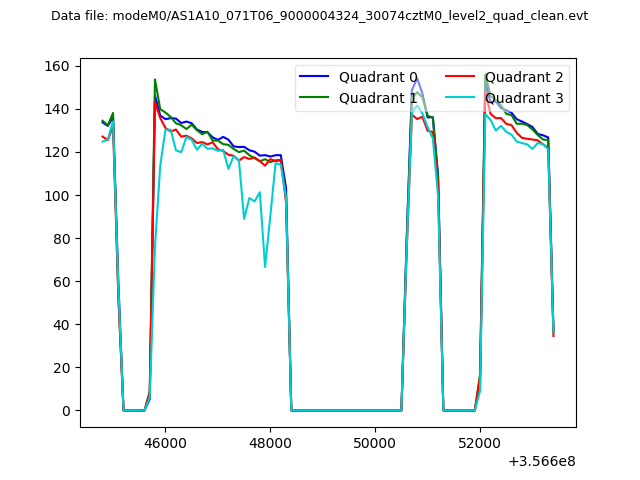

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

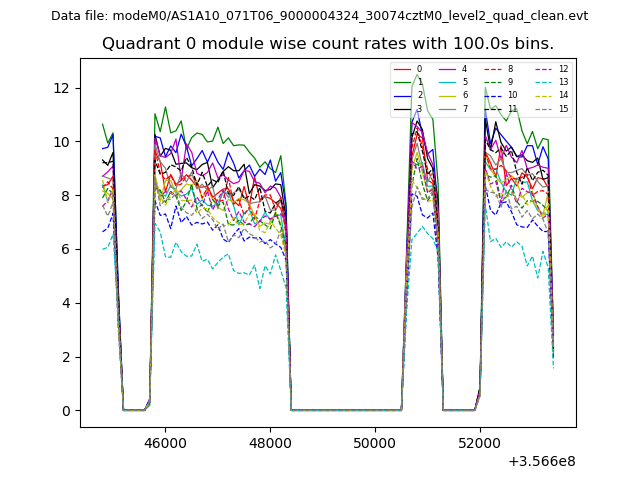

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

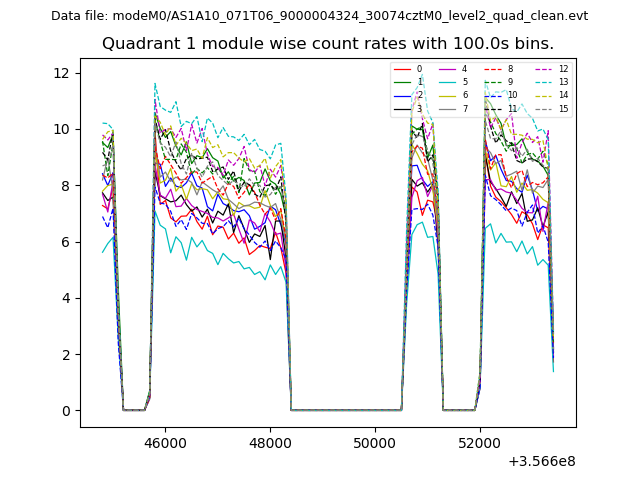

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

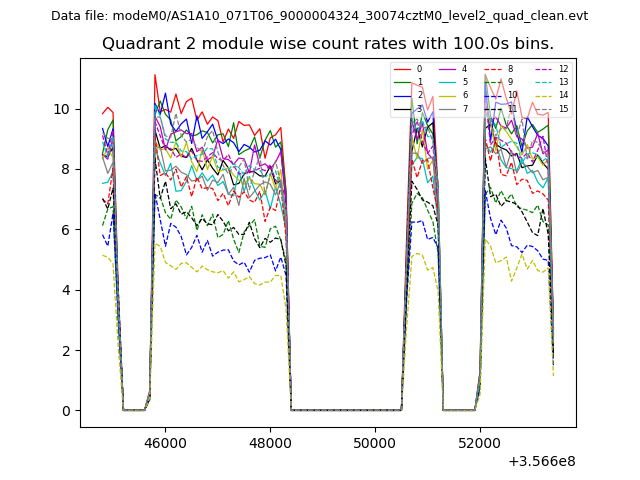

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

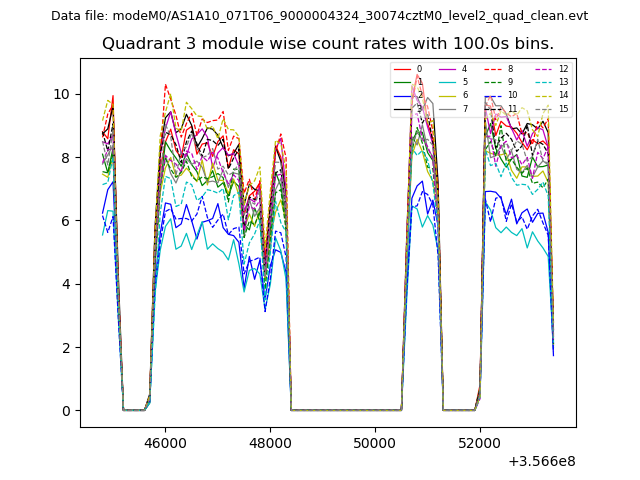

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

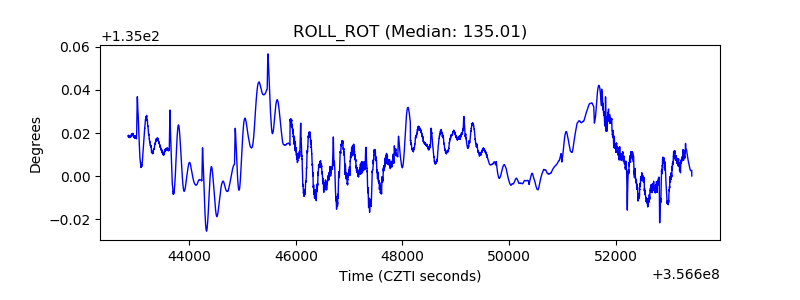

| _ROLL_ROT |  |

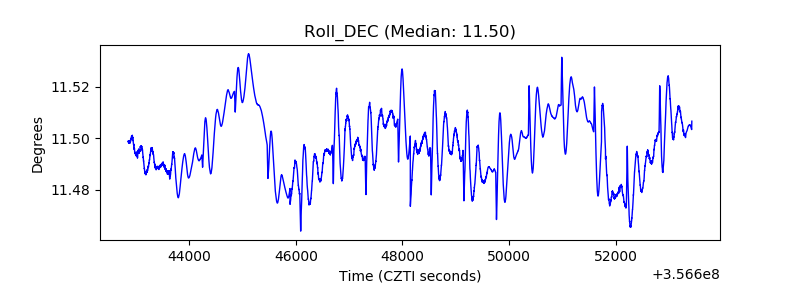

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
