| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_050T05_9000004330_30088cztM0_level2.evt | modeM0/AS1A10_050T05_9000004330_30088cztM0_level2_quad_clean.evt |
| Size (bytes) | 580,354,560 | 89,248,320 |
| Size | 553.5 MB | 85.1 MB |
| Events in quadrant A | 3,238,058 | 580,998 |
| Events in quadrant B | 5,851,710 | 566,530 |
| Events in quadrant C | 3,312,455 | 556,584 |
| Events in quadrant D | 4,717,872 | 529,006 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13867 | 2 |
| B | 0 | 22232 | 2 |
| C | 0 | 13937 | 2 |
| D | 0 | 18541 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6729 | 38 | 0.564720% |
| B | 6729 | 367 | 5.454005% |
| C | 6729 | 90 | 1.337494% |
| D | 6729 | 478 | 7.103582% |

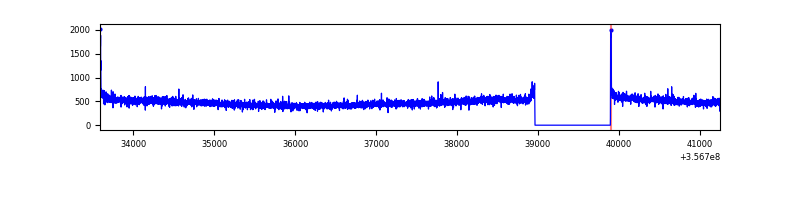

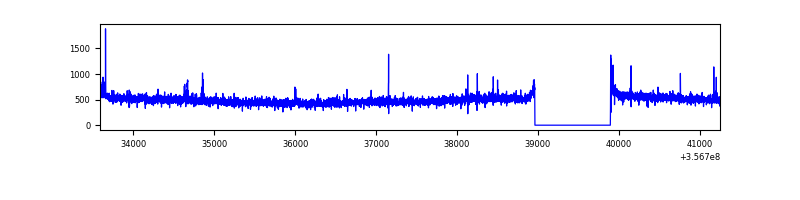

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7664 | 6730 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7664 | 6730 | 173 | 173 | 2.26% | 2.57% |  |
| C | 7664 | 6730 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7664 | 6730 | 376 | 376 | 4.91% | 5.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 26084 | 150.73 | 832 | 813 | 167.7 |
| A | 13 | 254 | 12493 | 69.67 | 832 | 813 | 167.7 |
| A | 3 | 137 | 8355 | 44.98 | 832 | 813 | 167.7 |
| B | 6 | 159 | 1907103 | 11937.96 | 812 | 790 | 159.7 |
| B | 0 | 229 | 576781 | 3607.04 | 812 | 790 | 159.7 |
| B | 0 | 190 | 154284 | 961.23 | 812 | 790 | 159.7 |
| C | 14 | 238 | 137929 | 729.6 | 798 | 802 | 187.9 |
| C | 3 | 233 | 23480 | 120.66 | 798 | 802 | 187.9 |
| C | 14 | 254 | 17411 | 88.37 | 798 | 802 | 187.9 |
| D | 13 | 104 | 1039199 | 5249.92 | 781 | 760 | 197.8 |
| D | 7 | 223 | 182167 | 917.12 | 781 | 760 | 197.8 |
| D | 13 | 138 | 176194 | 886.92 | 781 | 760 | 197.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

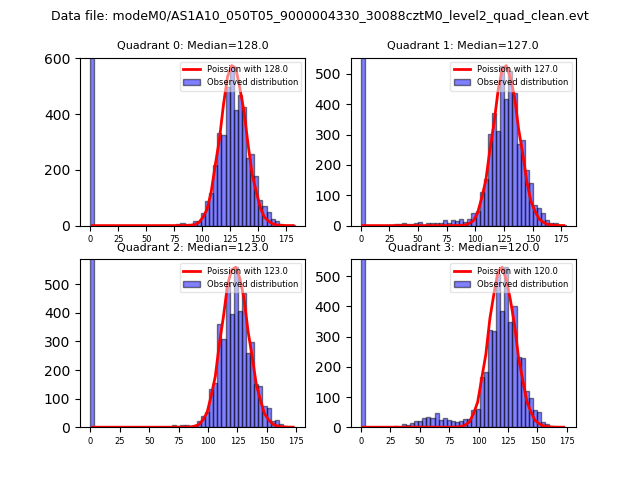

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

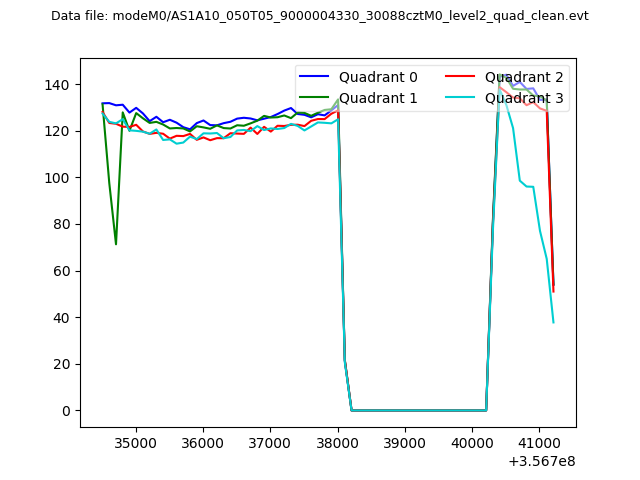

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

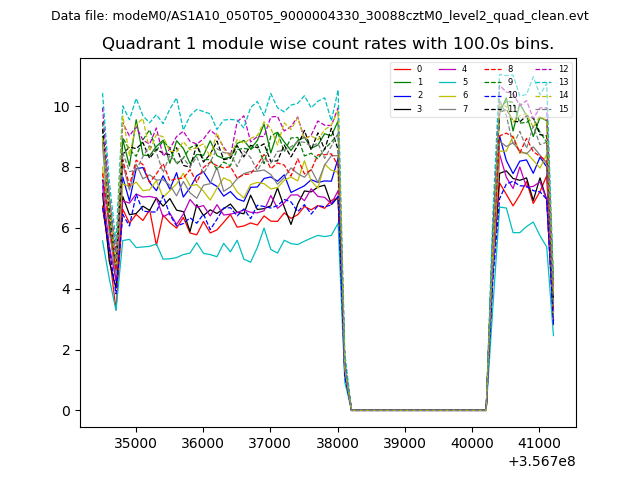

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

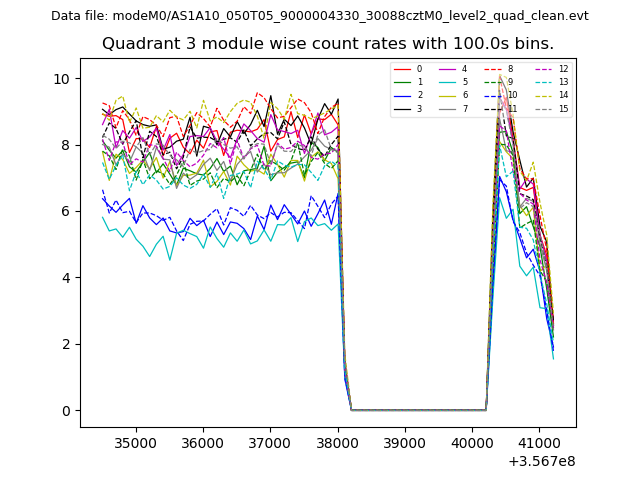

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

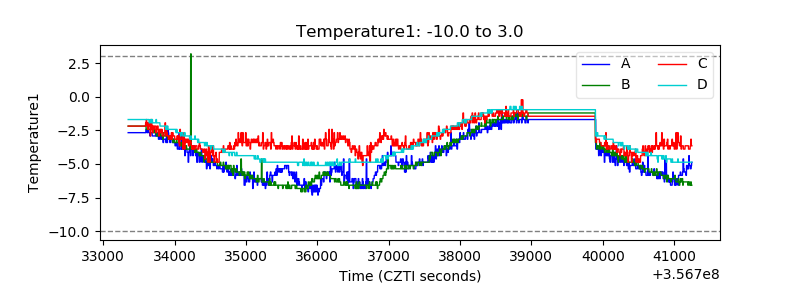

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

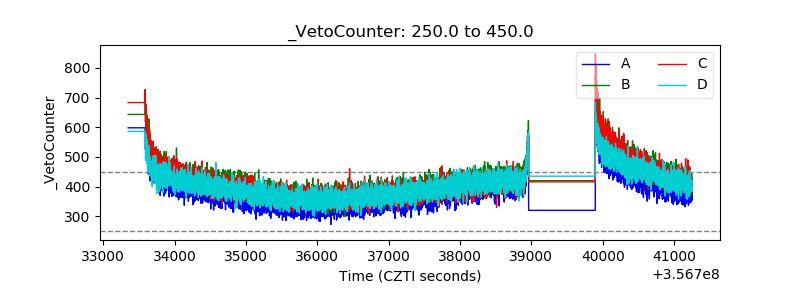

| Veto Counter |  |
