| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_050T05_9000004330_30093cztM0_level2.evt | modeM0/AS1A10_050T05_9000004330_30093cztM0_level2_quad_clean.evt |
| Size (bytes) | 921,150,720 | 165,735,360 |
| Size | 878.5 MB | 158.1 MB |
| Events in quadrant A | 5,740,225 | 1,081,243 |
| Events in quadrant B | 9,627,384 | 1,079,147 |
| Events in quadrant C | 5,881,591 | 1,058,321 |
| Events in quadrant D | 5,917,191 | 1,051,446 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23572 | 2 |
| B | 0 | 35782 | 2 |
| C | 0 | 23935 | 2 |
| D | 0 | 24160 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10828 | 59 | 0.544884% |
| B | 10829 | 409 | 3.776895% |
| C | 10829 | 297 | 2.742636% |
| D | 10829 | 46 | 0.424785% |

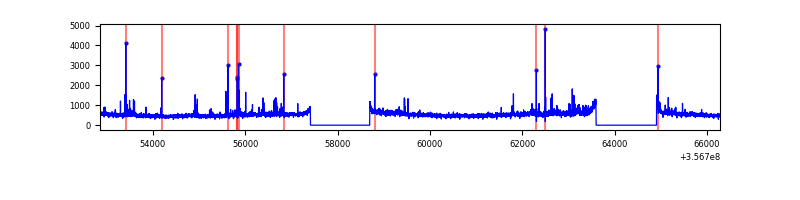

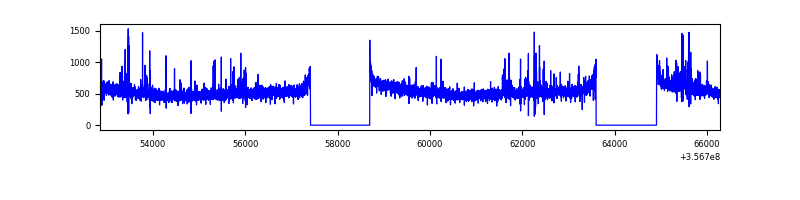

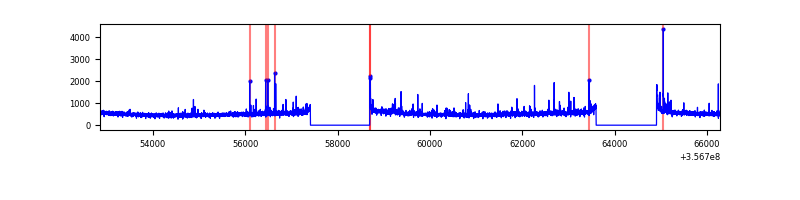

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13423 | 10830 | 8 | 8 | 0.06% | 0.07% |  |
| B | 13424 | 10831 | 192 | 192 | 1.43% | 1.77% |  |
| C | 13424 | 10831 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13424 | 10831 | 11 | 11 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 202164 | 714.32 | 1431 | 1406 | 281.0 |
| A | 8 | 192 | 23116 | 77.25 | 1431 | 1406 | 281.0 |
| A | 13 | 254 | 20295 | 67.21 | 1431 | 1406 | 281.0 |
| B | 6 | 159 | 3098248 | 11881.56 | 1400 | 1367 | 260.6 |
| B | 0 | 229 | 864019 | 3309.67 | 1400 | 1367 | 260.6 |
| B | 0 | 190 | 150493 | 572.14 | 1400 | 1367 | 260.6 |
| C | 14 | 238 | 306361 | 951.65 | 1386 | 1401 | 320.5 |
| C | 14 | 254 | 116568 | 359.39 | 1386 | 1401 | 320.5 |
| C | 3 | 233 | 26271 | 77.61 | 1386 | 1401 | 320.5 |
| D | 8 | 195 | 205724 | 622.04 | 1401 | 1376 | 328.5 |
| D | 1 | 52 | 118399 | 356.22 | 1401 | 1376 | 328.5 |
| D | 7 | 238 | 68466 | 204.22 | 1401 | 1376 | 328.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

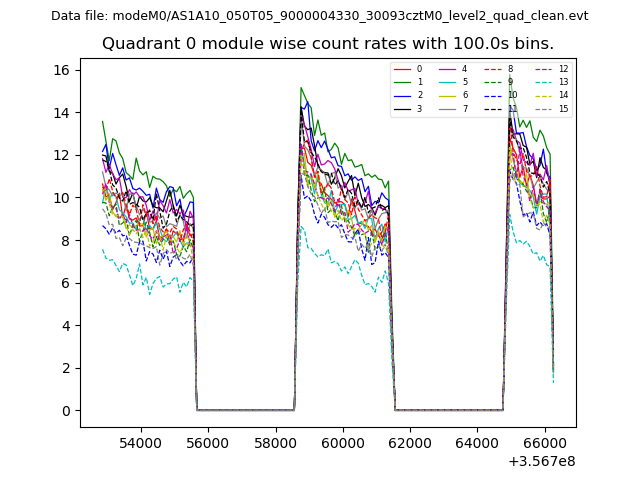

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

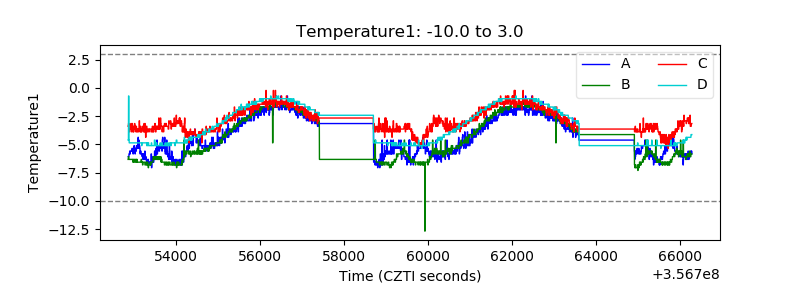

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

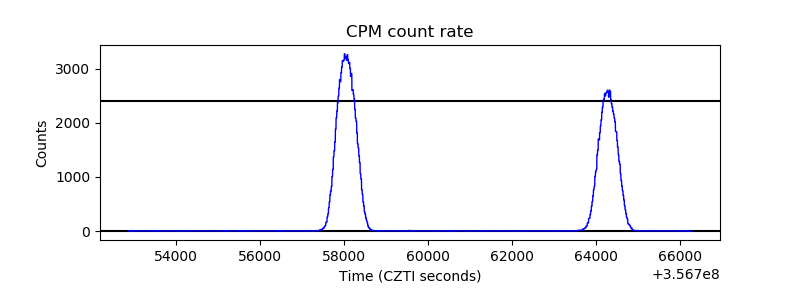

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

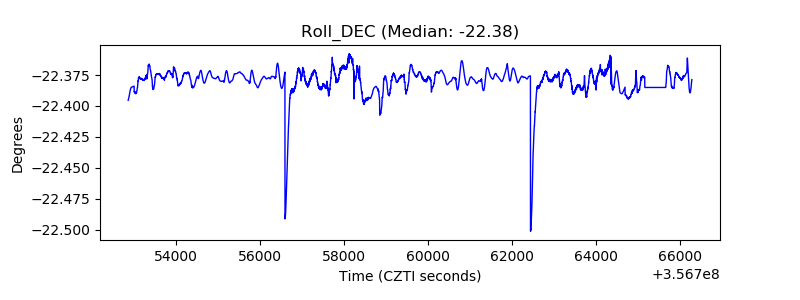

| _Roll_DEC |  |

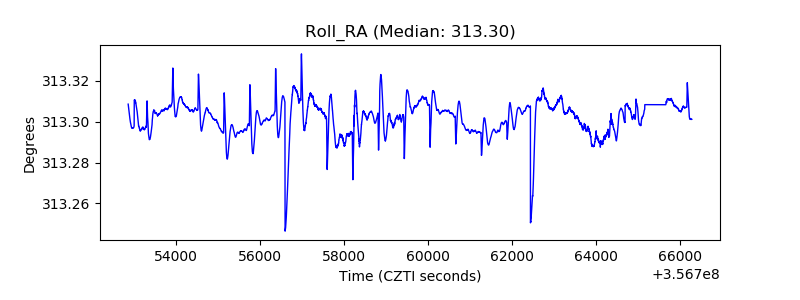

| _Roll_RA |  |
| Veto Counter |  |
