| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_050T05_9000004330_30094cztM0_level2.evt | modeM0/AS1A10_050T05_9000004330_30094cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,088,640 | 107,323,200 |
| Size | 541.8 MB | 102.4 MB |
| Events in quadrant A | 3,648,287 | 712,738 |
| Events in quadrant B | 5,585,110 | 711,098 |
| Events in quadrant C | 3,717,508 | 680,048 |
| Events in quadrant D | 3,800,656 | 679,957 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14733 | 2 |
| B | 0 | 20900 | 2 |
| C | 0 | 15037 | 3 |
| D | 0 | 15188 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6692 | 44 | 0.657501% |
| B | 6692 | 101 | 1.509265% |
| C | 6691 | 260 | 3.885817% |
| D | 6691 | 110 | 1.643999% |

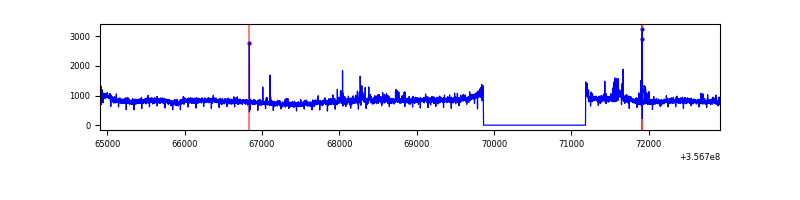

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8012 | 6693 | 3 | 3 | 0.04% | 0.04% |  |
| B | 8012 | 6693 | 3 | 3 | 0.04% | 0.04% |  |
| C | 8011 | 6692 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8011 | 6692 | 82 | 82 | 1.02% | 1.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 142406 | 796.1 | 902 | 889 | 177.8 |
| A | 8 | 192 | 23121 | 125.07 | 902 | 889 | 177.8 |
| A | 13 | 254 | 12238 | 63.84 | 902 | 889 | 177.8 |
| B | 6 | 159 | 1899427 | 11254.92 | 888 | 866 | 168.7 |
| B | 0 | 229 | 98839 | 580.8 | 888 | 866 | 168.7 |
| B | 0 | 190 | 61527 | 359.61 | 888 | 866 | 168.7 |
| C | 14 | 238 | 213795 | 1064.4 | 861 | 868 | 200.0 |
| C | 14 | 254 | 103541 | 513.25 | 861 | 868 | 200.0 |
| C | 3 | 233 | 19516 | 93.22 | 861 | 868 | 200.0 |
| D | 7 | 238 | 157334 | 755.23 | 872 | 854 | 207.2 |
| D | 8 | 195 | 142186 | 682.12 | 872 | 854 | 207.2 |
| D | 13 | 138 | 78461 | 374.56 | 872 | 854 | 207.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

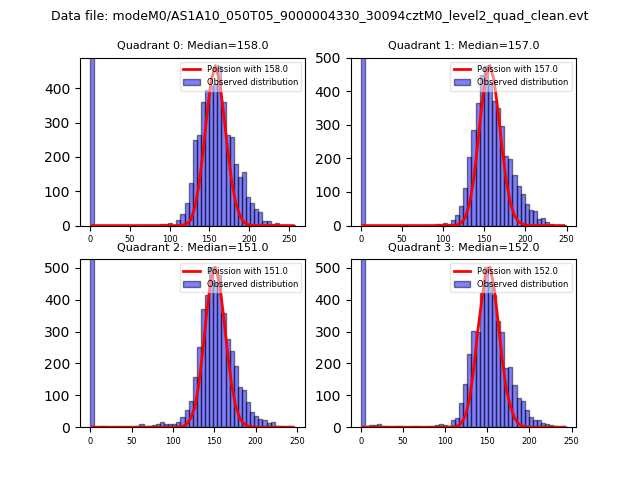

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

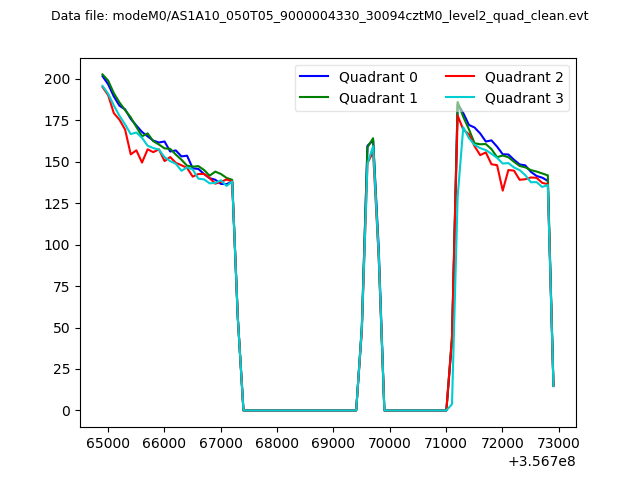

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

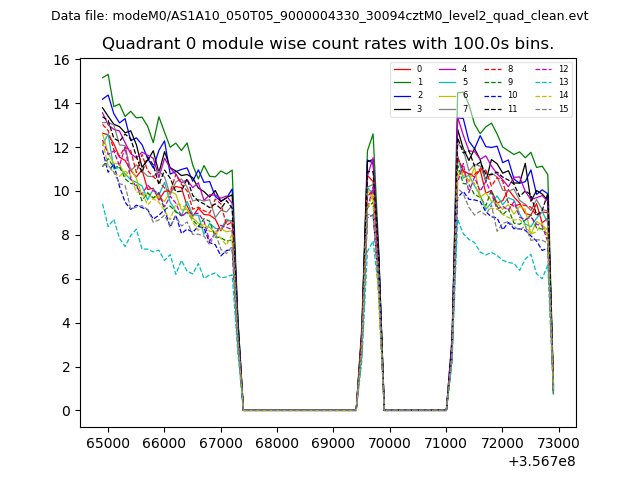

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

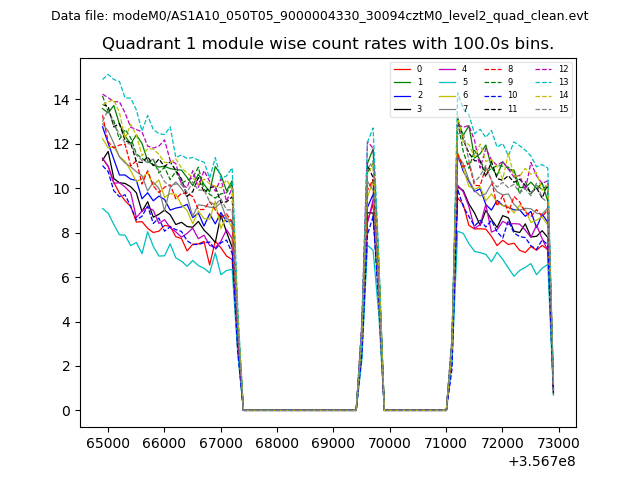

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

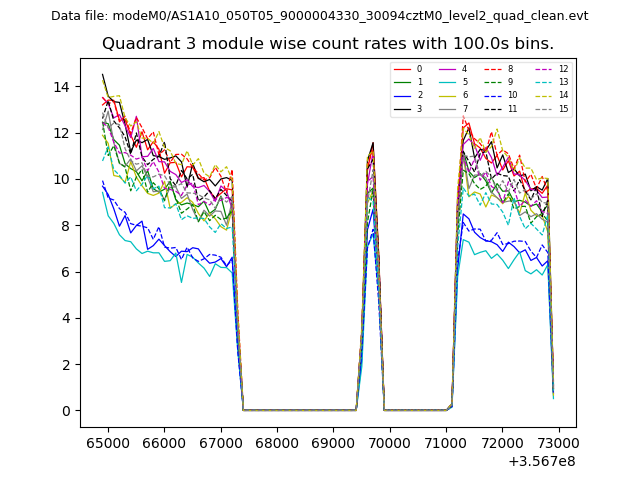

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

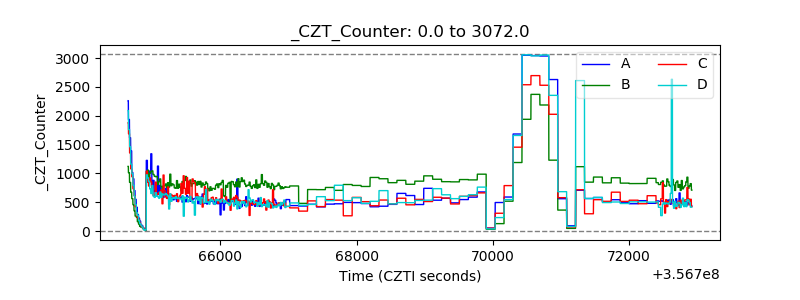

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

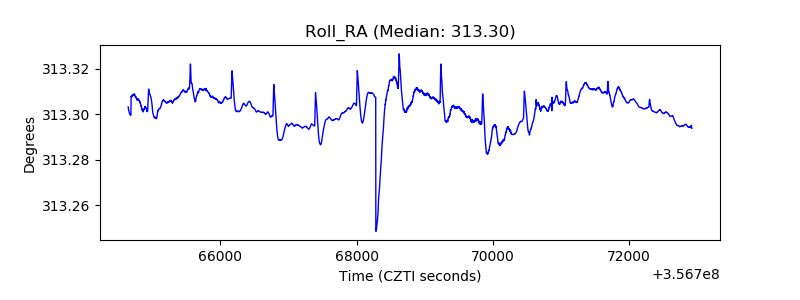

| _Roll_RA |  |
| Veto Counter |  |
