| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T10_9000004328_30078cztM0_level2.evt | modeM0/AS1A10_071T10_9000004328_30078cztM0_level2_quad_clean.evt |
| Size (bytes) | 981,578,880 | 133,591,680 |
| Size | 936.1 MB | 127.4 MB |
| Events in quadrant A | 5,598,620 | 861,545 |
| Events in quadrant B | 8,640,077 | 874,631 |
| Events in quadrant C | 6,360,928 | 816,152 |
| Events in quadrant D | 8,391,274 | 737,392 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22970 | 3 |
| B | 0 | 33090 | 2 |
| C | 0 | 25756 | 2 |
| D | 0 | 32253 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 224 | 0 |
| B | 0 | 224 | 0 |
| C | 0 | 224 | 0 |
| D | 0 | 224 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10911 | 52 | 0.476583% |
| B | 10911 | 118 | 1.081477% |
| C | 10911 | 138 | 1.264779% |
| D | 10912 | 1092 | 10.007331% |

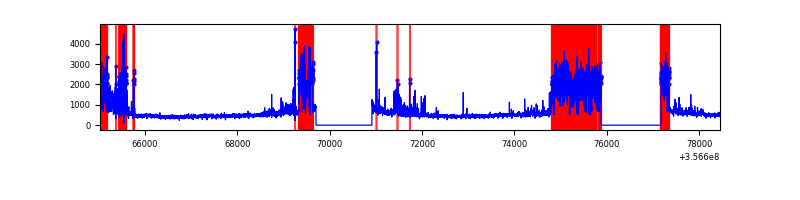

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13421 | 10913 | 3 | 3 | 0.02% | 0.03% |  |
| B | 13421 | 10913 | 3 | 3 | 0.02% | 0.03% |  |
| C | 13421 | 10913 | 12 | 12 | 0.09% | 0.11% |  |
| D | 13422 | 10914 | 833 | 833 | 6.21% | 7.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 24891 | 82.17 | 1445 | 1422 | 285.6 |
| A | 13 | 254 | 19941 | 64.84 | 1445 | 1422 | 285.6 |
| A | 3 | 137 | 13995 | 44.02 | 1445 | 1422 | 285.6 |
| B | 6 | 159 | 2992815 | 11083.62 | 1432 | 1395 | 269.9 |
| B | 12 | 111 | 33419 | 118.65 | 1432 | 1395 | 269.9 |
| B | 11 | 111 | 30587 | 108.16 | 1432 | 1395 | 269.9 |
| C | 3 | 233 | 690972 | 2181.83 | 1366 | 1378 | 316.1 |
| C | 14 | 238 | 228928 | 719.95 | 1366 | 1378 | 316.1 |
| C | 10 | 22 | 82637 | 257.1 | 1366 | 1378 | 316.1 |
| D | 13 | 104 | 2602742 | 8412.59 | 1316 | 1292 | 309.2 |
| D | 8 | 195 | 294031 | 946.66 | 1316 | 1292 | 309.2 |
| D | 1 | 52 | 286096 | 921.0 | 1316 | 1292 | 309.2 |

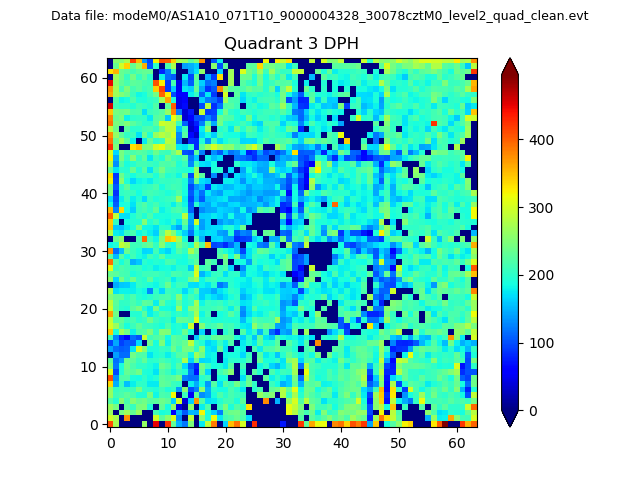

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

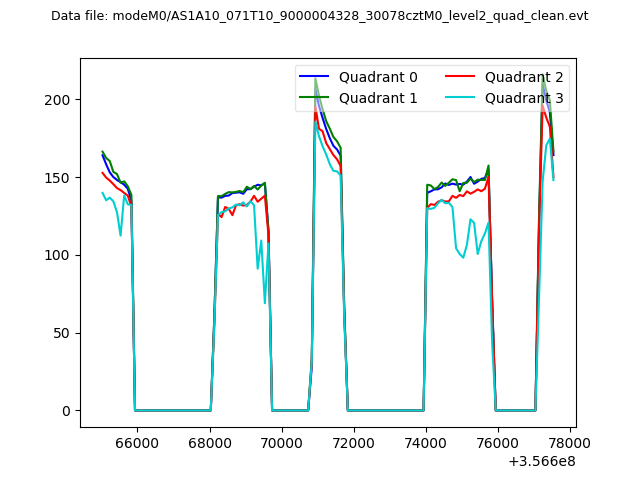

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

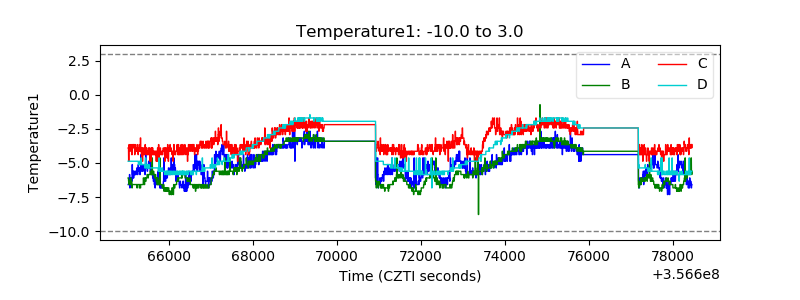

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

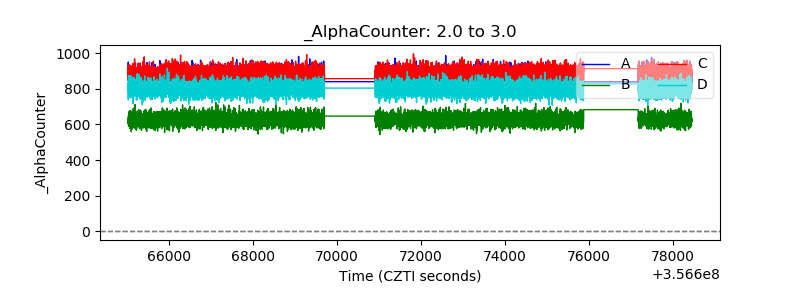

| Alpha Counter |  |
| _CPM_Rate |  |

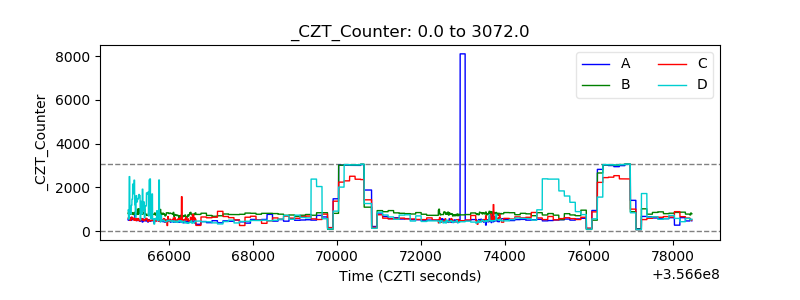

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

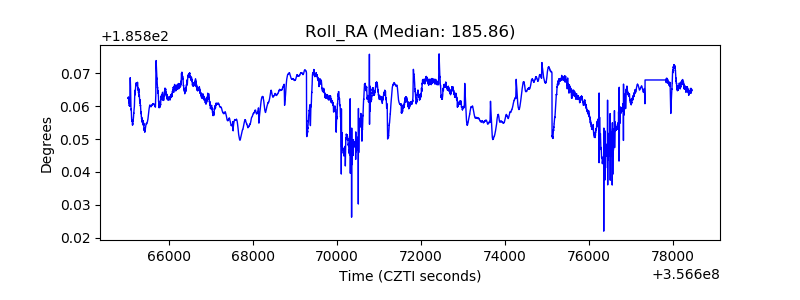

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

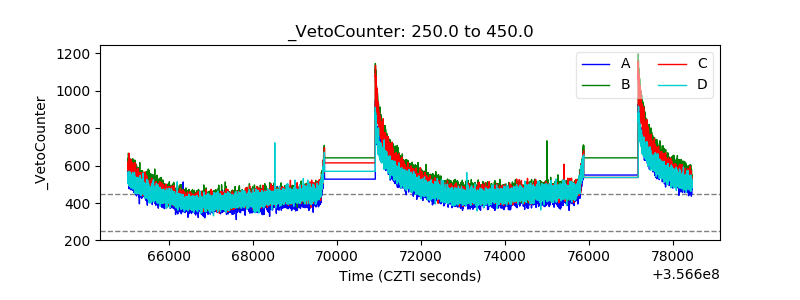

| Veto Counter |  |
