| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T10_9000004328_30082cztM0_level2.evt | modeM0/AS1A10_071T10_9000004328_30082cztM0_level2_quad_clean.evt |
| Size (bytes) | 637,139,520 | 105,442,560 |
| Size | 607.6 MB | 100.6 MB |
| Events in quadrant A | 4,081,534 | 677,851 |
| Events in quadrant B | 6,334,254 | 672,133 |
| Events in quadrant C | 4,122,068 | 644,566 |
| Events in quadrant D | 4,214,362 | 640,790 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16887 | 2 |
| B | 0 | 24583 | 2 |
| C | 0 | 16937 | 2 |
| D | 0 | 17361 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8029 | 200 | 2.490970% |
| B | 8030 | 312 | 3.885430% |
| C | 8030 | 223 | 2.777086% |
| D | 8030 | 150 | 1.867995% |

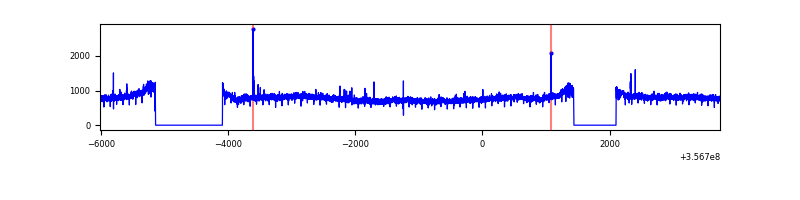

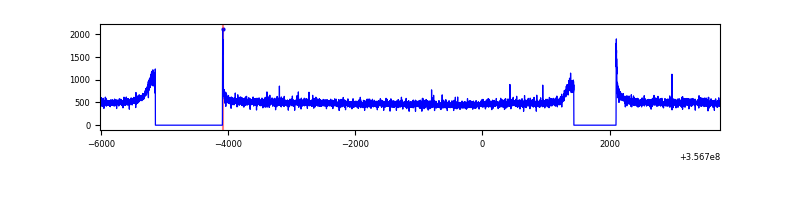

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9749 | 8031 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9750 | 8032 | 2 | 2 | 0.02% | 0.02% |  |
| C | 9750 | 8032 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9750 | 8032 | 20 | 20 | 0.21% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 26322 | 119.29 | 1051 | 1028 | 212.0 |
| A | 13 | 254 | 13423 | 58.46 | 1051 | 1028 | 212.0 |
| A | 3 | 137 | 10931 | 46.7 | 1051 | 1028 | 212.0 |
| B | 6 | 159 | 2246049 | 11160.13 | 1030 | 1004 | 201.2 |
| B | 12 | 111 | 25271 | 120.63 | 1030 | 1004 | 201.2 |
| B | 11 | 111 | 23870 | 113.66 | 1030 | 1004 | 201.2 |
| C | 14 | 238 | 164677 | 694.83 | 999 | 1006 | 235.6 |
| C | 3 | 233 | 38382 | 158.67 | 999 | 1006 | 235.6 |
| C | 2 | 114 | 18829 | 75.66 | 999 | 1006 | 235.6 |
| D | 8 | 195 | 151745 | 627.64 | 1006 | 981 | 240.2 |
| D | 2 | 250 | 75724 | 311.16 | 1006 | 981 | 240.2 |
| D | 13 | 104 | 58798 | 240.69 | 1006 | 981 | 240.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

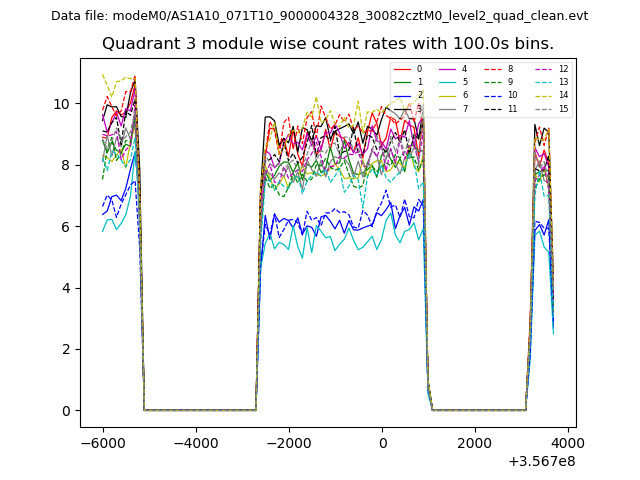

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

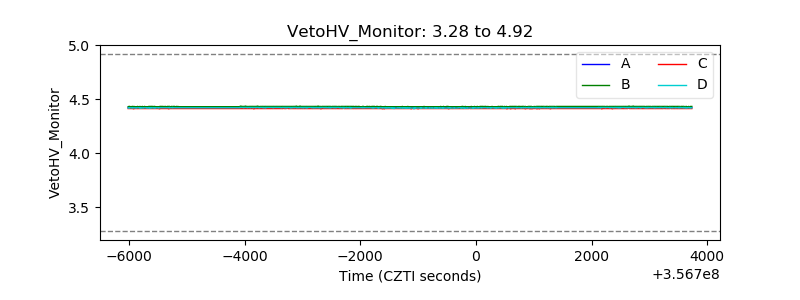

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

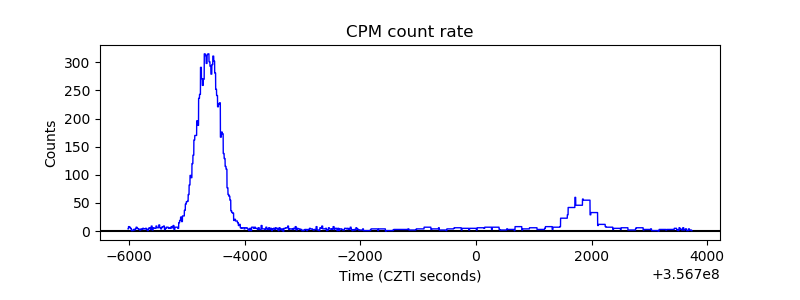

| _CPM_Rate |  |

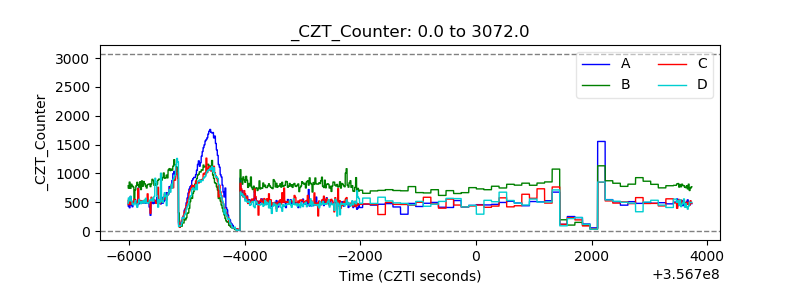

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

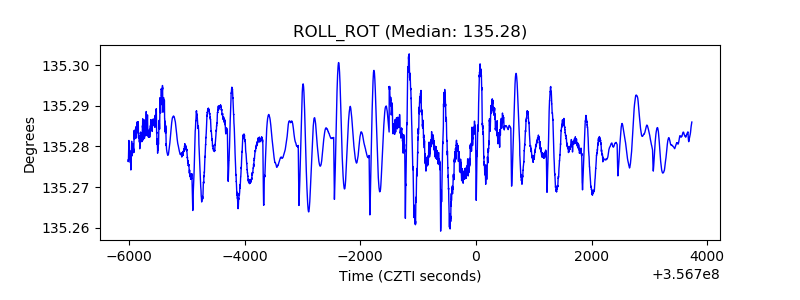

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

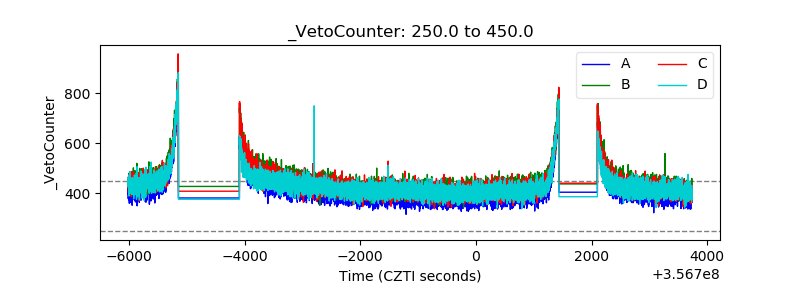

| Veto Counter |  |
