| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T01_9000004332_30098cztM0_level2.evt | modeM0/AS1C05_019T01_9000004332_30098cztM0_level2_quad_clean.evt |
| Size (bytes) | 623,603,520 | 133,557,120 |
| Size | 594.7 MB | 127.4 MB |
| Events in quadrant A | 3,569,250 | 915,639 |
| Events in quadrant B | 5,621,818 | 915,386 |
| Events in quadrant C | 3,843,451 | 872,580 |
| Events in quadrant D | 5,362,508 | 838,539 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15416 | 1 |
| B | 0 | 22143 | 1 |
| C | 0 | 15862 | 1 |
| D | 0 | 20736 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7220 | 112 | 1.551247% |
| B | 7221 | 197 | 2.728154% |
| C | 7221 | 227 | 3.143609% |
| D | 7221 | 581 | 8.045977% |

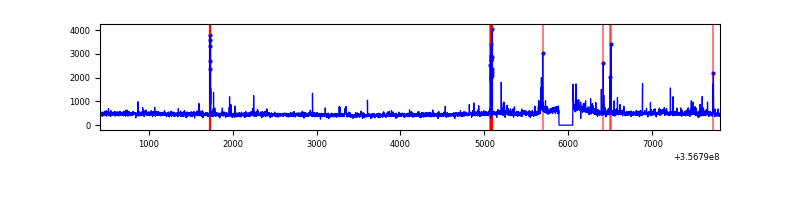

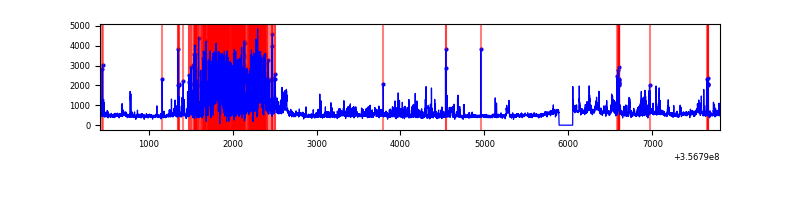

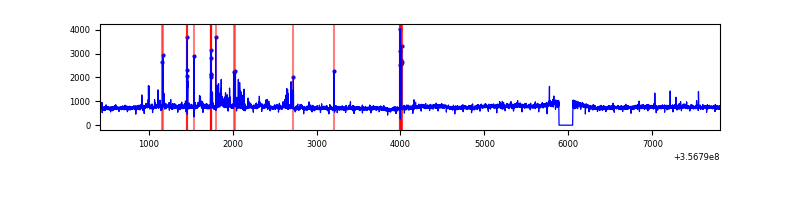

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7385 | 7221 | 24 | 24 | 0.32% | 0.33% |  |
| B | 7386 | 7222 | 24 | 24 | 0.32% | 0.33% |  |
| C | 7386 | 7222 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7386 | 7222 | 388 | 388 | 5.25% | 5.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 256465 | 1490.95 | 855 | 836 | 171.5 |
| A | 13 | 254 | 13890 | 76.14 | 855 | 836 | 171.5 |
| A | 8 | 192 | 10475 | 56.22 | 855 | 836 | 171.5 |
| B | 6 | 159 | 2045107 | 12629.33 | 843 | 820 | 161.9 |
| B | 0 | 229 | 138636 | 851.41 | 843 | 820 | 161.9 |
| B | 0 | 190 | 85401 | 522.53 | 843 | 820 | 161.9 |
| C | 3 | 233 | 436690 | 2314.31 | 810 | 814 | 188.3 |
| C | 14 | 238 | 163352 | 863.01 | 810 | 814 | 188.3 |
| C | 14 | 254 | 45542 | 237.49 | 810 | 814 | 188.3 |
| D | 12 | 2 | 1256953 | 6491.19 | 798 | 776 | 193.5 |
| D | 1 | 52 | 627566 | 3238.88 | 798 | 776 | 193.5 |
| D | 13 | 104 | 184735 | 950.59 | 798 | 776 | 193.5 |

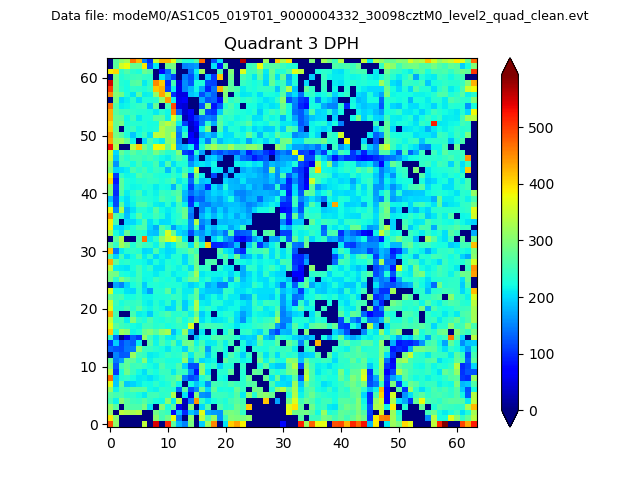

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

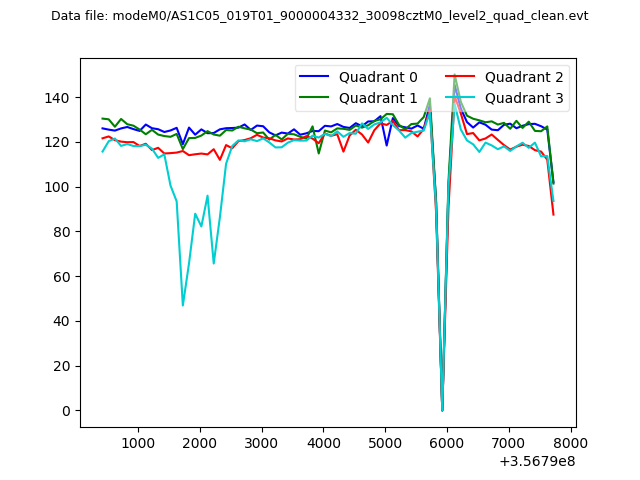

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

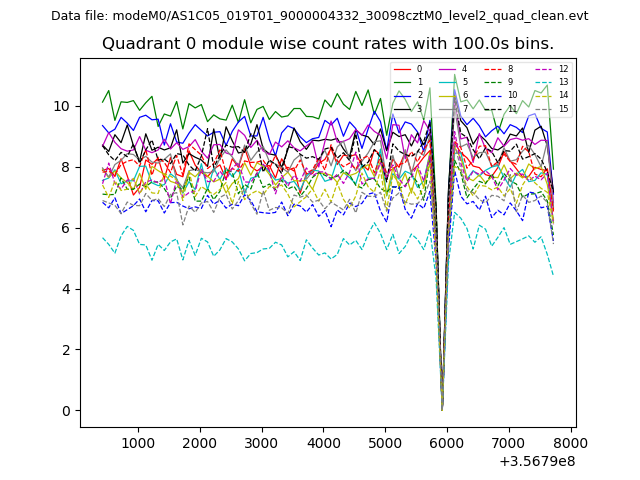

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

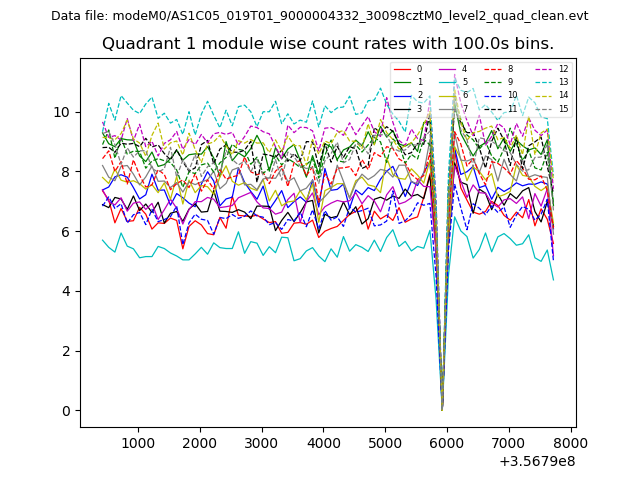

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

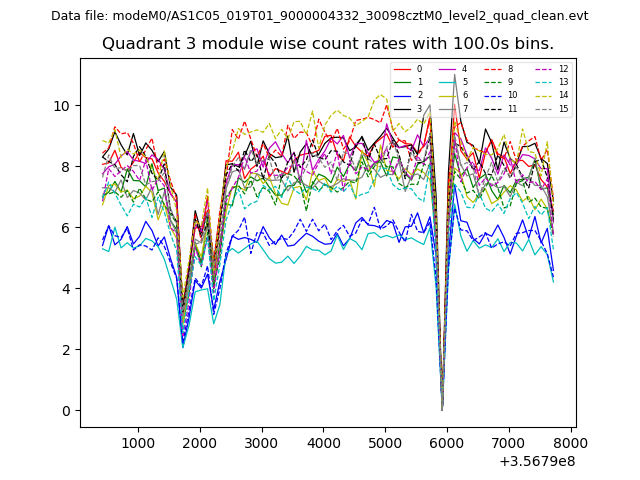

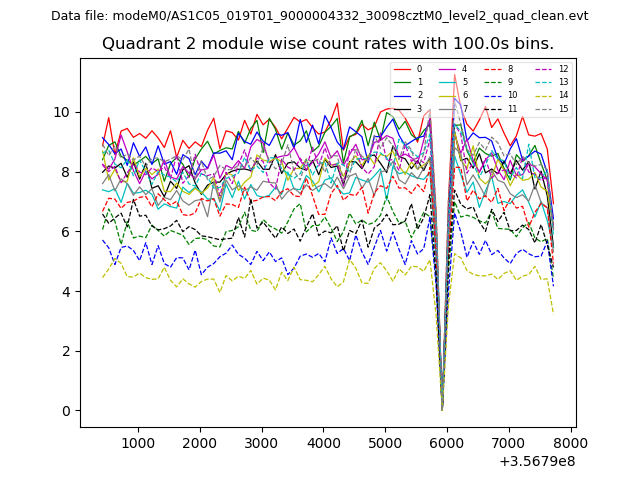

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

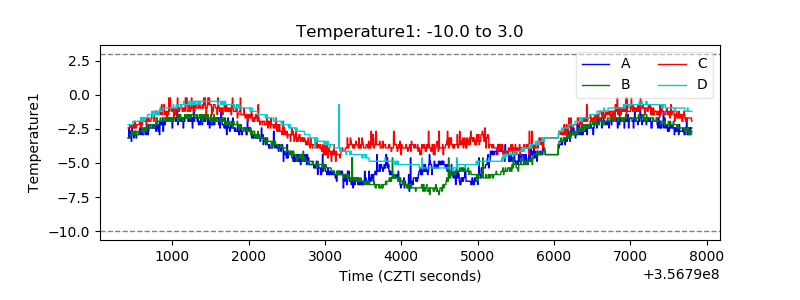

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

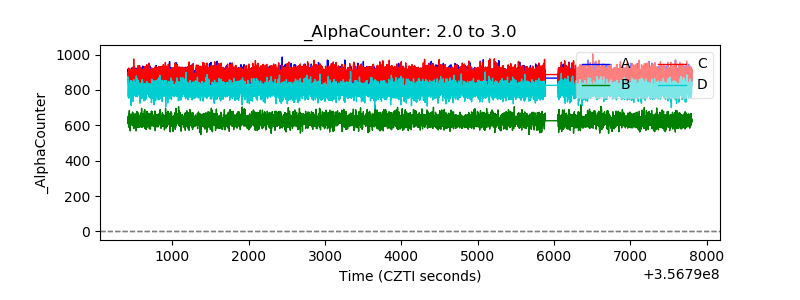

| Alpha Counter |  |
| _CPM_Rate |  |

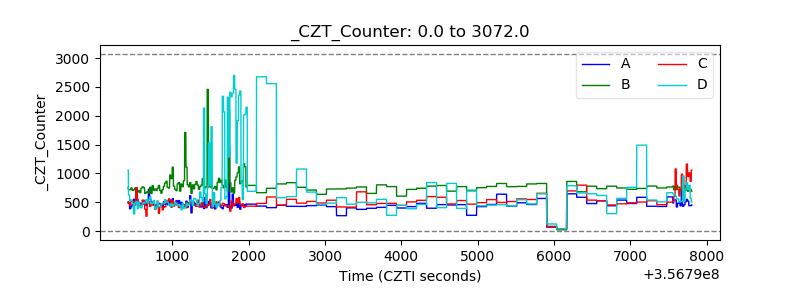

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

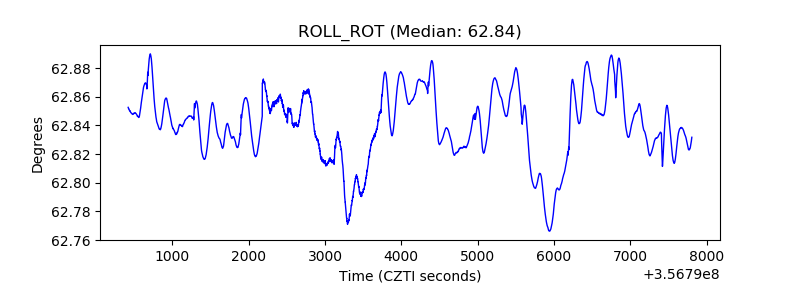

| _ROLL_ROT |  |

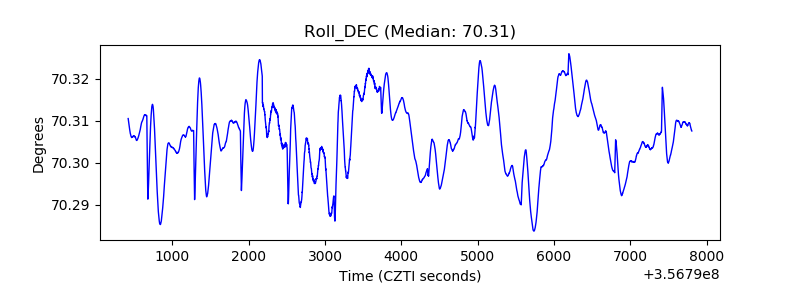

| _Roll_DEC |  |

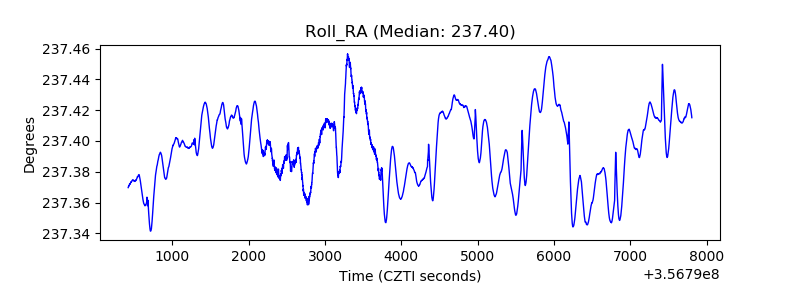

| _Roll_RA |  |

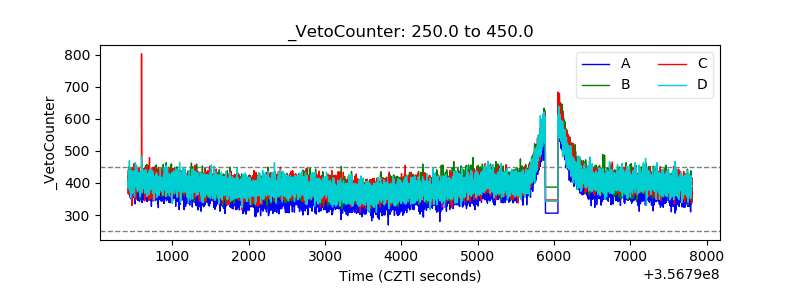

| Veto Counter |  |
