| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T01_9000004332_30105cztM0_level2.evt | modeM0/AS1C05_019T01_9000004332_30105cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,832,320 | 129,058,560 |
| Size | 472.9 MB | 123.1 MB |
| Events in quadrant A | 3,061,517 | 874,055 |
| Events in quadrant B | 4,991,745 | 888,571 |
| Events in quadrant C | 3,255,428 | 853,957 |
| Events in quadrant D | 3,269,571 | 841,947 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13459 | 1 |
| B | 0 | 19625 | 1 |
| C | 0 | 13931 | 1 |
| D | 0 | 14160 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6462 | 44 | 0.680904% |
| B | 6462 | 81 | 1.253482% |
| C | 6462 | 189 | 2.924791% |
| D | 6462 | 49 | 0.758279% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7577 | 6463 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7577 | 6463 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7577 | 6463 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7577 | 6463 | 22 | 22 | 0.29% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 34591 | 216.53 | 778 | 762 | 156.2 |
| A | 8 | 192 | 25874 | 160.74 | 778 | 762 | 156.2 |
| A | 13 | 254 | 11484 | 68.63 | 778 | 762 | 156.2 |
| B | 6 | 159 | 1861749 | 12679.47 | 780 | 761 | 146.8 |
| B | 0 | 190 | 39674 | 265.13 | 780 | 761 | 146.8 |
| B | 12 | 111 | 17727 | 115.59 | 780 | 761 | 146.8 |
| C | 14 | 238 | 170034 | 973.11 | 751 | 755 | 174.0 |
| C | 14 | 254 | 65923 | 374.62 | 751 | 755 | 174.0 |
| C | 3 | 233 | 43677 | 246.74 | 751 | 755 | 174.0 |
| D | 8 | 195 | 151619 | 851.11 | 749 | 734 | 177.3 |
| D | 2 | 250 | 100135 | 560.7 | 749 | 734 | 177.3 |
| D | 12 | 227 | 85538 | 478.36 | 749 | 734 | 177.3 |

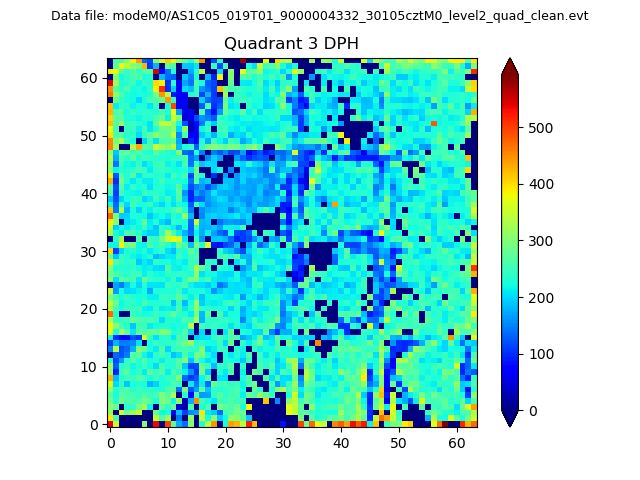

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

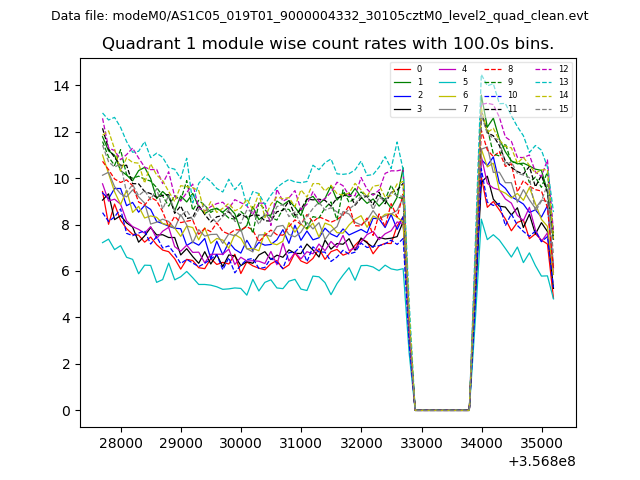

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

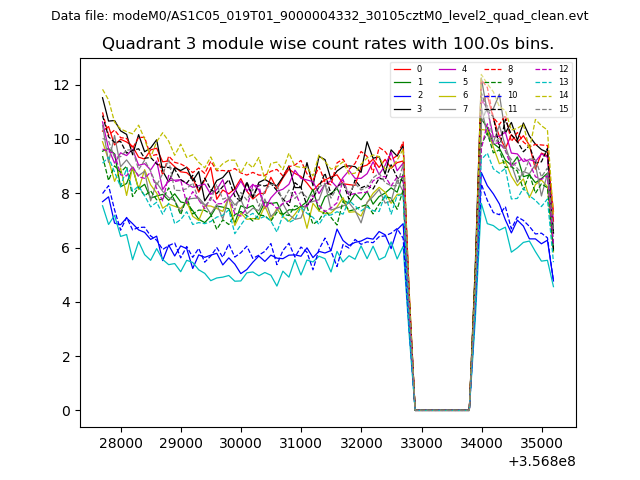

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

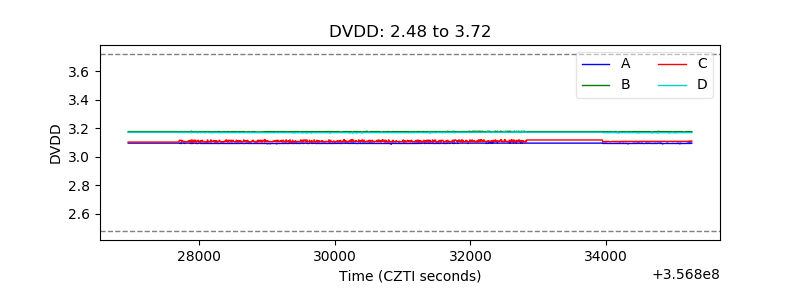

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

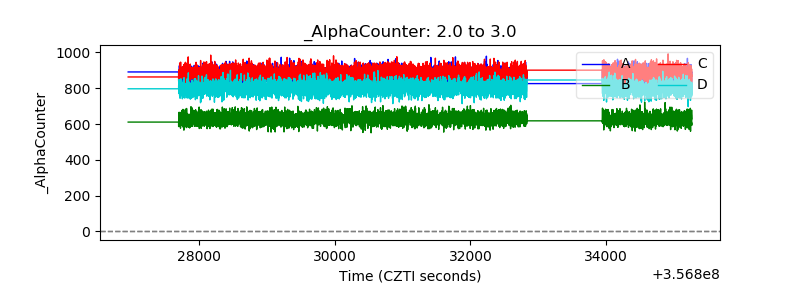

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

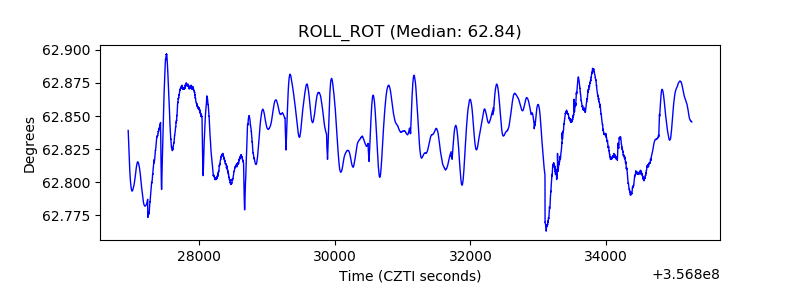

| _ROLL_ROT |  |

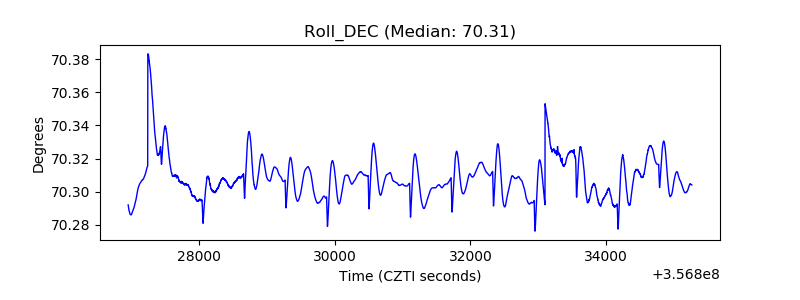

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
