| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T01_9000004332_30113cztM0_level2.evt | modeM0/AS1C05_019T01_9000004332_30113cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,030,400 | 125,530,560 |
| Size | 508.3 MB | 119.7 MB |
| Events in quadrant A | 3,107,411 | 857,138 |
| Events in quadrant B | 5,098,691 | 852,099 |
| Events in quadrant C | 3,225,429 | 813,612 |
| Events in quadrant D | 4,252,671 | 807,690 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13830 | 2 |
| B | 0 | 20378 | 1 |
| C | 0 | 13954 | 1 |
| D | 0 | 17162 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6768 | 81 | 1.196809% |
| B | 6769 | 182 | 2.688728% |
| C | 6769 | 204 | 3.013739% |
| D | 6769 | 91 | 1.344364% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6928 | 6769 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6929 | 6770 | 8 | 8 | 0.12% | 0.12% |  |
| C | 6929 | 6770 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6929 | 6770 | 8 | 8 | 0.12% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12554 | 73.02 | 803 | 785 | 161.2 |
| A | 3 | 137 | 8023 | 44.91 | 803 | 785 | 161.2 |
| A | 8 | 192 | 7897 | 44.12 | 803 | 785 | 161.2 |
| B | 6 | 159 | 1912544 | 12595.72 | 791 | 770 | 151.8 |
| B | 0 | 190 | 51133 | 331.81 | 791 | 770 | 151.8 |
| B | 0 | 156 | 20084 | 127.25 | 791 | 770 | 151.8 |
| C | 14 | 238 | 151295 | 850.2 | 760 | 762 | 177.1 |
| C | 3 | 233 | 52084 | 289.86 | 760 | 762 | 177.1 |
| C | 14 | 254 | 41336 | 229.16 | 760 | 762 | 177.1 |
| D | 1 | 52 | 562316 | 2816.08 | 769 | 751 | 199.4 |
| D | 12 | 227 | 284722 | 1424.03 | 769 | 751 | 199.4 |
| D | 8 | 195 | 282712 | 1413.95 | 769 | 751 | 199.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

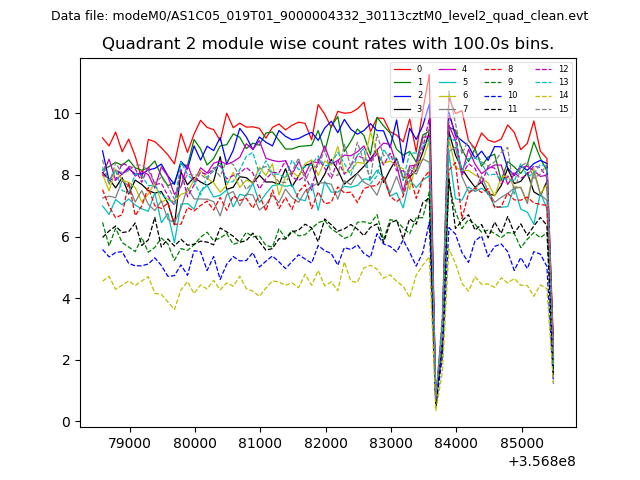

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

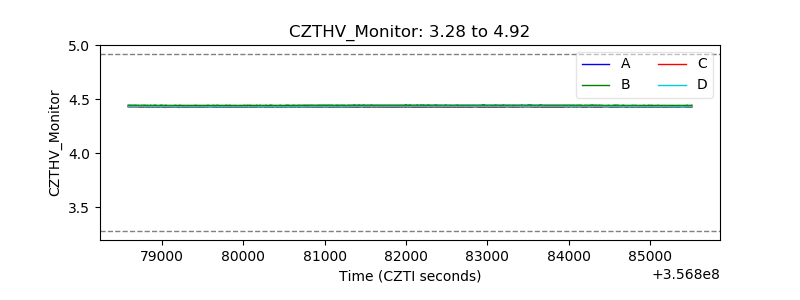

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

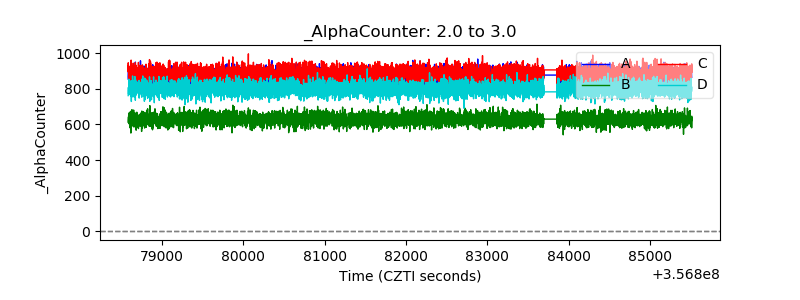

| Alpha Counter |  |

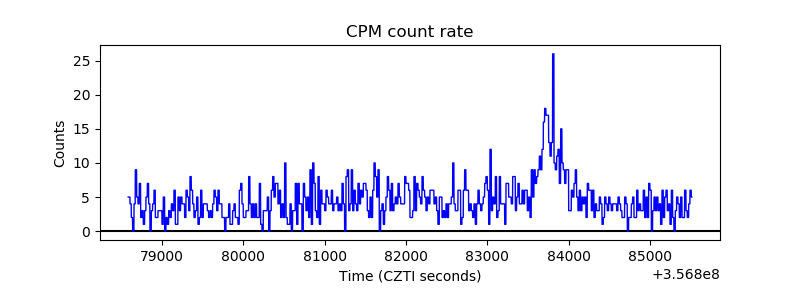

| _CPM_Rate |  |

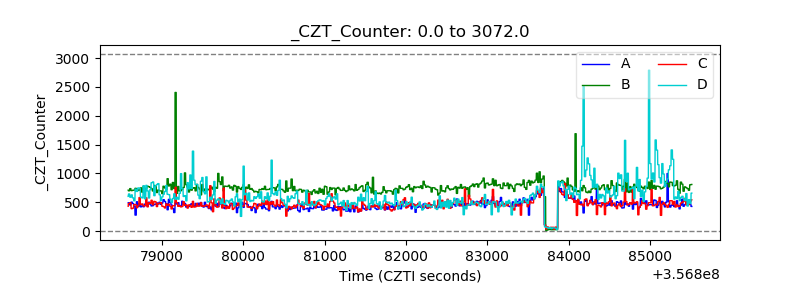

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

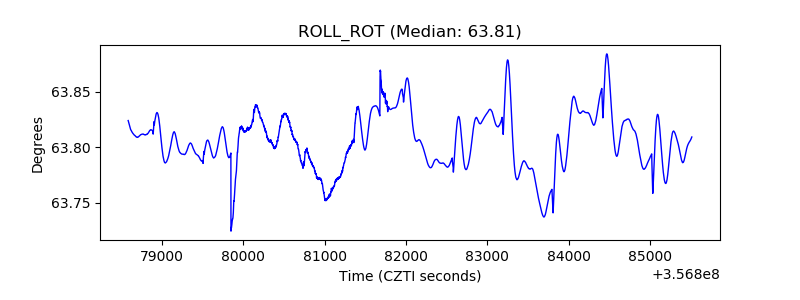

| _ROLL_ROT |  |

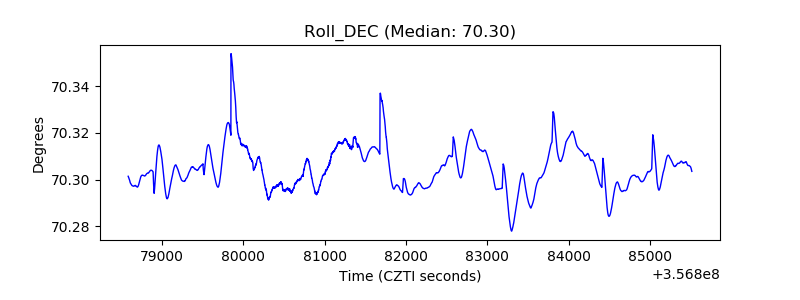

| _Roll_DEC |  |

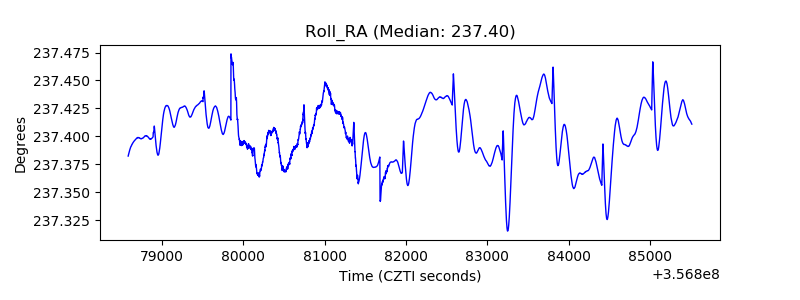

| _Roll_RA |  |
| Veto Counter |  |
