| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T03_9000004336_30134cztM0_level2.evt | modeM0/AS1A10_097T03_9000004336_30134cztM0_level2_quad_clean.evt |
| Size (bytes) | 310,561,920 | 26,202,240 |
| Size | 296.2 MB | 25.0 MB |
| Events in quadrant A | 1,394,748 | 174,179 |
| Events in quadrant B | 1,798,443 | 177,457 |
| Events in quadrant C | 4,520,072 | 121,781 |
| Events in quadrant D | 1,549,544 | 168,498 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5416 | 1 |
| B | 0 | 6587 | 1 |
| C | 0 | 14856 | 6 |
| D | 0 | 6056 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2076 | 136 | 6.551060% |
| B | 2076 | 80 | 3.853565% |
| C | 2075 | 1820 | 87.710843% |
| D | 2075 | 95 | 4.578313% |

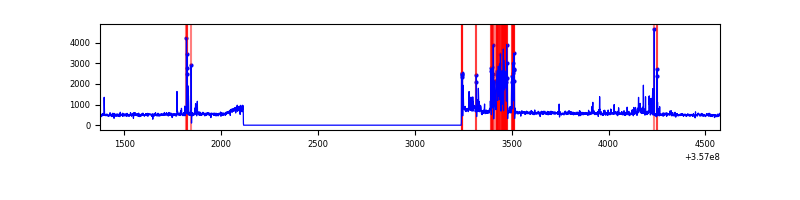

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3201 | 2077 | 64 | 64 | 2.00% | 3.08% |  |
| B | 3201 | 2077 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3199 | 2074 | 1406 | 1406 | 43.95% | 67.79% |  |
| D | 3200 | 2076 | 43 | 43 | 1.34% | 2.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 269537 | 4539.81 | 289 | 284 | 59.3 |
| A | 8 | 192 | 8426 | 137.28 | 289 | 284 | 59.3 |
| A | 13 | 254 | 3855 | 60.21 | 289 | 284 | 59.3 |
| B | 6 | 159 | 615606 | 10837.47 | 293 | 285 | 56.8 |
| B | 0 | 190 | 12560 | 216.2 | 293 | 285 | 56.8 |
| B | 4 | 171 | 12228 | 210.35 | 293 | 285 | 56.8 |
| C | 3 | 233 | 3740133 | 81387.37 | 191 | 193 | 46.0 |
| C | 14 | 238 | 29094 | 628.93 | 191 | 193 | 46.0 |
| C | 2 | 114 | 3307 | 67.77 | 191 | 193 | 46.0 |
| D | 8 | 195 | 105333 | 1379.97 | 284 | 278 | 76.1 |
| D | 13 | 249 | 94422 | 1236.64 | 284 | 278 | 76.1 |
| D | 1 | 52 | 82627 | 1081.71 | 284 | 278 | 76.1 |

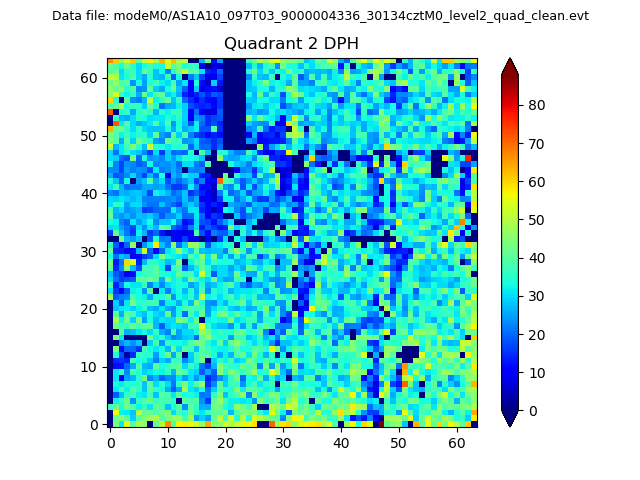

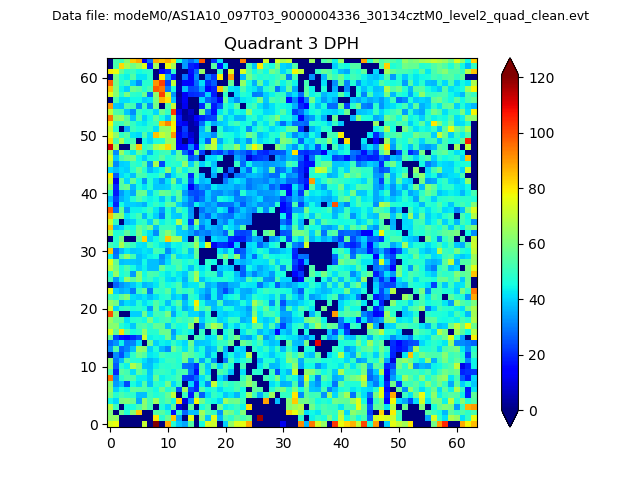

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

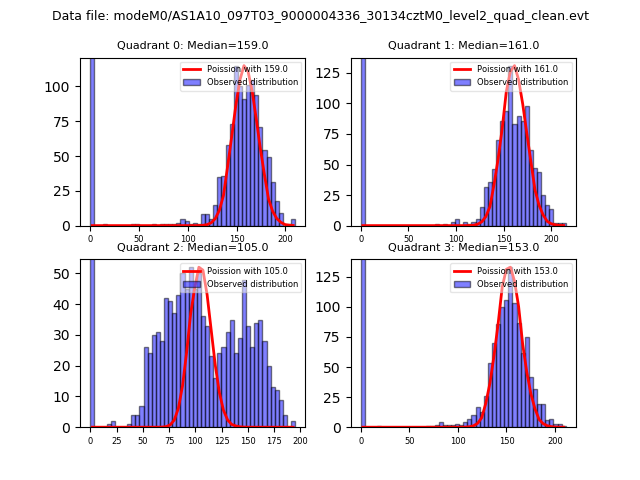

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

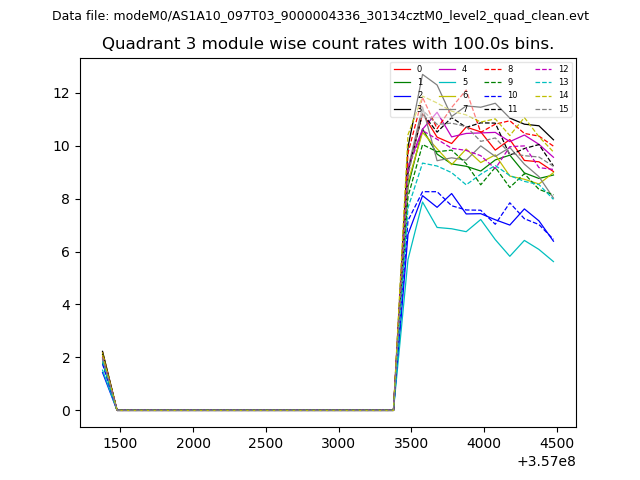

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

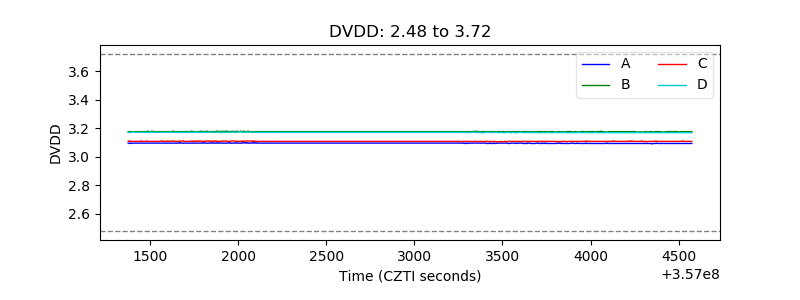

| D_VDD |  |

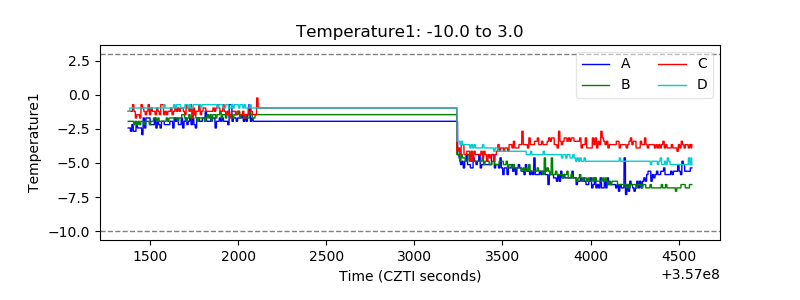

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

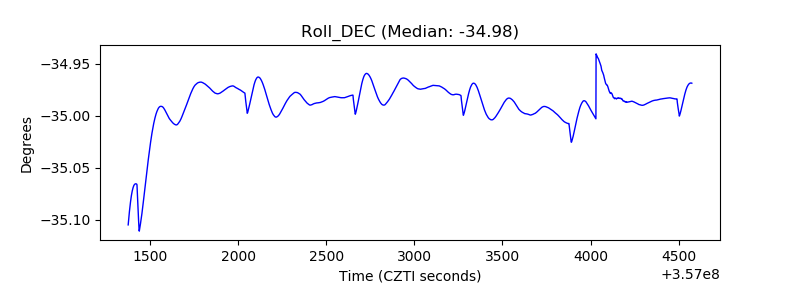

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
