| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T03_9000004336_30135cztM0_level2.evt | modeM0/AS1A10_097T03_9000004336_30135cztM0_level2_quad_clean.evt |
| Size (bytes) | 920,784,960 | 99,768,960 |
| Size | 878.1 MB | 95.1 MB |
| Events in quadrant A | 3,423,274 | 757,041 |
| Events in quadrant B | 5,012,686 | 768,867 |
| Events in quadrant C | 14,765,006 | 336,732 |
| Events in quadrant D | 4,273,337 | 730,468 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14029 | 1 |
| B | 0 | 18956 | 1 |
| C | 0 | 48064 | 4 |
| D | 0 | 16937 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6105 | 90 | 1.474201% |
| B | 6105 | 107 | 1.752662% |
| C | 6104 | 5869 | 96.150066% |
| D | 6105 | 109 | 1.785422% |

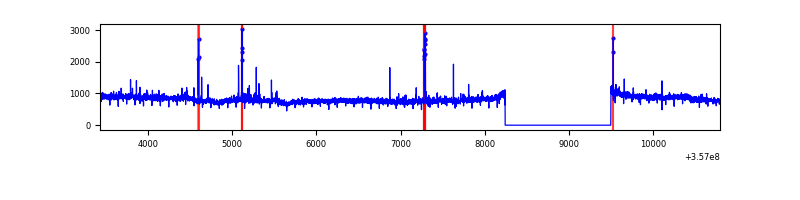

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7360 | 6106 | 52 | 52 | 0.71% | 0.85% |  |
| B | 7360 | 6106 | 18 | 18 | 0.24% | 0.29% |  |
| C | 7358 | 6103 | 5273 | 5273 | 71.66% | 86.40% |  |
| D | 7360 | 6106 | 76 | 76 | 1.03% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 324213 | 2043.16 | 794 | 780 | 158.3 |
| A | 15 | 174 | 21718 | 132.27 | 794 | 780 | 158.3 |
| A | 8 | 192 | 12628 | 74.85 | 794 | 780 | 158.3 |
| B | 6 | 159 | 1788827 | 12048.3 | 796 | 777 | 148.4 |
| B | 4 | 171 | 90357 | 603.61 | 796 | 777 | 148.4 |
| B | 12 | 111 | 17781 | 114.58 | 796 | 777 | 148.4 |
| C | 3 | 233 | 13096226 | 139584.95 | 406 | 411 | 93.8 |
| C | 14 | 238 | 65696 | 695.86 | 406 | 411 | 93.8 |
| C | 14 | 254 | 8378 | 84.92 | 406 | 411 | 93.8 |
| D | 1 | 52 | 657993 | 3439.17 | 780 | 764 | 191.1 |
| D | 8 | 195 | 198212 | 1033.21 | 780 | 764 | 191.1 |
| D | 7 | 1 | 149955 | 780.69 | 780 | 764 | 191.1 |

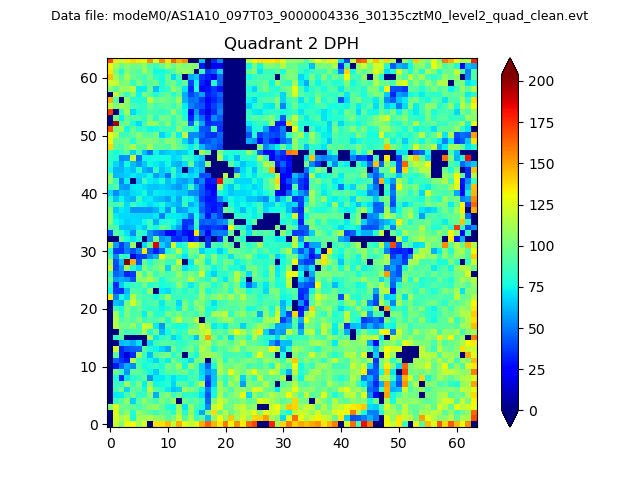

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

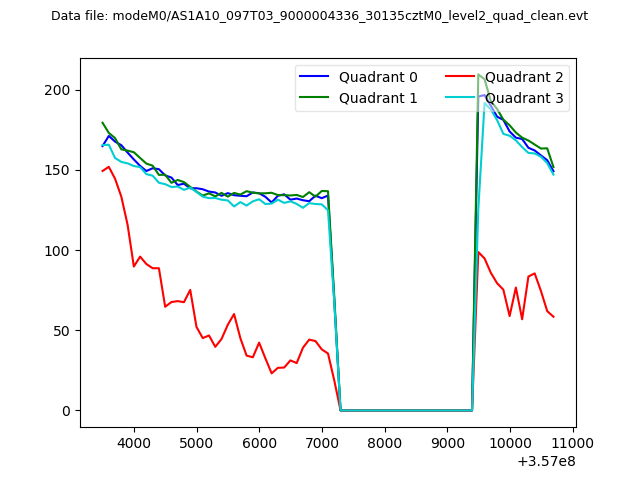

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

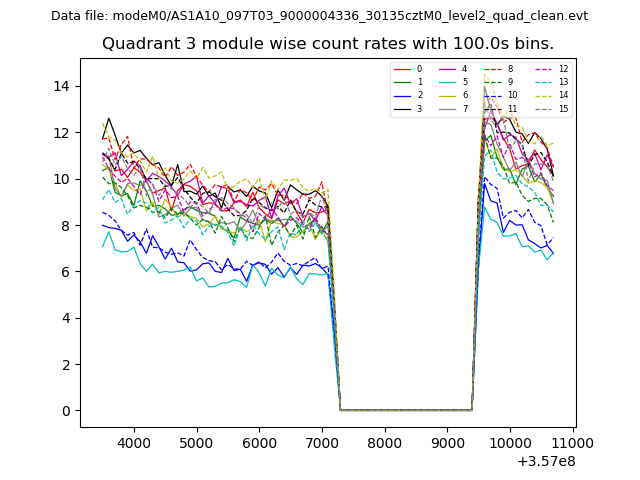

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

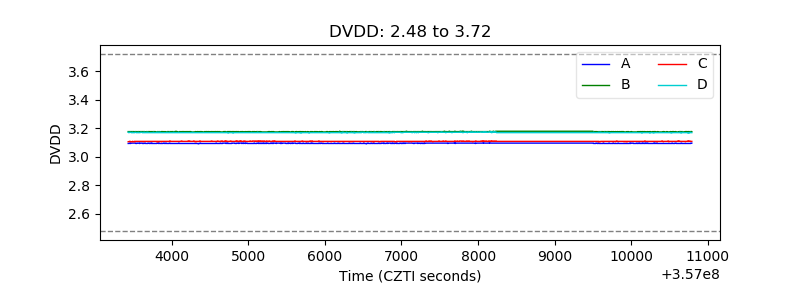

| D_VDD |  |

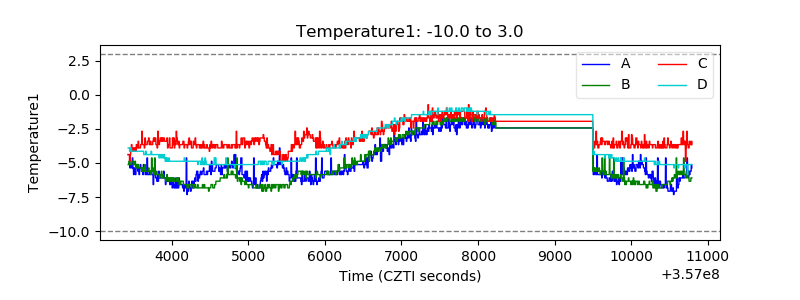

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

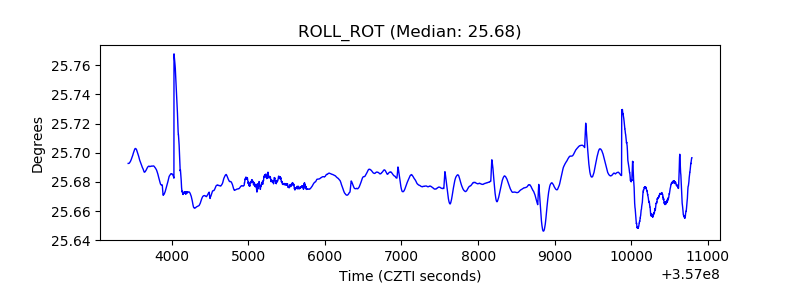

| _ROLL_ROT |  |
| _Roll_DEC |  |

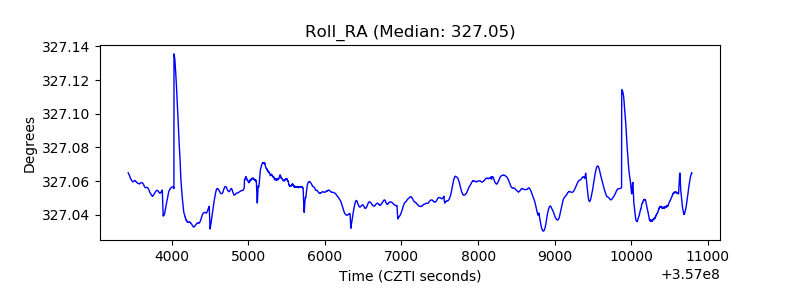

| _Roll_RA |  |
| Veto Counter |  |
