| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T03_9000004336_30138cztM0_level2.evt | modeM0/AS1A10_097T03_9000004336_30138cztM0_level2_quad_clean.evt |
| Size (bytes) | 755,861,760 | 94,495,680 |
| Size | 720.8 MB | 90.1 MB |
| Events in quadrant A | 3,437,875 | 624,776 |
| Events in quadrant B | 4,971,608 | 632,276 |
| Events in quadrant C | 10,486,223 | 549,854 |
| Events in quadrant D | 3,574,698 | 619,120 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13946 | 1 |
| B | 0 | 19014 | 1 |
| C | 0 | 35559 | 1 |
| D | 0 | 14301 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6235 | 77 | 1.234964% |
| B | 6235 | 82 | 1.315156% |
| C | 6236 | 3211 | 51.491341% |
| D | 6236 | 35 | 0.561257% |

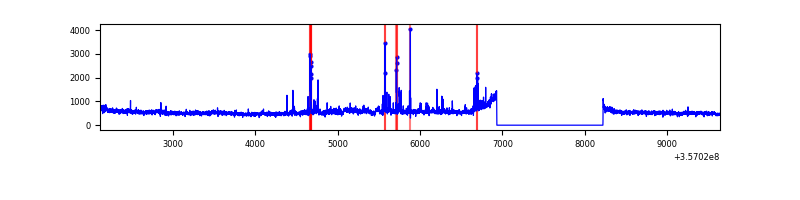

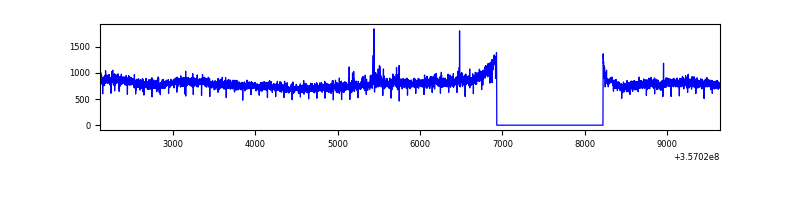

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7525 | 6236 | 24 | 24 | 0.32% | 0.38% |  |
| B | 7525 | 6236 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7526 | 6237 | 2349 | 2349 | 31.21% | 37.66% |  |
| D | 7526 | 6237 | 14 | 14 | 0.19% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 260557 | 1599.58 | 821 | 808 | 162.4 |
| A | 8 | 192 | 12134 | 69.75 | 821 | 808 | 162.4 |
| A | 13 | 254 | 11312 | 64.69 | 821 | 808 | 162.4 |
| B | 6 | 159 | 1766469 | 11654.22 | 806 | 787 | 151.5 |
| B | 0 | 190 | 23975 | 153.05 | 806 | 787 | 151.5 |
| B | 12 | 111 | 17840 | 112.56 | 806 | 787 | 151.5 |
| C | 3 | 233 | 7557921 | 45833.75 | 707 | 711 | 164.9 |
| C | 14 | 238 | 131367 | 792.42 | 707 | 711 | 164.9 |
| C | 14 | 254 | 30034 | 177.84 | 707 | 711 | 164.9 |
| D | 8 | 195 | 194216 | 986.63 | 812 | 797 | 196.0 |
| D | 1 | 52 | 131299 | 665.69 | 812 | 797 | 196.0 |
| D | 13 | 168 | 80770 | 407.94 | 812 | 797 | 196.0 |

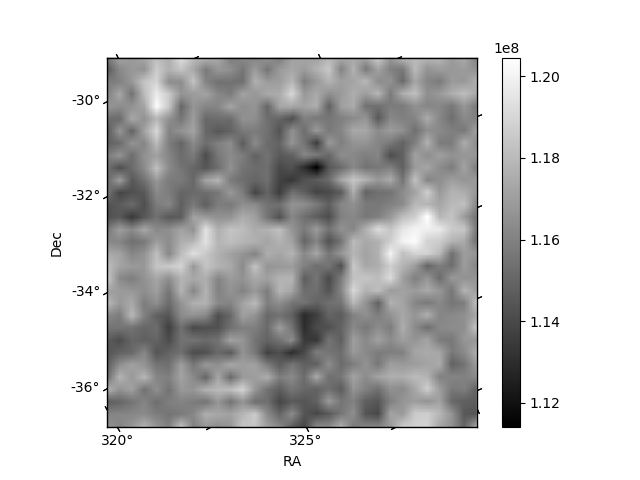

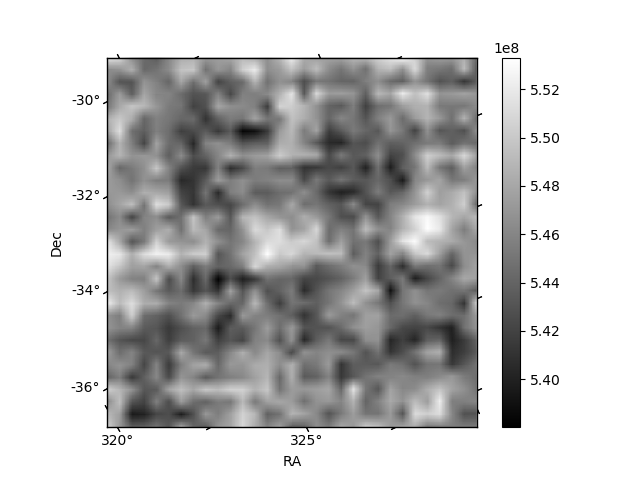

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

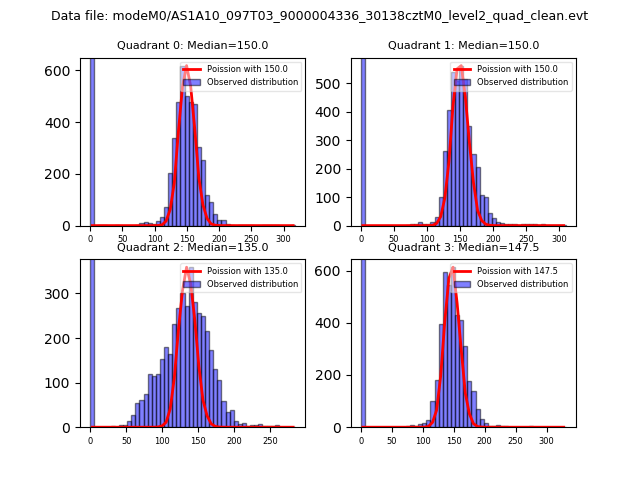

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

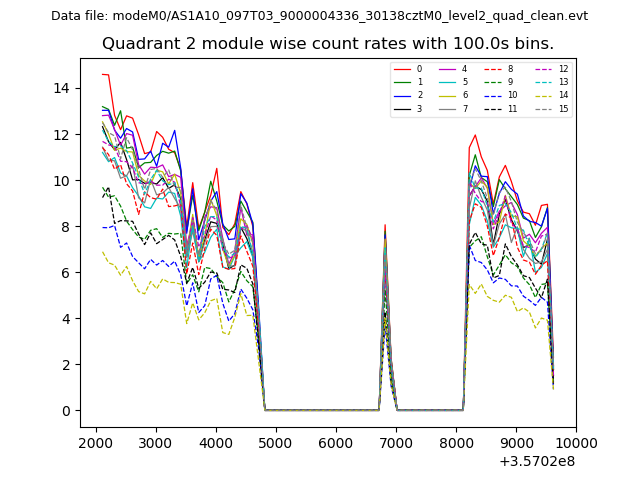

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

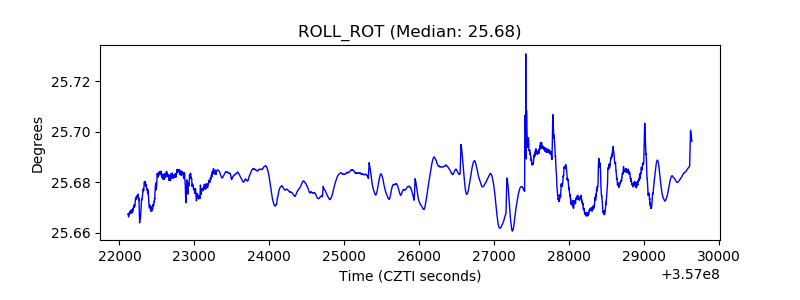

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
