| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T03_9000004336_30157cztM0_level2.evt | modeM0/AS1A10_097T03_9000004336_30157cztM0_level2_quad_clean.evt |
| Size (bytes) | 696,424,320 | 97,439,040 |
| Size | 664.2 MB | 92.9 MB |
| Events in quadrant A | 3,853,007 | 615,326 |
| Events in quadrant B | 6,053,515 | 610,645 |
| Events in quadrant C | 6,102,333 | 589,609 |
| Events in quadrant D | 4,554,727 | 592,277 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16506 | 1 |
| B | 0 | 23893 | 2 |
| C | 0 | 23665 | 1 |
| D | 0 | 18434 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7812 | 209 | 2.675371% |
| B | 7811 | 296 | 3.789528% |
| C | 7812 | 384 | 4.915515% |
| D | 7812 | 289 | 3.699437% |

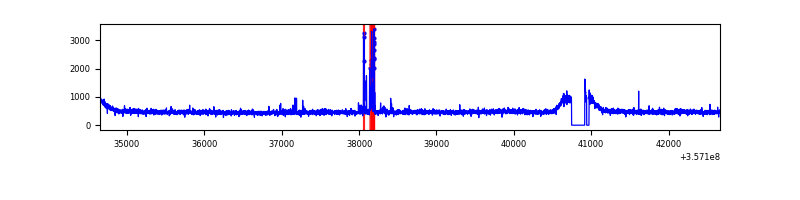

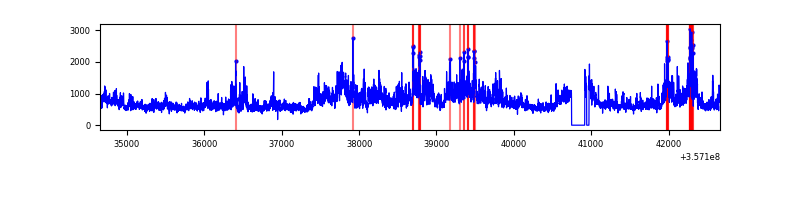

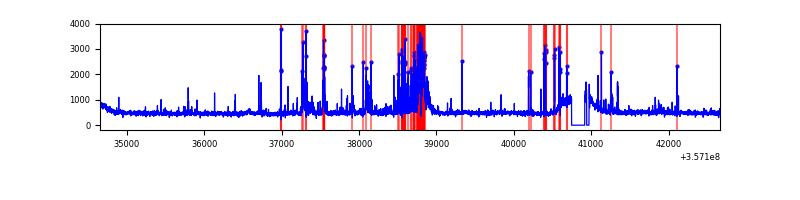

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8012 | 7813 | 18 | 18 | 0.22% | 0.23% |  |
| B | 8011 | 7812 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8012 | 7813 | 48 | 48 | 0.60% | 0.61% |  |
| D | 8012 | 7814 | 133 | 133 | 1.66% | 1.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 95713 | 483.37 | 968 | 945 | 196.1 |
| A | 13 | 254 | 14554 | 69.41 | 968 | 945 | 196.1 |
| A | 3 | 1 | 11959 | 56.18 | 968 | 945 | 196.1 |
| B | 6 | 159 | 2234572 | 12033.84 | 947 | 920 | 185.6 |
| B | 0 | 190 | 51957 | 274.96 | 947 | 920 | 185.6 |
| B | 12 | 111 | 22939 | 118.63 | 947 | 920 | 185.6 |
| C | 3 | 233 | 2355908 | 10856.41 | 920 | 924 | 216.9 |
| C | 14 | 238 | 143053 | 655.21 | 920 | 924 | 216.9 |
| C | 2 | 114 | 18136 | 79.35 | 920 | 924 | 216.9 |
| D | 2 | 250 | 481595 | 2066.73 | 938 | 916 | 232.6 |
| D | 8 | 195 | 221477 | 948.33 | 938 | 916 | 232.6 |
| D | 12 | 233 | 116021 | 494.91 | 938 | 916 | 232.6 |

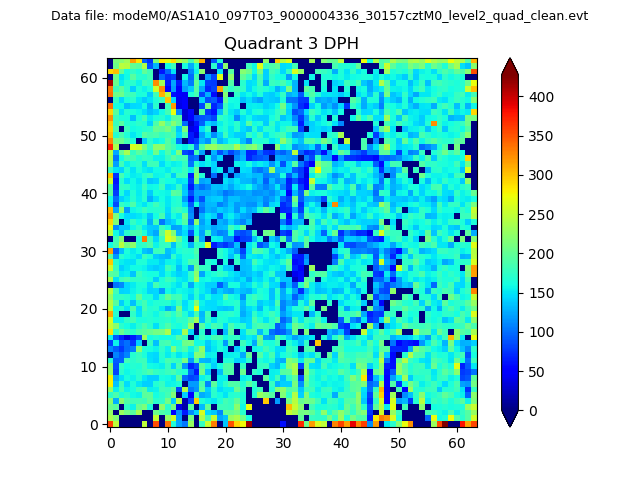

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

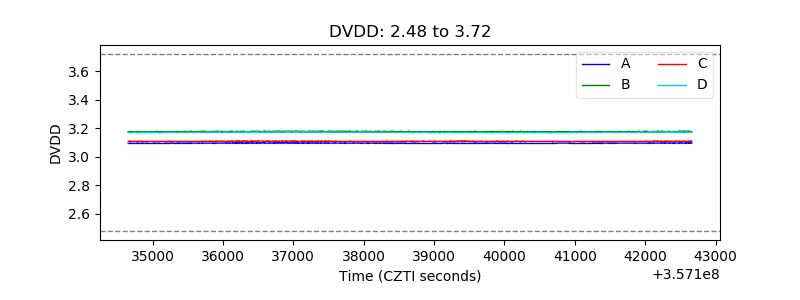

| D_VDD |  |

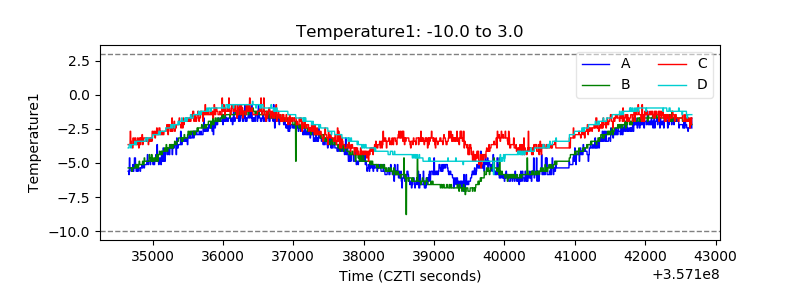

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

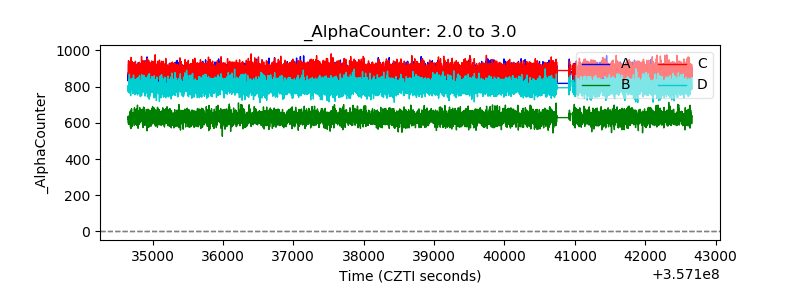

| Alpha Counter |  |

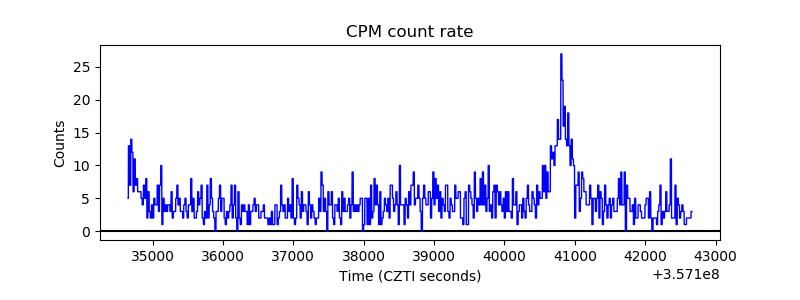

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
