| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T03_9000004336_30160cztM0_level2.evt | modeM0/AS1A10_097T03_9000004336_30160cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,219,944,960 | 204,059,520 |
| Size | 1.1 GB | 194.6 MB |
| Events in quadrant A | 7,274,682 | 1,309,889 |
| Events in quadrant B | 12,195,845 | 1,287,434 |
| Events in quadrant C | 8,389,267 | 1,253,380 |
| Events in quadrant D | 8,046,001 | 1,265,779 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 316 | 0 |
| B | 0 | 316 | 0 |
| C | 0 | 316 | 0 |
| D | 0 | 316 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31633 | 3 |
| B | 0 | 47403 | 3 |
| C | 0 | 34566 | 3 |
| D | 0 | 33444 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15413 | 194 | 1.258678% |
| B | 15414 | 363 | 2.355002% |
| C | 15414 | 268 | 1.738679% |
| D | 15414 | 180 | 1.167770% |

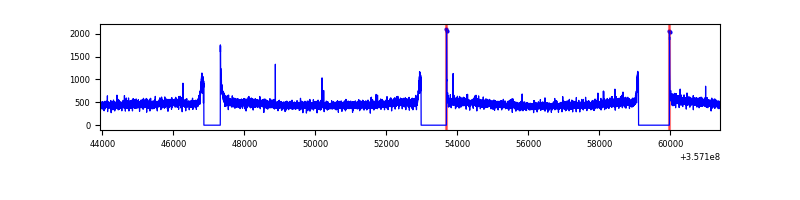

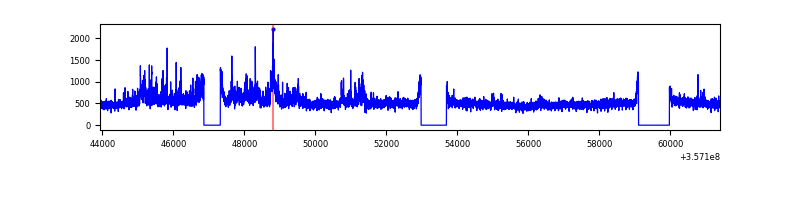

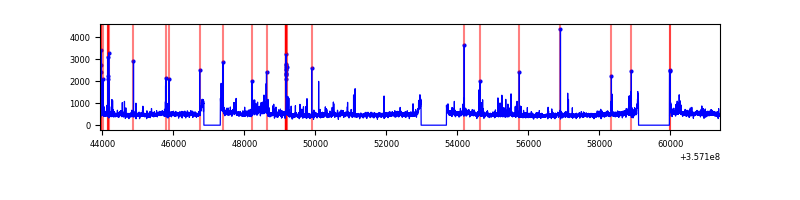

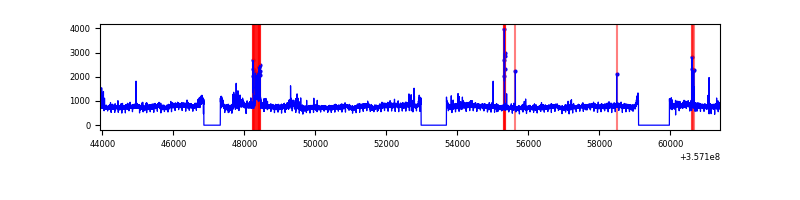

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17464 | 15413 | 4 | 4 | 0.02% | 0.03% |  |
| B | 17465 | 15414 | 31 | 31 | 0.18% | 0.20% |  |
| C | 17465 | 15415 | 1 | 1 | 0.01% | 0.01% |  |
| D | 17465 | 15417 | 35 | 35 | 0.20% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 37596 | 94.9 | 1875 | 1831 | 376.9 |
| A | 13 | 254 | 29763 | 74.11 | 1875 | 1831 | 376.9 |
| A | 3 | 137 | 19288 | 46.32 | 1875 | 1831 | 376.9 |
| B | 6 | 159 | 4517662 | 12667.61 | 1844 | 1792 | 356.5 |
| B | 3 | 64 | 275748 | 768.48 | 1844 | 1792 | 356.5 |
| B | 0 | 190 | 57773 | 157.03 | 1844 | 1792 | 356.5 |
| C | 3 | 233 | 1049826 | 2470.99 | 1799 | 1809 | 424.1 |
| C | 14 | 238 | 287677 | 674.01 | 1799 | 1809 | 424.1 |
| C | 2 | 114 | 36573 | 81.97 | 1799 | 1809 | 424.1 |
| D | 8 | 195 | 557937 | 1207.57 | 1822 | 1783 | 460.6 |
| D | 2 | 250 | 119428 | 255.44 | 1822 | 1783 | 460.6 |
| D | 7 | 223 | 106050 | 226.39 | 1822 | 1783 | 460.6 |

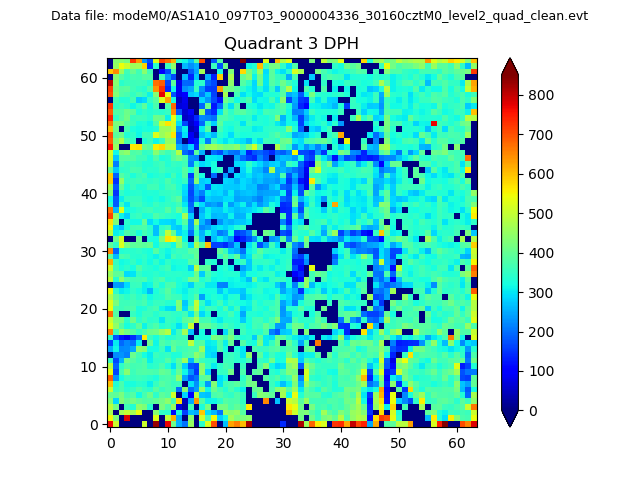

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

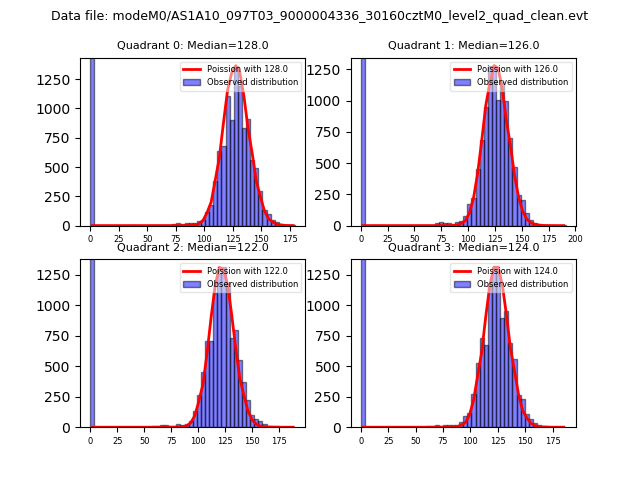

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

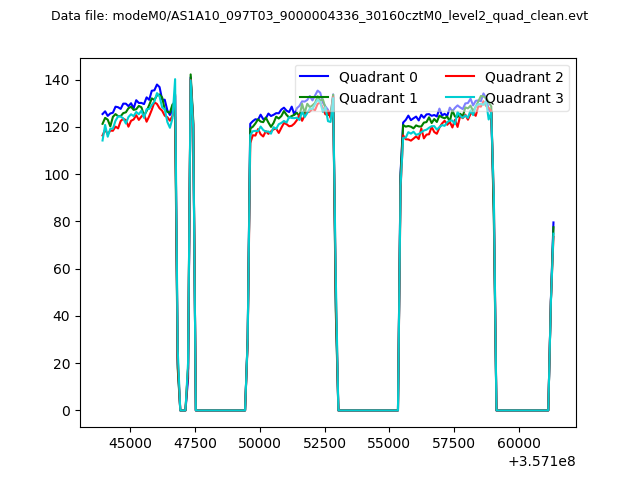

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

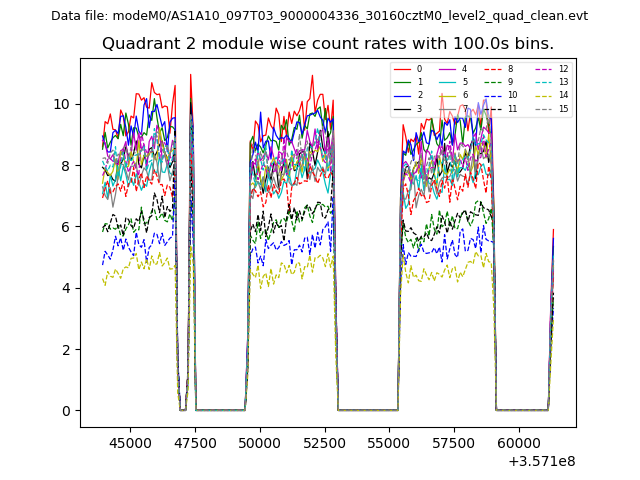

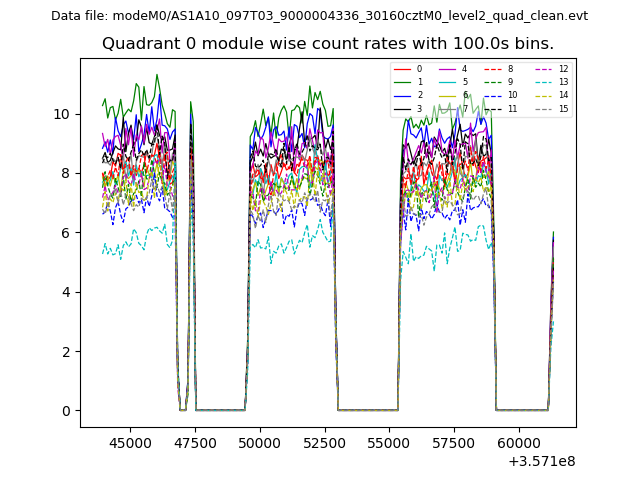

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

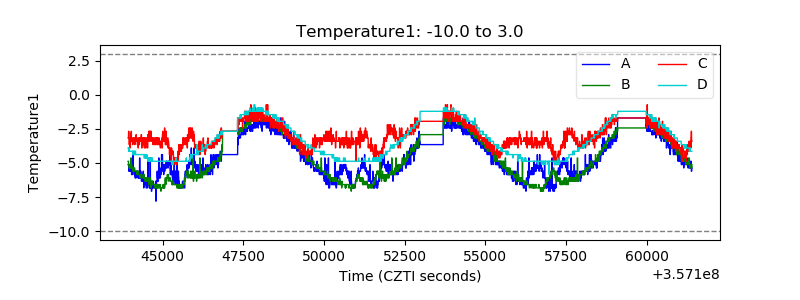

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

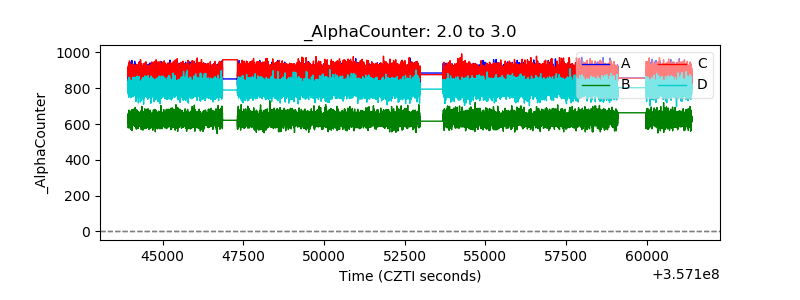

| Alpha Counter |  |

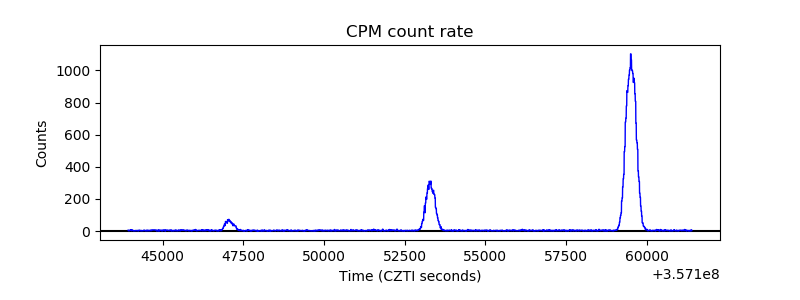

| _CPM_Rate |  |

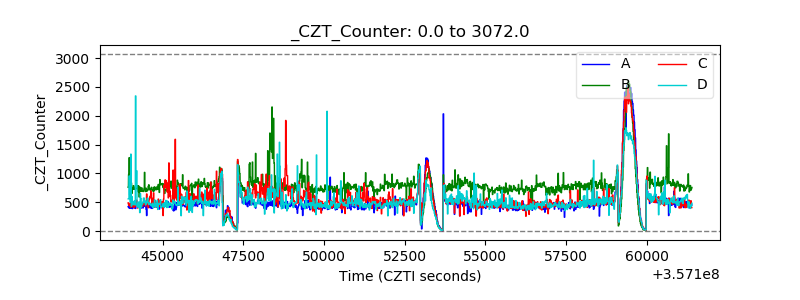

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

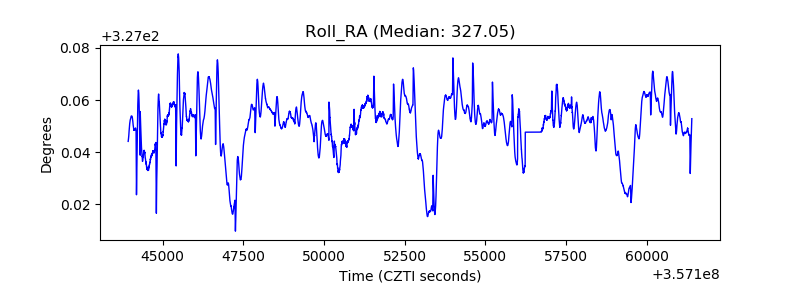

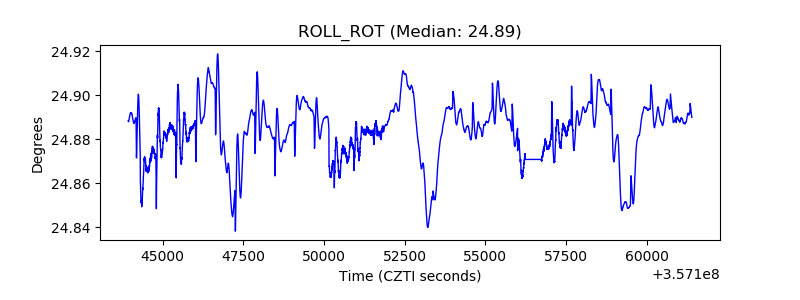

| _ROLL_ROT |  |

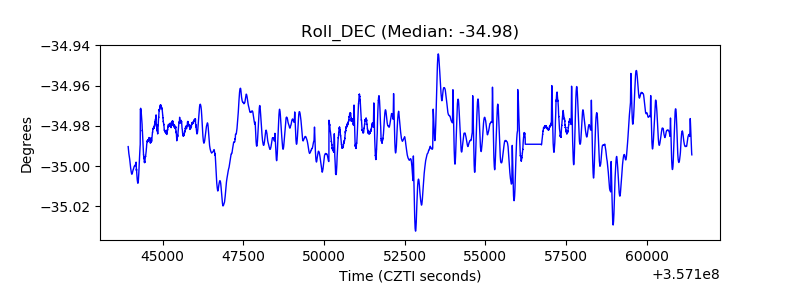

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
