| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T03_9000004336_30164cztM0_level2.evt | modeM0/AS1A10_097T03_9000004336_30164cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,704,320 | 111,150,720 |
| Size | 543.3 MB | 106.0 MB |
| Events in quadrant A | 3,202,716 | 745,560 |
| Events in quadrant B | 5,059,585 | 750,099 |
| Events in quadrant C | 5,217,423 | 717,455 |
| Events in quadrant D | 3,359,245 | 725,116 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13387 | 1 |
| B | 0 | 19072 | 1 |
| C | 0 | 20117 | 1 |
| D | 0 | 13933 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6137 | 32 | 0.521427% |
| B | 6137 | 66 | 1.075444% |
| C | 6137 | 287 | 4.676552% |
| D | 6137 | 25 | 0.407365% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7407 | 6138 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7407 | 6138 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7407 | 6138 | 48 | 48 | 0.65% | 0.78% |  |
| D | 7407 | 6138 | 14 | 14 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 36124 | 219.52 | 814 | 801 | 160.9 |
| A | 8 | 192 | 13477 | 78.78 | 814 | 801 | 160.9 |
| A | 13 | 254 | 11748 | 68.03 | 814 | 801 | 160.9 |
| B | 6 | 159 | 1824912 | 12039.26 | 809 | 790 | 151.5 |
| B | 0 | 190 | 22434 | 142.85 | 809 | 790 | 151.5 |
| B | 12 | 111 | 17935 | 113.16 | 809 | 790 | 151.5 |
| C | 3 | 233 | 1974993 | 10731.22 | 790 | 797 | 184.0 |
| C | 14 | 238 | 127589 | 689.21 | 790 | 797 | 184.0 |
| C | 15 | 208 | 15869 | 81.92 | 790 | 797 | 184.0 |
| D | 8 | 195 | 136296 | 690.62 | 797 | 781 | 196.2 |
| D | 2 | 250 | 67397 | 339.49 | 797 | 781 | 196.2 |
| D | 12 | 233 | 59114 | 297.28 | 797 | 781 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

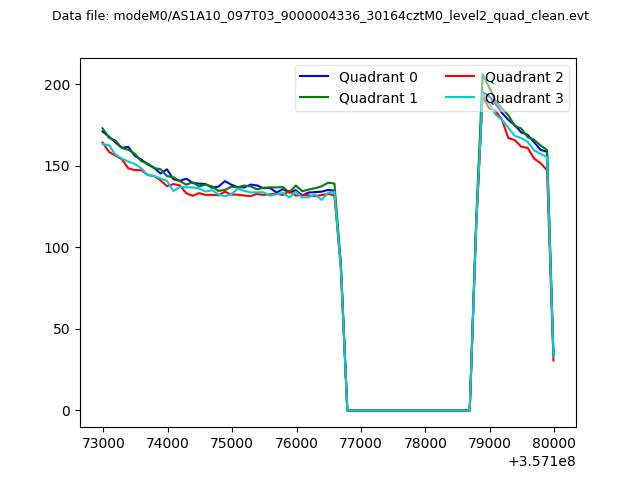

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

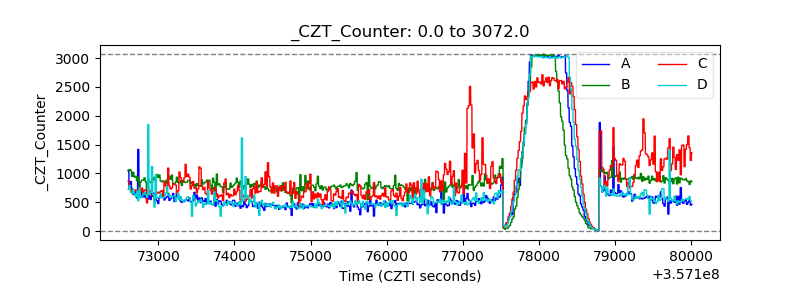

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

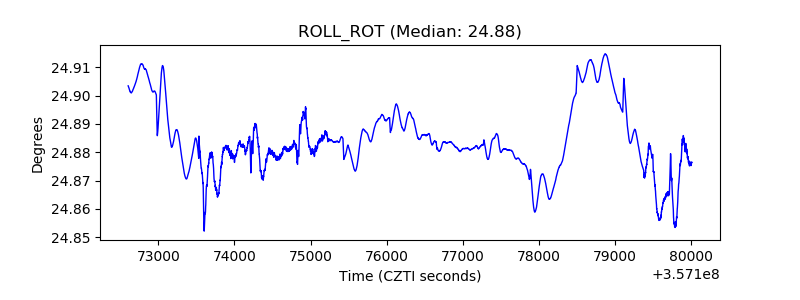

| _ROLL_ROT |  |

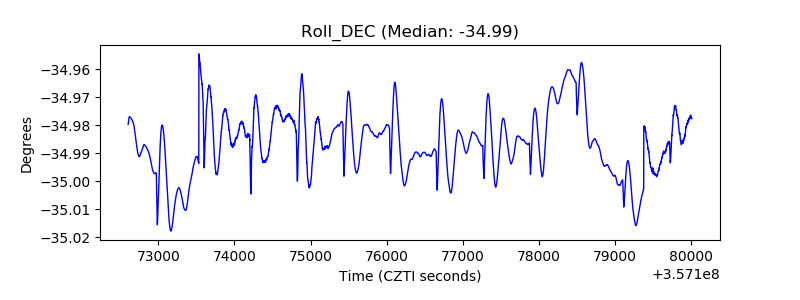

| _Roll_DEC |  |

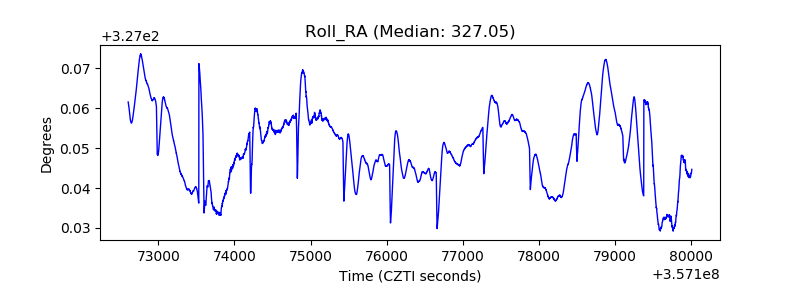

| _Roll_RA |  |
| Veto Counter |  |
