| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T03_9000004336_30165cztM0_level2.evt | modeM0/AS1A10_097T03_9000004336_30165cztM0_level2_quad_clean.evt |
| Size (bytes) | 684,869,760 | 119,531,520 |
| Size | 653.1 MB | 114.0 MB |
| Events in quadrant A | 3,279,699 | 806,178 |
| Events in quadrant B | 5,174,015 | 819,055 |
| Events in quadrant C | 8,198,693 | 767,679 |
| Events in quadrant D | 3,670,340 | 793,599 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13601 | 2 |
| B | 0 | 19482 | 3 |
| C | 0 | 28748 | 2 |
| D | 0 | 14853 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6213 | 46 | 0.740383% |
| B | 6212 | 105 | 1.690277% |
| C | 6212 | 1093 | 17.594977% |
| D | 6212 | 65 | 1.046362% |

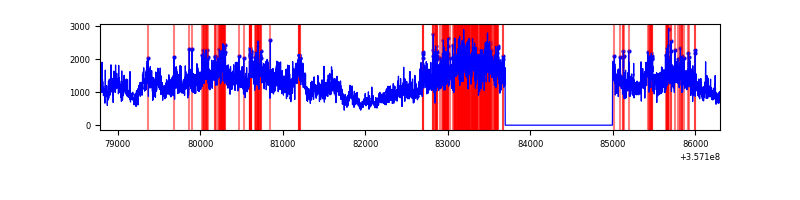

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7513 | 6214 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7512 | 6213 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7512 | 6212 | 352 | 352 | 4.69% | 5.67% |  |
| D | 7512 | 6213 | 25 | 25 | 0.33% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 24369 | 142.12 | 842 | 828 | 165.6 |
| A | 13 | 254 | 11629 | 65.2 | 842 | 828 | 165.6 |
| A | 3 | 137 | 7623 | 41.02 | 842 | 828 | 165.6 |
| B | 6 | 159 | 1820870 | 11687.2 | 840 | 819 | 155.7 |
| B | 0 | 190 | 26201 | 162.98 | 840 | 819 | 155.7 |
| B | 0 | 230 | 19609 | 120.65 | 840 | 819 | 155.7 |
| C | 3 | 233 | 4888928 | 26211.56 | 806 | 814 | 186.5 |
| C | 14 | 238 | 129258 | 688.76 | 806 | 814 | 186.5 |
| C | 15 | 208 | 19897 | 102.33 | 806 | 814 | 186.5 |
| D | 8 | 195 | 194246 | 940.44 | 835 | 820 | 205.7 |
| D | 12 | 233 | 115372 | 556.95 | 835 | 820 | 205.7 |
| D | 2 | 250 | 67812 | 325.72 | 835 | 820 | 205.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

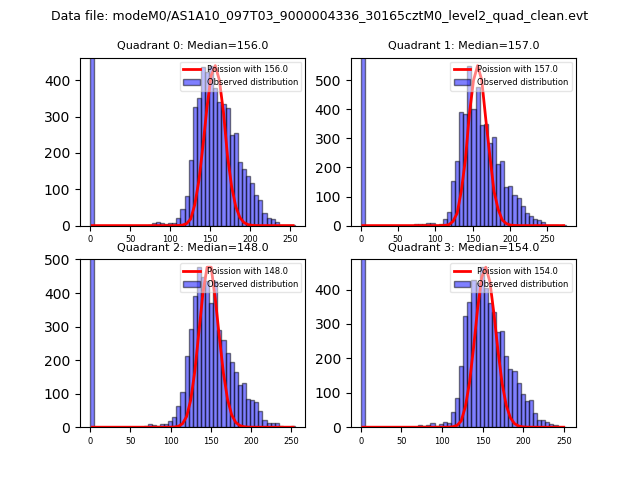

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

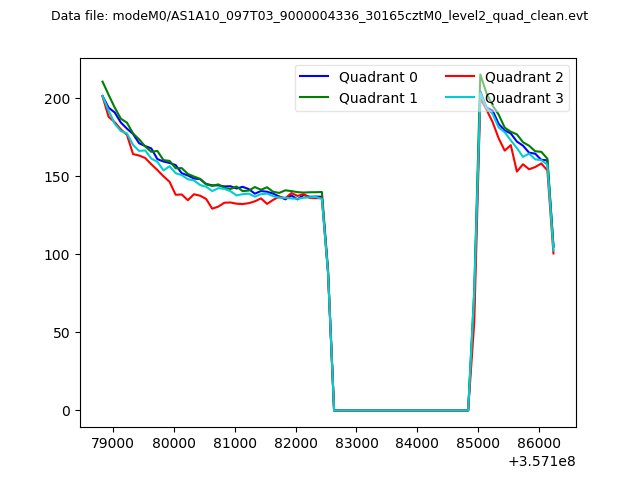

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

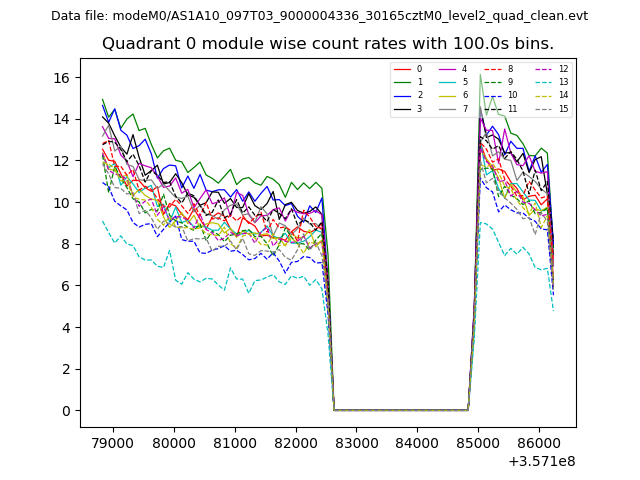

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

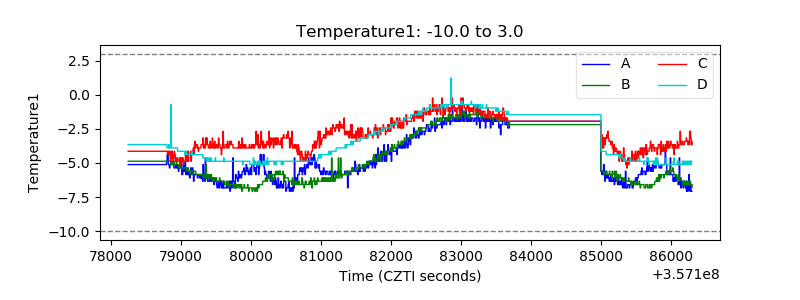

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

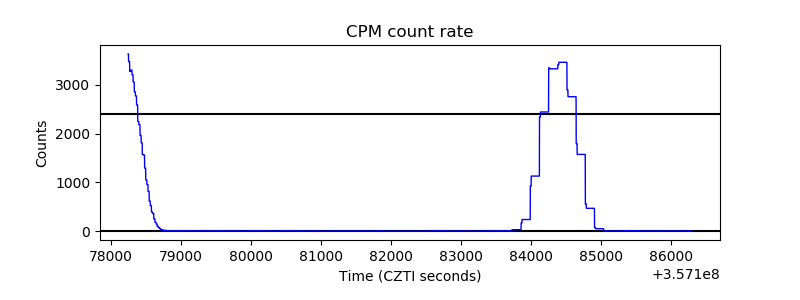

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

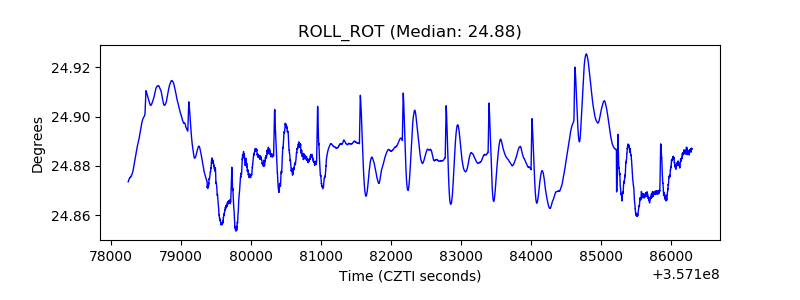

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
