| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T03_9000004336_30168cztM0_level2.evt | modeM0/AS1A10_097T03_9000004336_30168cztM0_level2_quad_clean.evt |
| Size (bytes) | 679,043,520 | 95,388,480 |
| Size | 647.6 MB | 91.0 MB |
| Events in quadrant A | 3,300,945 | 624,248 |
| Events in quadrant B | 5,110,430 | 625,622 |
| Events in quadrant C | 7,820,828 | 573,128 |
| Events in quadrant D | 3,891,815 | 609,691 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13830 | 1 |
| B | 0 | 19802 | 1 |
| C | 0 | 27886 | 1 |
| D | 0 | 15674 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6530 | 100 | 1.531394% |
| B | 6530 | 154 | 2.358346% |
| C | 6530 | 825 | 12.633997% |
| D | 6531 | 168 | 2.572347% |

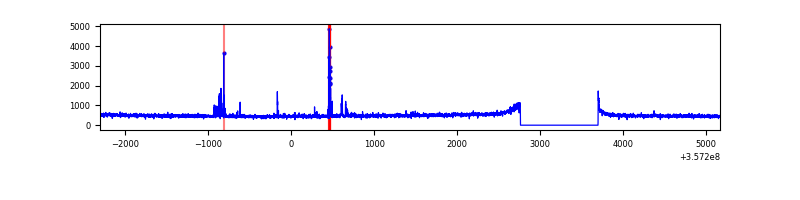

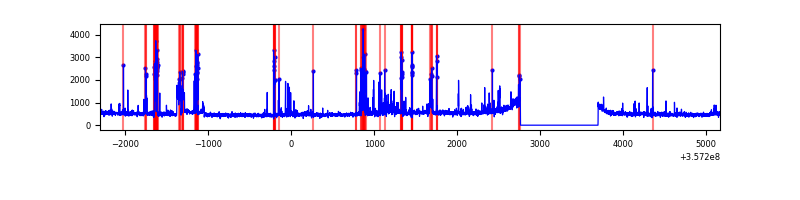

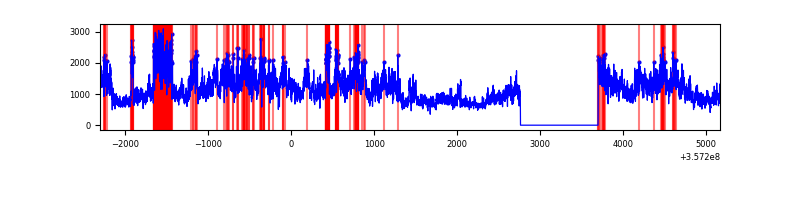

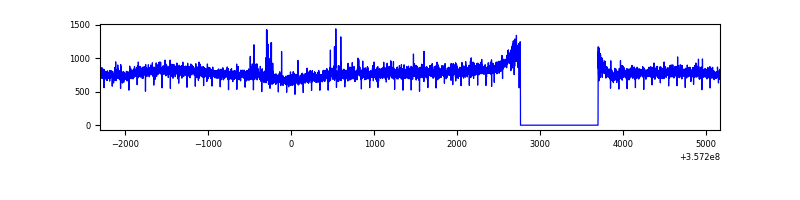

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7465 | 6530 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7465 | 6531 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7465 | 6530 | 319 | 319 | 4.27% | 4.89% |  |
| D | 7466 | 6531 | 107 | 107 | 1.43% | 1.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 102924 | 618.56 | 826 | 809 | 165.1 |
| A | 13 | 254 | 12414 | 70.3 | 826 | 809 | 165.1 |
| A | 8 | 192 | 10647 | 59.59 | 826 | 809 | 165.1 |
| B | 6 | 159 | 1868380 | 12065.46 | 815 | 795 | 154.8 |
| B | 0 | 230 | 24698 | 154.42 | 815 | 795 | 154.8 |
| B | 0 | 190 | 21212 | 131.9 | 815 | 795 | 154.8 |
| C | 3 | 233 | 4612222 | 25170.36 | 783 | 787 | 183.2 |
| C | 14 | 238 | 122184 | 662.61 | 783 | 787 | 183.2 |
| C | 15 | 208 | 17497 | 91.21 | 783 | 787 | 183.2 |
| D | 11 | 176 | 251061 | 1236.84 | 815 | 796 | 202.3 |
| D | 1 | 52 | 224701 | 1106.56 | 815 | 796 | 202.3 |
| D | 10 | 199 | 156780 | 770.89 | 815 | 796 | 202.3 |

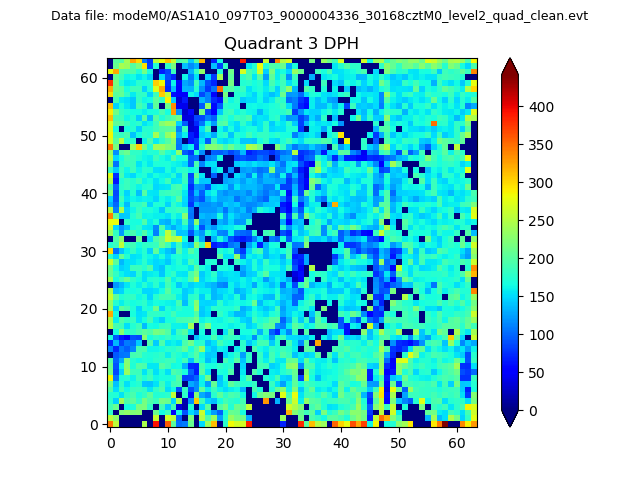

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

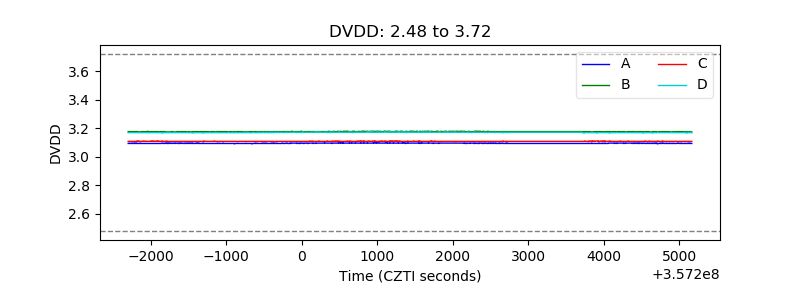

| D_VDD |  |

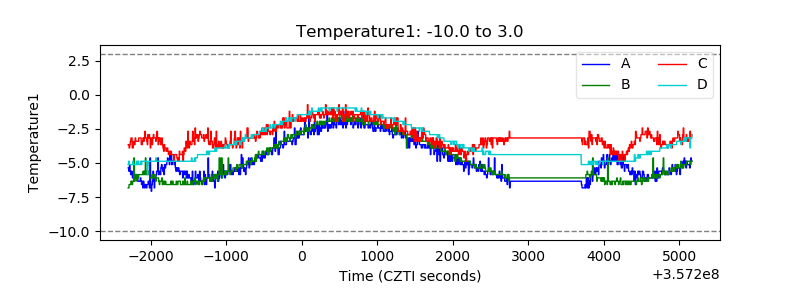

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

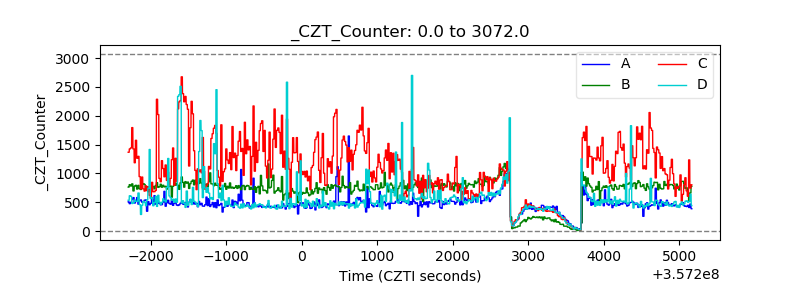

| CZT Counter |  |
