| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_021T06_9000004338_30170cztM0_level2.evt | modeM0/AS1A10_021T06_9000004338_30170cztM0_level2_quad_clean.evt |
| Size (bytes) | 157,127,040 | 5,633,280 |
| Size | 149.8 MB | 5.4 MB |
| Events in quadrant A | 871,655 | 13,446 |
| Events in quadrant B | 1,301,703 | 13,476 |
| Events in quadrant C | 1,539,670 | 12,210 |
| Events in quadrant D | 934,916 | 12,798 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3581 | 1 |
| B | 0 | 4856 | 1 |
| C | 0 | 5765 | 1 |
| D | 0 | 3774 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1603 | 49 | 3.056769% |
| B | 1603 | 72 | 4.491578% |
| C | 1603 | 141 | 8.796007% |
| D | 1602 | 29 | 1.810237% |

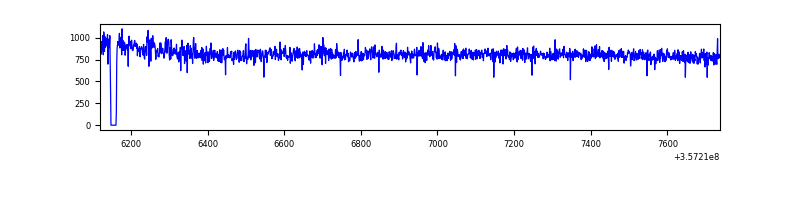

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1618 | 1604 | 7 | 7 | 0.43% | 0.44% |  |
| B | 1618 | 1604 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1618 | 1604 | 2 | 2 | 0.12% | 0.12% |  |
| D | 1617 | 1603 | 15 | 15 | 0.93% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 66805 | 1502.17 | 208 | 203 | 44.3 |
| A | 13 | 254 | 2817 | 58.96 | 208 | 203 | 44.3 |
| A | 3 | 137 | 2306 | 47.43 | 208 | 203 | 44.3 |
| B | 6 | 159 | 478238 | 11260.35 | 206 | 200 | 42.5 |
| B | 6 | 36 | 10130 | 233.9 | 206 | 200 | 42.5 |
| B | 12 | 111 | 5222 | 118.29 | 206 | 200 | 42.5 |
| C | 3 | 233 | 741640 | 15642.46 | 195 | 196 | 47.4 |
| C | 14 | 238 | 31536 | 661.19 | 195 | 196 | 47.4 |
| C | 2 | 114 | 3642 | 72.7 | 195 | 196 | 47.4 |
| D | 1 | 52 | 113345 | 2313.74 | 198 | 192 | 48.9 |
| D | 5 | 81 | 32596 | 662.59 | 198 | 192 | 48.9 |
| D | 8 | 195 | 28151 | 571.7 | 198 | 192 | 48.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

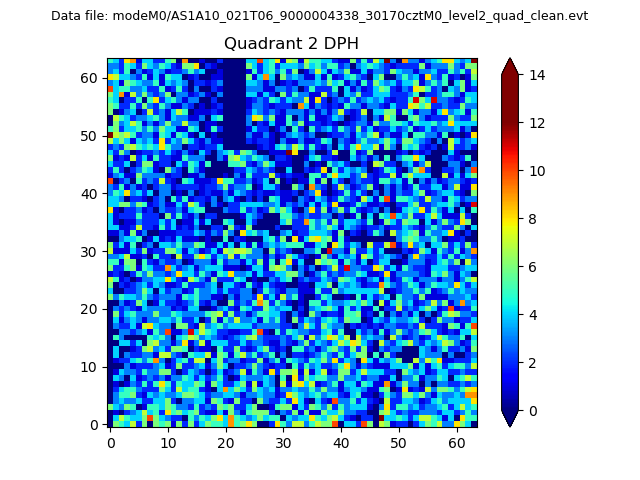

| Quadrant D |  |
 |
Quadrant C |

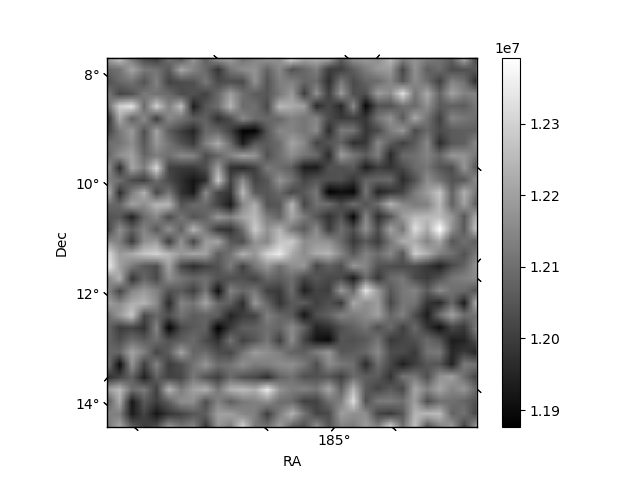

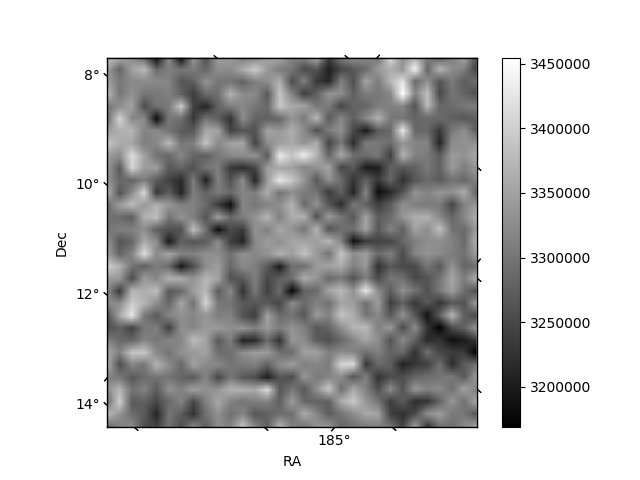

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

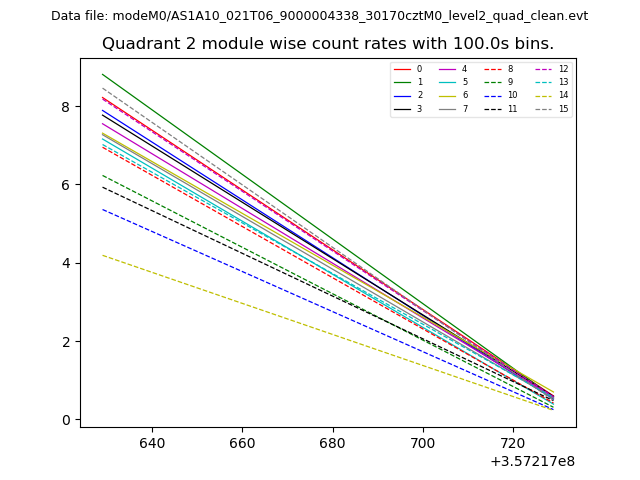

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

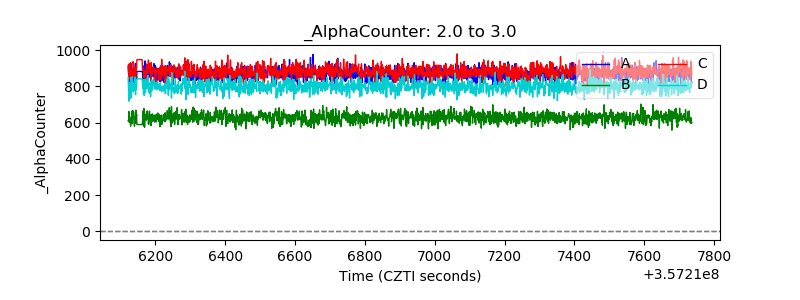

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

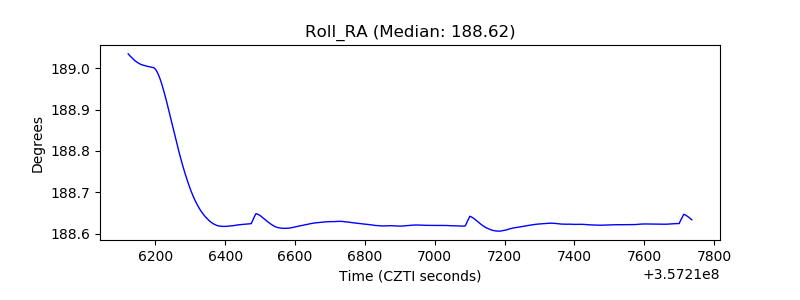

| _Roll_RA |  |

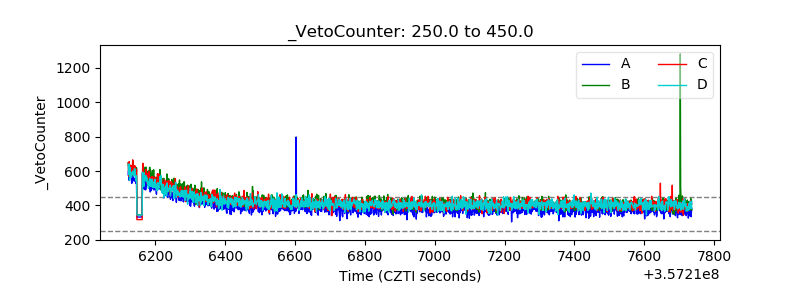

| Veto Counter |  |
