| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T01_9000004340_30178cztM0_level2.evt | modeM0/AS1A10_102T01_9000004340_30178cztM0_level2_quad_clean.evt |
| Size (bytes) | 741,997,440 | 91,647,360 |
| Size | 707.6 MB | 87.4 MB |
| Events in quadrant A | 3,192,430 | 621,653 |
| Events in quadrant B | 5,040,619 | 631,606 |
| Events in quadrant C | 8,666,749 | 537,092 |
| Events in quadrant D | 5,142,392 | 539,914 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13532 | 2 |
| B | 0 | 19260 | 2 |
| C | 0 | 30272 | 2 |
| D | 0 | 19735 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6367 | 63 | 0.989477% |
| B | 6366 | 94 | 1.476594% |
| C | 6366 | 1461 | 22.950047% |
| D | 6366 | 552 | 8.671065% |

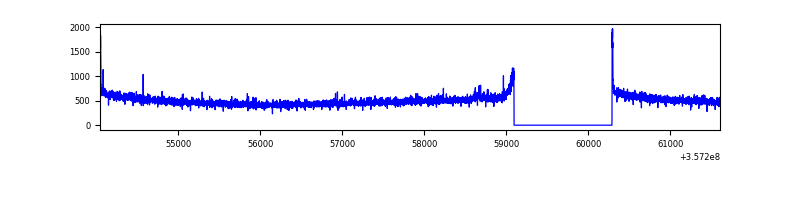

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7562 | 6368 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7561 | 6367 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7561 | 6366 | 689 | 689 | 9.11% | 10.82% |  |
| D | 7561 | 6367 | 335 | 335 | 4.43% | 5.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 24589 | 144.25 | 819 | 801 | 164.9 |
| A | 13 | 254 | 10754 | 60.36 | 819 | 801 | 164.9 |
| A | 3 | 137 | 7978 | 43.52 | 819 | 801 | 164.9 |
| B | 6 | 159 | 1837335 | 11838.87 | 816 | 795 | 155.1 |
| B | 12 | 111 | 19110 | 118.06 | 816 | 795 | 155.1 |
| B | 11 | 111 | 17225 | 105.91 | 816 | 795 | 155.1 |
| C | 3 | 233 | 5516584 | 31548.89 | 745 | 752 | 174.8 |
| C | 14 | 238 | 150290 | 855.31 | 745 | 752 | 174.8 |
| C | 14 | 254 | 48704 | 274.27 | 745 | 752 | 174.8 |
| D | 1 | 52 | 1855578 | 9880.28 | 745 | 729 | 187.7 |
| D | 8 | 195 | 173511 | 920.36 | 745 | 729 | 187.7 |
| D | 13 | 104 | 139214 | 737.67 | 745 | 729 | 187.7 |

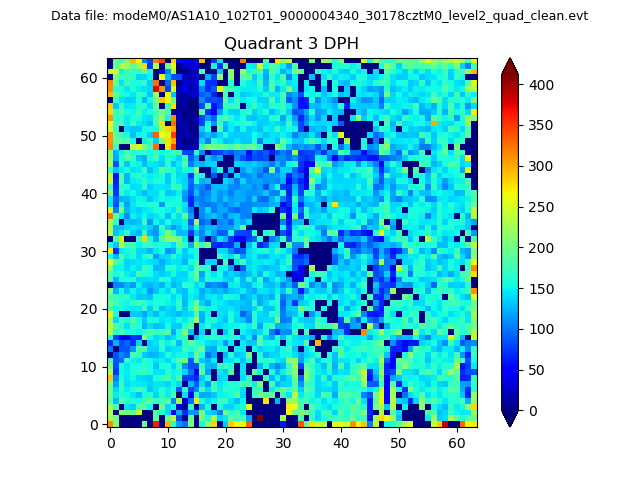

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

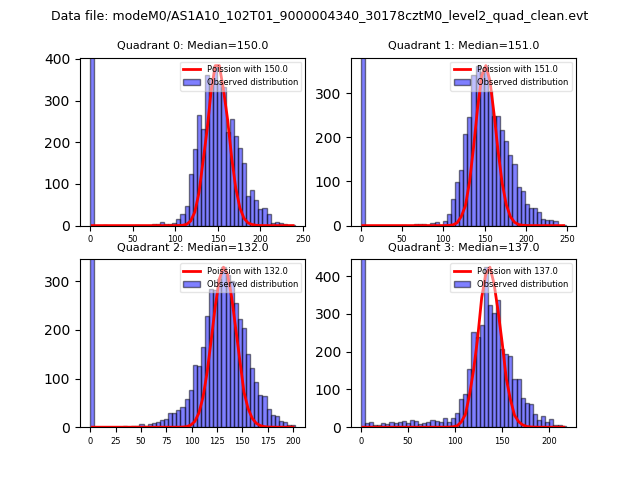

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

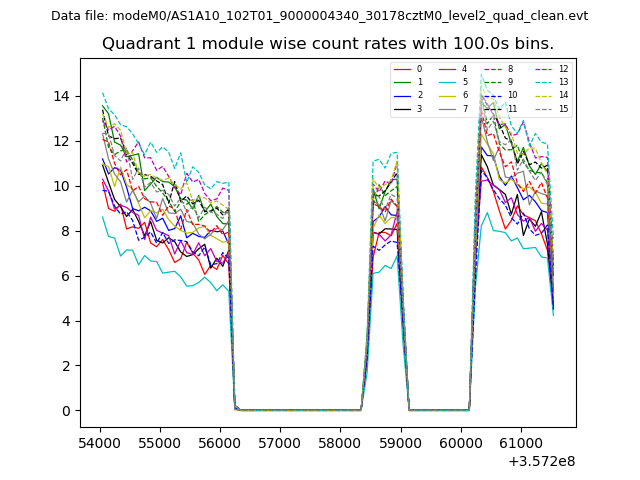

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

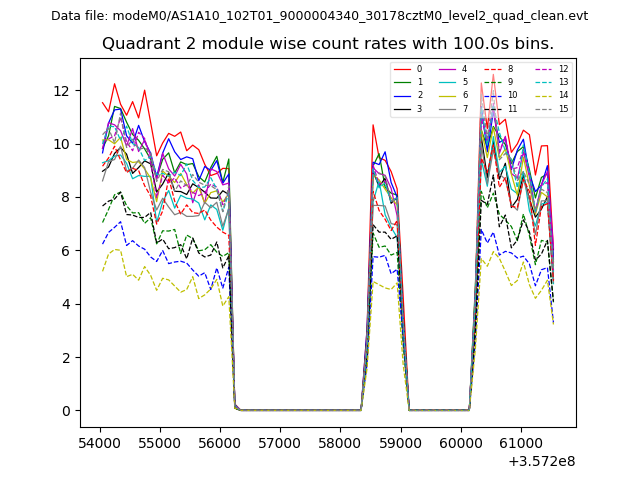

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

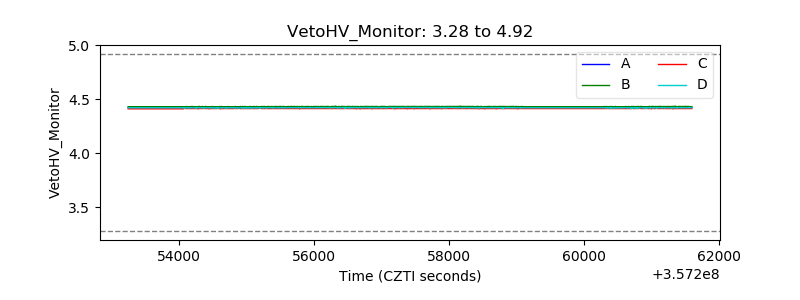

| Veto HV Monitor |  |
| Veto LLD |  |

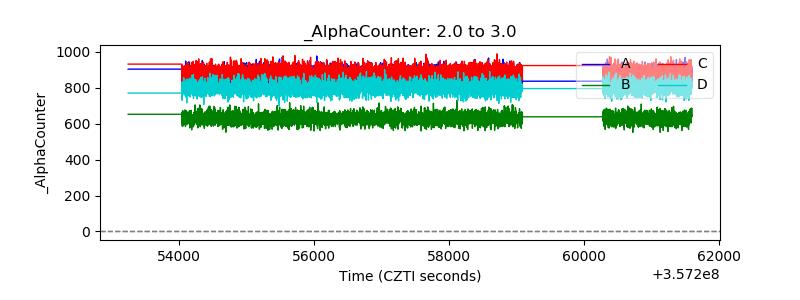

| Alpha Counter |  |
| _CPM_Rate |  |

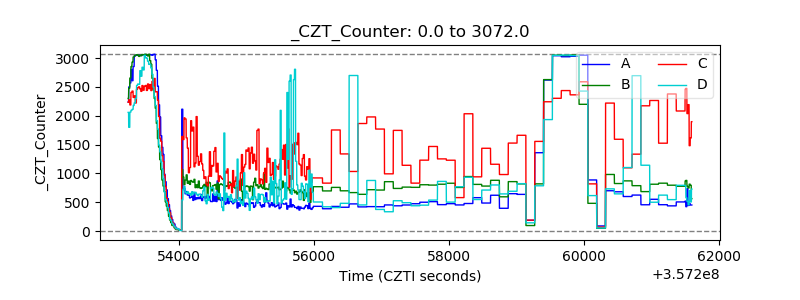

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
