| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_050T05_9000004342_30190cztM0_level2.evt | modeM0/AS1A10_050T05_9000004342_30190cztM0_level2_quad_clean.evt |
| Size (bytes) | 646,473,600 | 81,495,360 |
| Size | 616.5 MB | 77.7 MB |
| Events in quadrant A | 2,999,993 | 526,340 |
| Events in quadrant B | 4,799,446 | 522,054 |
| Events in quadrant C | 7,333,895 | 485,856 |
| Events in quadrant D | 4,030,651 | 504,633 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12829 | 1 |
| B | 0 | 18625 | 1 |
| C | 0 | 26139 | 1 |
| D | 0 | 16095 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6138 | 58 | 0.944933% |
| B | 6139 | 85 | 1.384590% |
| C | 6139 | 905 | 14.741815% |
| D | 6139 | 130 | 2.117609% |

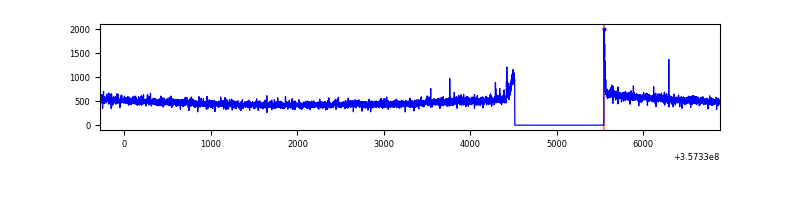

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7168 | 6138 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7169 | 6139 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7169 | 6139 | 280 | 280 | 3.91% | 4.56% |  |
| D | 7169 | 6140 | 87 | 87 | 1.21% | 1.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 14720 | 89.76 | 769 | 754 | 155.6 |
| A | 14 | 254 | 13585 | 82.47 | 769 | 754 | 155.6 |
| A | 13 | 254 | 11523 | 69.21 | 769 | 754 | 155.6 |
| B | 6 | 159 | 1776183 | 12082.34 | 761 | 740 | 146.9 |
| B | 0 | 230 | 25370 | 167.61 | 761 | 740 | 146.9 |
| B | 12 | 111 | 17842 | 116.38 | 761 | 740 | 146.9 |
| C | 3 | 233 | 4411673 | 26267.81 | 713 | 716 | 167.9 |
| C | 14 | 238 | 115761 | 685.11 | 713 | 716 | 167.9 |
| C | 15 | 208 | 16805 | 95.81 | 713 | 716 | 167.9 |
| D | 13 | 249 | 300416 | 1602.01 | 739 | 726 | 187.1 |
| D | 7 | 223 | 287524 | 1533.09 | 739 | 726 | 187.1 |
| D | 8 | 195 | 278457 | 1484.62 | 739 | 726 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

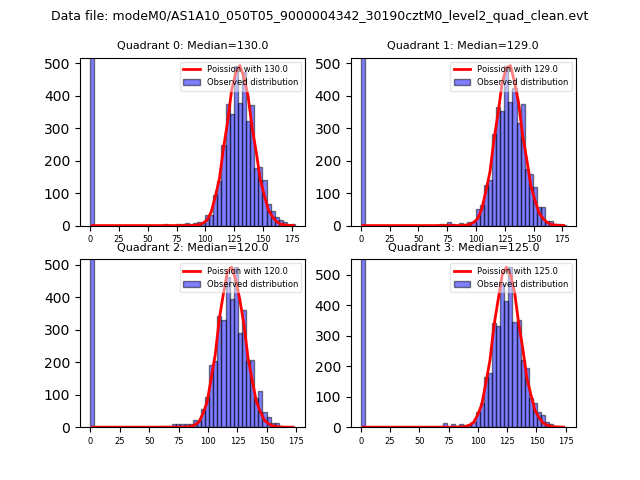

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

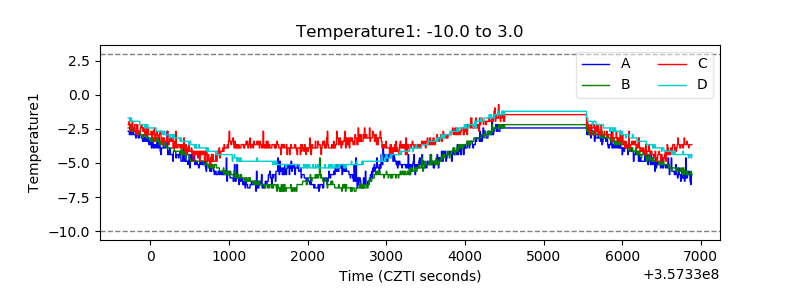

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

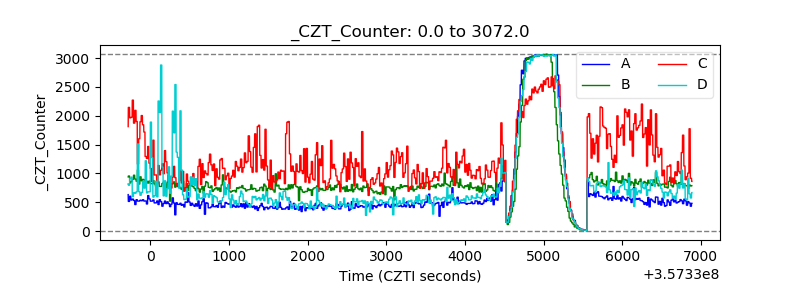

| CZT Counter |  |

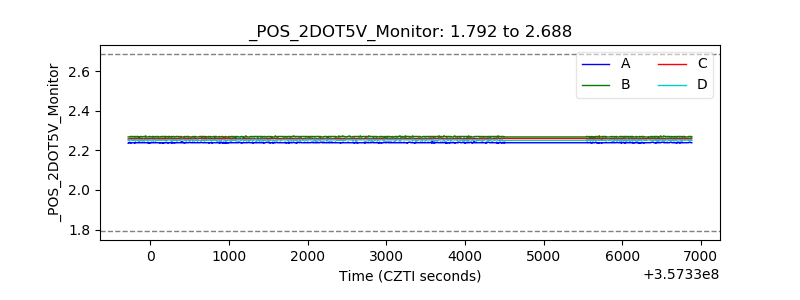

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

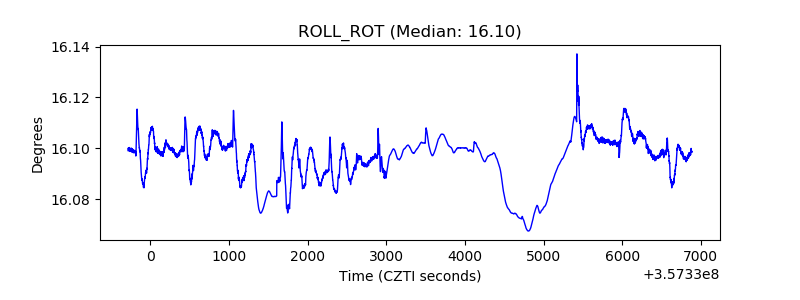

| _ROLL_ROT |  |

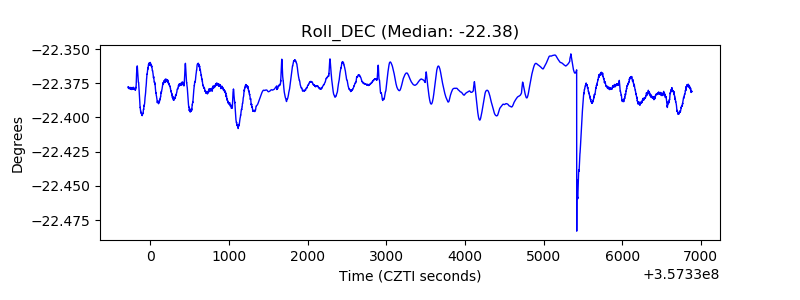

| _Roll_DEC |  |

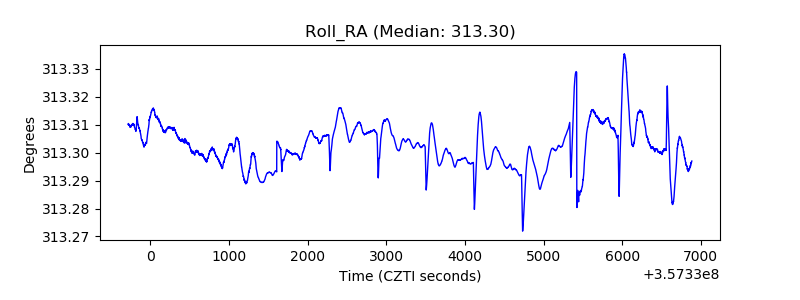

| _Roll_RA |  |
| Veto Counter |  |
