| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T09_9000004344_30194cztM0_level2.evt | modeM0/AS1A10_071T09_9000004344_30194cztM0_level2_quad_clean.evt |
| Size (bytes) | 598,288,320 | 97,122,240 |
| Size | 570.6 MB | 92.6 MB |
| Events in quadrant A | 3,401,769 | 644,297 |
| Events in quadrant B | 5,014,522 | 663,780 |
| Events in quadrant C | 5,185,696 | 606,512 |
| Events in quadrant D | 4,102,259 | 597,711 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13814 | 2 |
| B | 0 | 18790 | 2 |
| C | 0 | 19947 | 2 |
| D | 0 | 16323 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6142 | 59 | 0.960599% |
| B | 6141 | 74 | 1.205015% |
| C | 6141 | 189 | 3.077675% |
| D | 6141 | 100 | 1.628399% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

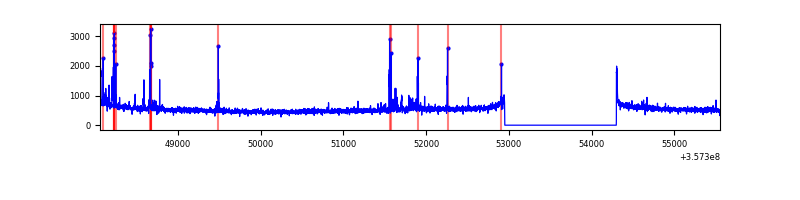

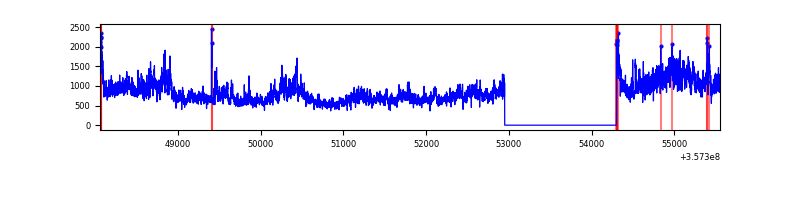

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7492 | 6143 | 16 | 16 | 0.21% | 0.26% |  |
| B | 7491 | 6142 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7491 | 6142 | 21 | 21 | 0.28% | 0.34% |  |
| D | 7491 | 6142 | 87 | 87 | 1.16% | 1.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 159523 | 960.48 | 830 | 818 | 165.2 |
| A | 8 | 192 | 28862 | 169.72 | 830 | 818 | 165.2 |
| A | 13 | 254 | 11463 | 64.42 | 830 | 818 | 165.2 |
| B | 6 | 159 | 1751105 | 11144.25 | 833 | 813 | 157.1 |
| B | 12 | 111 | 18707 | 113.93 | 833 | 813 | 157.1 |
| B | 11 | 111 | 17113 | 103.78 | 833 | 813 | 157.1 |
| C | 3 | 233 | 1939758 | 10606.28 | 792 | 801 | 182.8 |
| C | 14 | 238 | 130063 | 707.08 | 792 | 801 | 182.8 |
| C | 2 | 114 | 14449 | 74.66 | 792 | 801 | 182.8 |
| D | 13 | 104 | 323266 | 1733.33 | 787 | 769 | 186.1 |
| D | 7 | 223 | 307817 | 1650.29 | 787 | 769 | 186.1 |
| D | 8 | 195 | 228707 | 1225.1 | 787 | 769 | 186.1 |

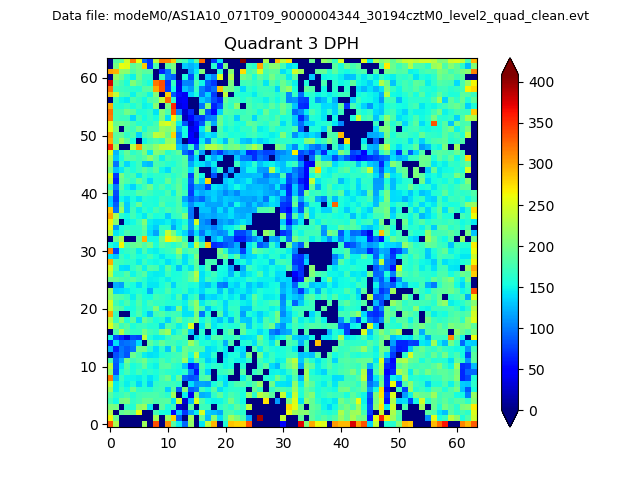

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

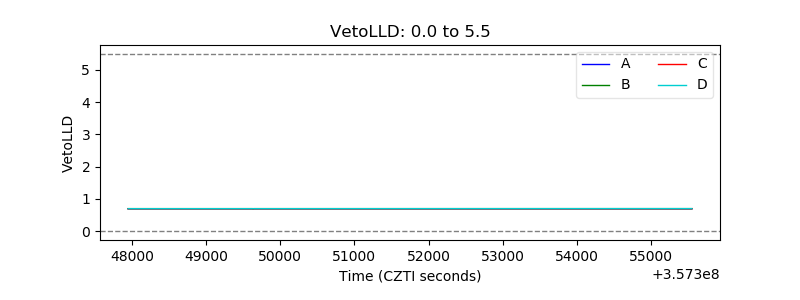

| Veto LLD |  |
| Alpha Counter |  |

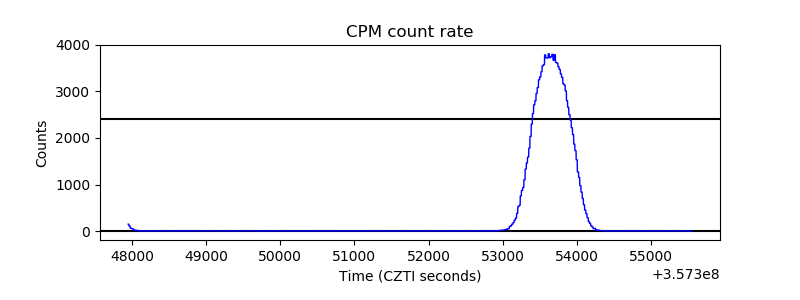

| _CPM_Rate |  |

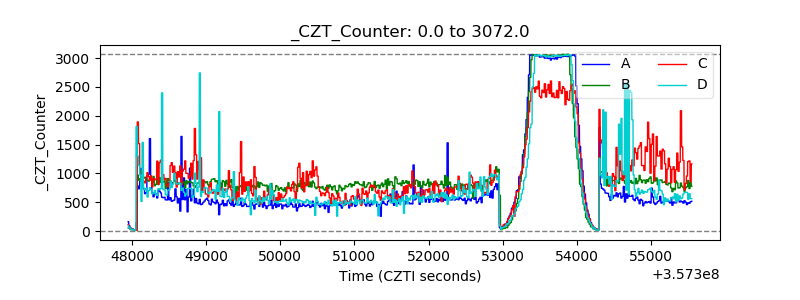

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

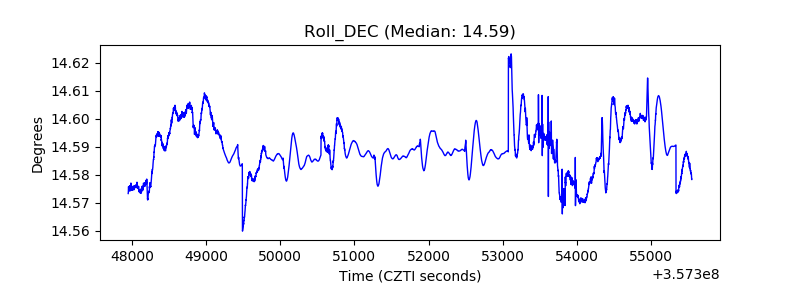

| _Roll_DEC |  |

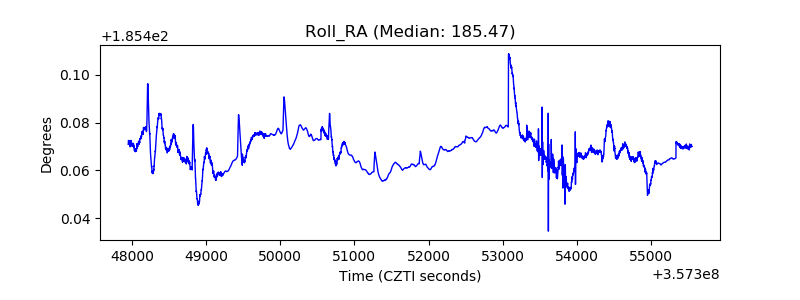

| _Roll_RA |  |
| Veto Counter |  |
