| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T09_9000004344_30198cztM0_level2.evt | modeM0/AS1A10_071T09_9000004344_30198cztM0_level2_quad_clean.evt |
| Size (bytes) | 729,803,520 | 85,976,640 |
| Size | 696.0 MB | 82.0 MB |
| Events in quadrant A | 3,923,603 | 535,002 |
| Events in quadrant B | 5,783,760 | 536,729 |
| Events in quadrant C | 7,090,231 | 501,236 |
| Events in quadrant D | 4,792,850 | 502,728 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16300 | 2 |
| B | 0 | 23098 | 2 |
| C | 0 | 26547 | 2 |
| D | 0 | 18961 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7579 | 176 | 2.322206% |
| B | 7580 | 275 | 3.627968% |
| C | 7580 | 547 | 7.216359% |
| D | 7580 | 230 | 3.034301% |

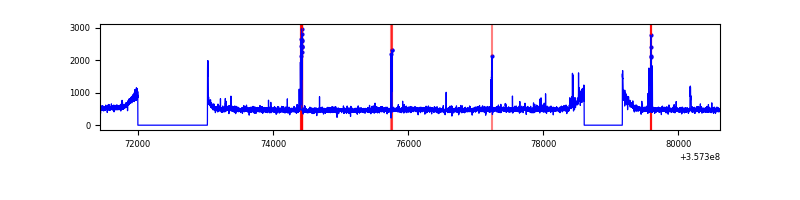

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9174 | 7581 | 19 | 19 | 0.21% | 0.25% |  |
| B | 9175 | 7581 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9175 | 7581 | 38 | 38 | 0.41% | 0.50% |  |
| D | 9175 | 7582 | 137 | 137 | 1.49% | 1.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 119663 | 604.81 | 975 | 954 | 196.3 |
| A | 8 | 192 | 23482 | 114.78 | 975 | 954 | 196.3 |
| A | 13 | 254 | 13274 | 62.77 | 975 | 954 | 196.3 |
| B | 6 | 159 | 1999343 | 10701.14 | 961 | 935 | 186.7 |
| B | 12 | 111 | 24000 | 123.51 | 961 | 935 | 186.7 |
| B | 11 | 111 | 22096 | 113.31 | 961 | 935 | 186.7 |
| C | 3 | 233 | 3331833 | 15444.64 | 916 | 922 | 215.7 |
| C | 14 | 238 | 146760 | 676.22 | 916 | 922 | 215.7 |
| C | 15 | 208 | 20960 | 92.91 | 916 | 922 | 215.7 |
| D | 13 | 104 | 400819 | 1787.16 | 929 | 908 | 223.8 |
| D | 7 | 223 | 339109 | 1511.39 | 929 | 908 | 223.8 |
| D | 8 | 195 | 226847 | 1009.7 | 929 | 908 | 223.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

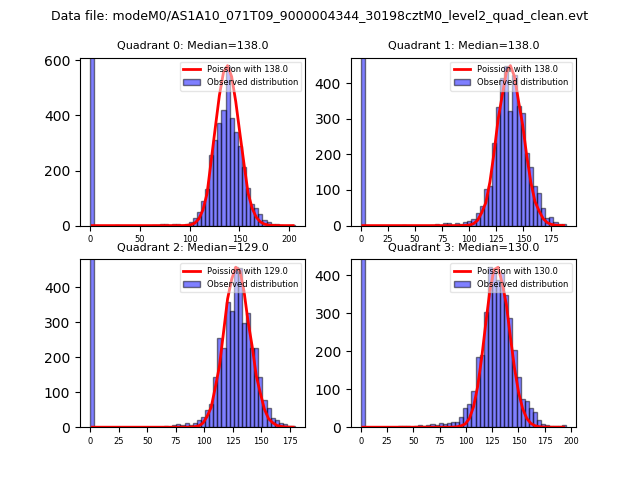

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

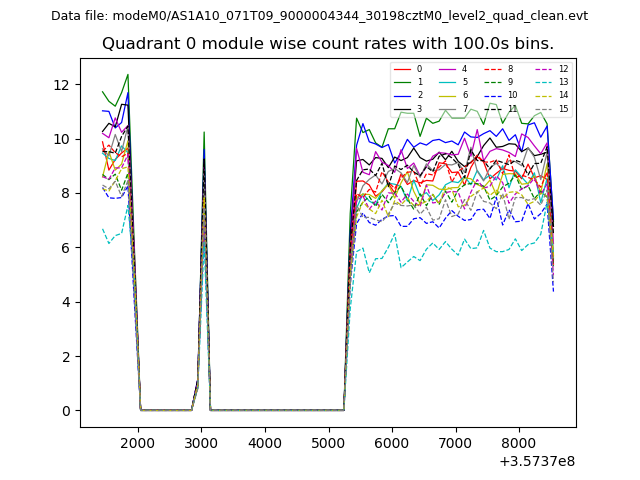

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

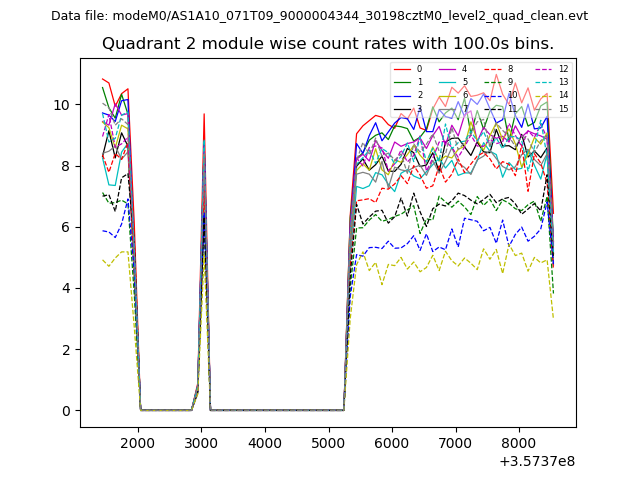

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

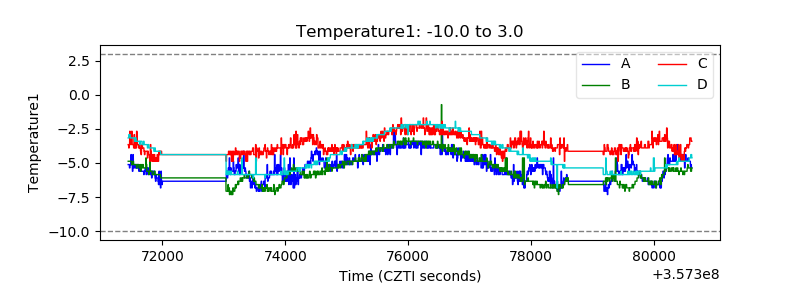

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

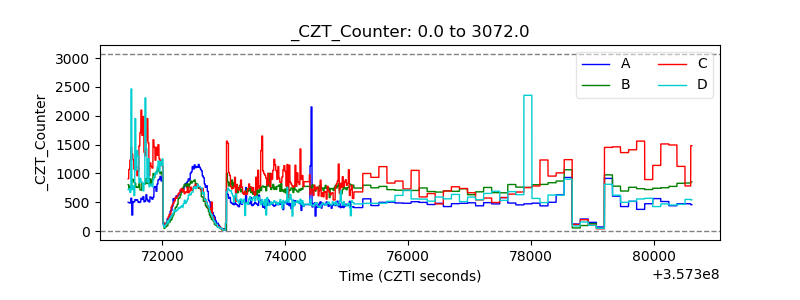

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

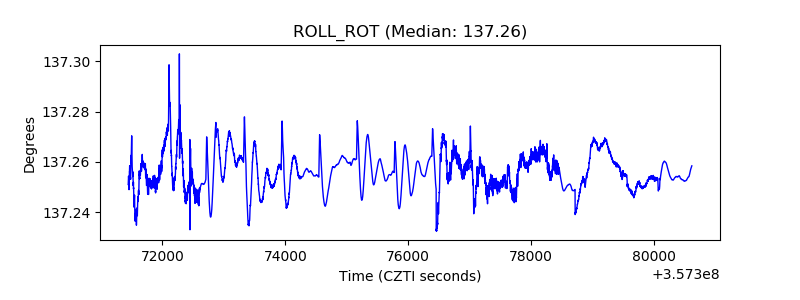

| _ROLL_ROT |  |

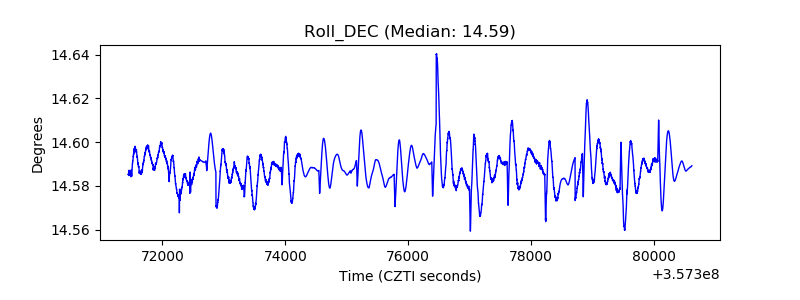

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
