| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T15_9000004346_30208cztM0_level2.evt | modeM0/AS1A10_071T15_9000004346_30208cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,049,920 | 96,399,360 |
| Size | 500.7 MB | 91.9 MB |
| Events in quadrant A | 3,187,767 | 636,954 |
| Events in quadrant B | 4,998,281 | 651,466 |
| Events in quadrant C | 3,232,478 | 615,450 |
| Events in quadrant D | 4,066,614 | 586,400 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13239 | 2 |
| B | 0 | 18718 | 2 |
| C | 0 | 13351 | 2 |
| D | 0 | 15998 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6142 | 53 | 0.862911% |
| B | 6142 | 89 | 1.449039% |
| C | 6142 | 71 | 1.155975% |
| D | 6142 | 157 | 2.556171% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7472 | 6143 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7472 | 6143 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7472 | 6143 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7472 | 6143 | 111 | 111 | 1.49% | 1.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 27894 | 166.19 | 818 | 804 | 163.0 |
| A | 13 | 254 | 10969 | 62.36 | 818 | 804 | 163.0 |
| A | 3 | 137 | 7694 | 42.27 | 818 | 804 | 163.0 |
| B | 6 | 159 | 1789619 | 11526.81 | 819 | 800 | 155.2 |
| B | 12 | 111 | 18292 | 112.72 | 819 | 800 | 155.2 |
| B | 11 | 111 | 16957 | 104.11 | 819 | 800 | 155.2 |
| C | 14 | 238 | 129142 | 699.88 | 787 | 793 | 183.4 |
| C | 3 | 233 | 18096 | 94.35 | 787 | 793 | 183.4 |
| C | 2 | 114 | 14430 | 74.36 | 787 | 793 | 183.4 |
| D | 7 | 223 | 377479 | 2046.05 | 775 | 760 | 184.1 |
| D | 13 | 104 | 367060 | 1989.46 | 775 | 760 | 184.1 |
| D | 8 | 195 | 261001 | 1413.43 | 775 | 760 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

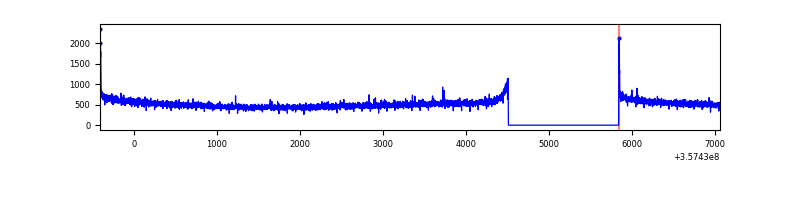

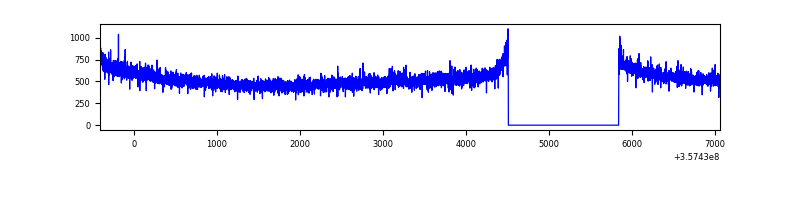

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

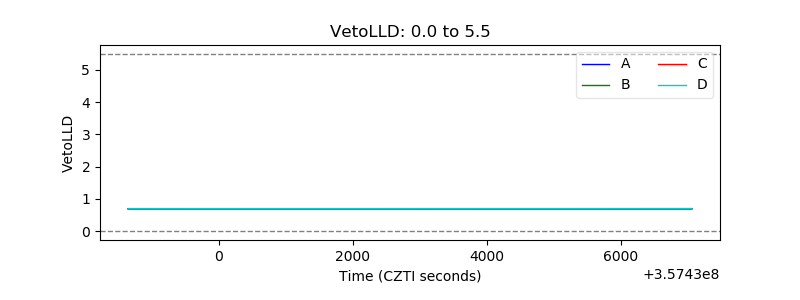

| Veto LLD |  |

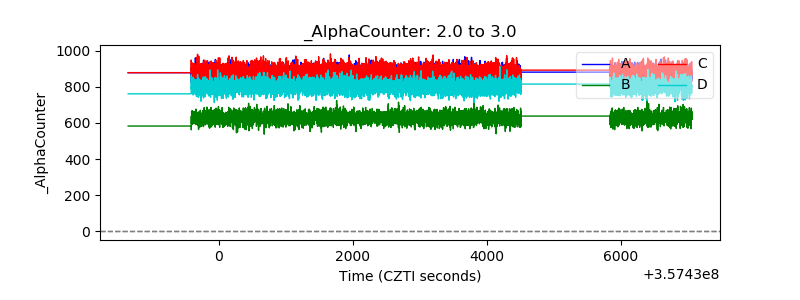

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

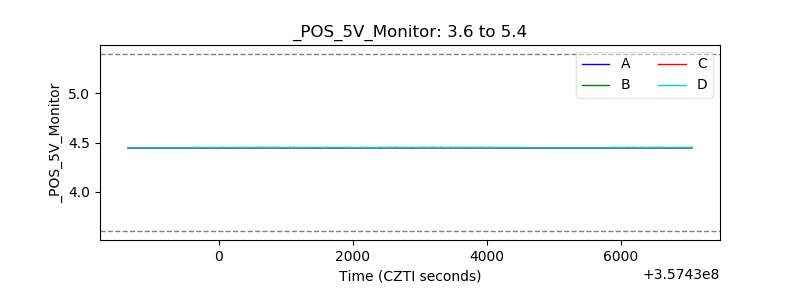

| +5 Volts monitor |  |

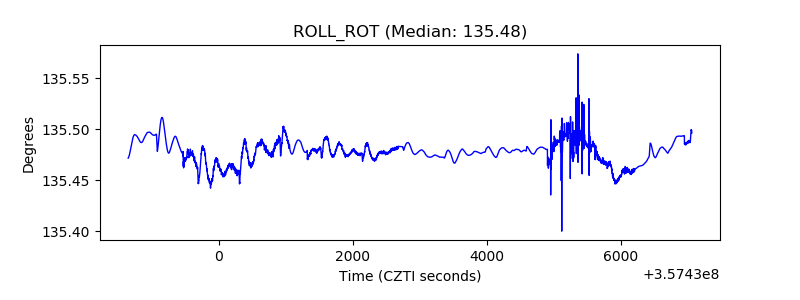

| _ROLL_ROT |  |

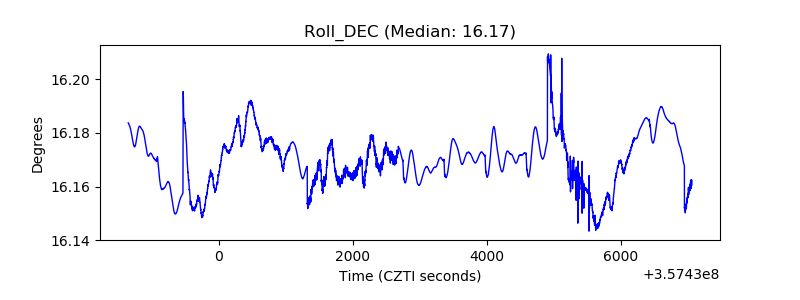

| _Roll_DEC |  |
| _Roll_RA |  |

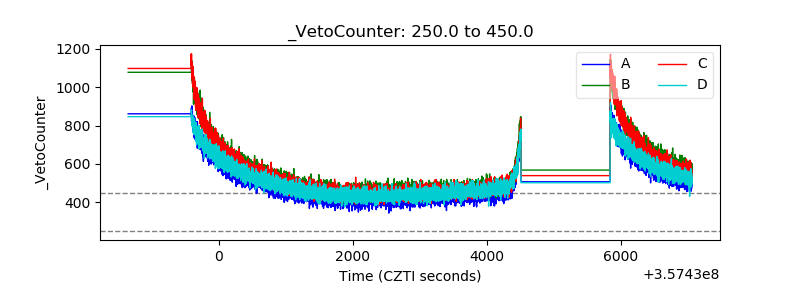

| Veto Counter |  |
