| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30237cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30237cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,295,040 | 111,781,440 |
| Size | 564.9 MB | 106.6 MB |
| Events in quadrant A | 4,795,632 | 716,987 |
| Events in quadrant B | 5,349,753 | 767,003 |
| Events in quadrant C | 3,553,138 | 748,194 |
| Events in quadrant D | 3,801,278 | 701,676 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18571 | 2 |
| B | 0 | 20162 | 2 |
| C | 0 | 14541 | 2 |
| D | 0 | 15376 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6478 | 304 | 4.692806% |
| B | 6478 | 133 | 2.053103% |
| C | 6479 | 111 | 1.713227% |
| D | 6479 | 148 | 2.284303% |

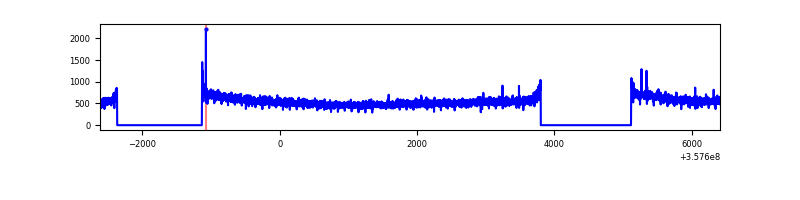

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9028 | 6480 | 231 | 231 | 2.56% | 3.56% |  |
| B | 9028 | 6480 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9029 | 6481 | 1 | 1 | 0.01% | 0.02% |  |
| D | 9029 | 6481 | 128 | 128 | 1.42% | 1.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 857649 | 4971.61 | 863 | 848 | 172.3 |
| A | 0 | 13 | 571850 | 3313.25 | 863 | 848 | 172.3 |
| A | 8 | 192 | 26434 | 148.46 | 863 | 848 | 172.3 |
| B | 6 | 159 | 1840693 | 11130.27 | 882 | 861 | 165.3 |
| B | 0 | 229 | 28235 | 165.6 | 882 | 861 | 165.3 |
| B | 12 | 111 | 19650 | 113.66 | 882 | 861 | 165.3 |
| C | 14 | 238 | 143201 | 708.34 | 864 | 874 | 200.9 |
| C | 3 | 233 | 26146 | 125.78 | 864 | 874 | 200.9 |
| C | 2 | 114 | 15150 | 71.05 | 864 | 874 | 200.9 |
| D | 13 | 104 | 277443 | 1366.27 | 838 | 821 | 202.5 |
| D | 8 | 195 | 274539 | 1351.93 | 838 | 821 | 202.5 |
| D | 2 | 250 | 34091 | 164.32 | 838 | 821 | 202.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

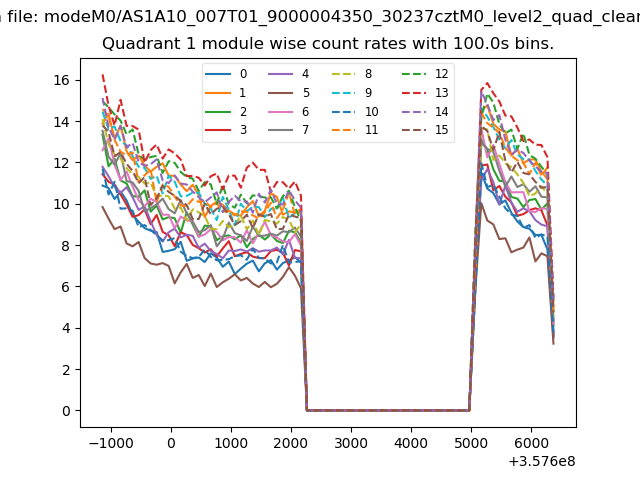

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

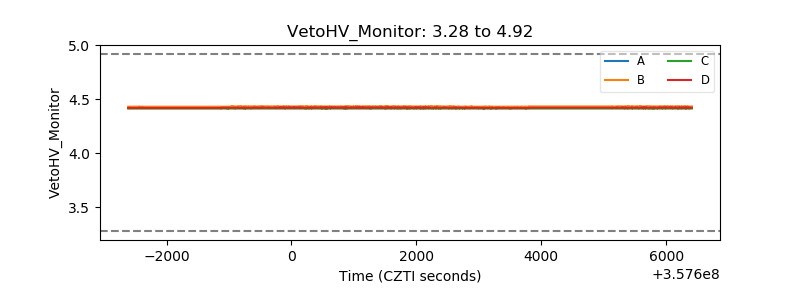

| Veto HV Monitor |  |

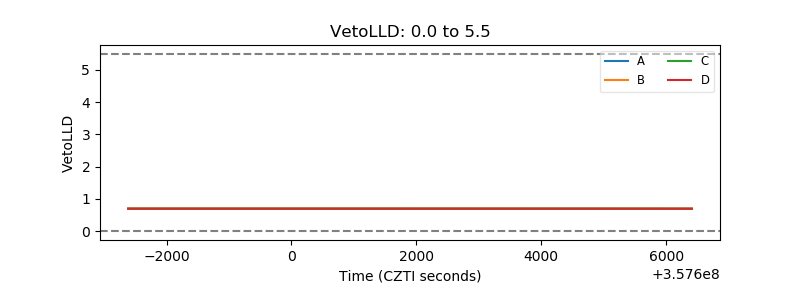

| Veto LLD |  |
| Alpha Counter |  |

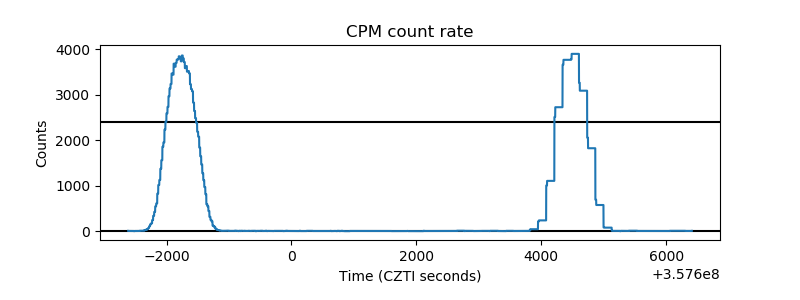

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

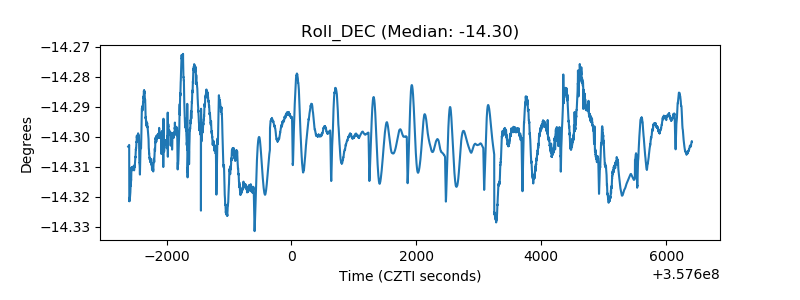

| _Roll_DEC |  |

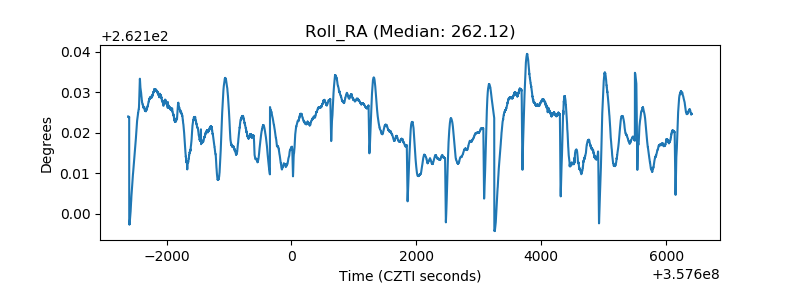

| _Roll_RA |  |

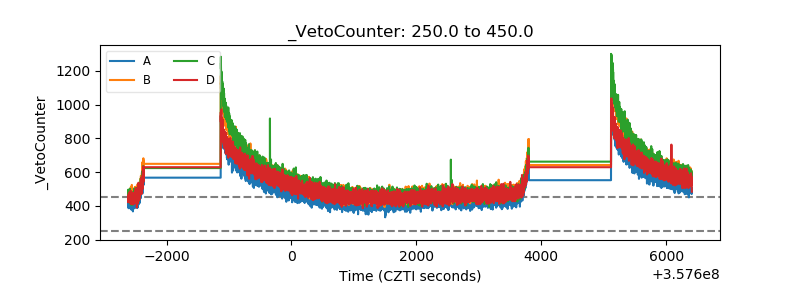

| Veto Counter |  |
