| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30240cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30240cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,359,360 | 106,032,960 |
| Size | 533.4 MB | 101.1 MB |
| Events in quadrant A | 3,535,313 | 686,937 |
| Events in quadrant B | 5,521,020 | 694,519 |
| Events in quadrant C | 3,655,415 | 679,056 |
| Events in quadrant D | 3,761,216 | 669,919 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14588 | 2 |
| B | 0 | 21151 | 2 |
| C | 0 | 14881 | 2 |
| D | 0 | 15241 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6900 | 88 | 1.275362% |
| B | 6900 | 182 | 2.637681% |
| C | 6900 | 138 | 2.000000% |
| D | 6900 | 66 | 0.956522% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8005 | 6901 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8005 | 6900 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8005 | 6901 | 6 | 6 | 0.07% | 0.09% |  |
| D | 8005 | 6901 | 7 | 7 | 0.09% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 20653 | 107.99 | 909 | 891 | 183.0 |
| A | 13 | 254 | 12012 | 60.77 | 909 | 891 | 183.0 |
| A | 3 | 137 | 8794 | 43.19 | 909 | 891 | 183.0 |
| B | 6 | 159 | 1936499 | 11246.5 | 896 | 874 | 172.1 |
| B | 0 | 229 | 61751 | 353.71 | 896 | 874 | 172.1 |
| B | 12 | 111 | 20524 | 114.17 | 896 | 874 | 172.1 |
| C | 14 | 238 | 142347 | 689.72 | 878 | 885 | 205.1 |
| C | 3 | 233 | 75089 | 361.79 | 878 | 885 | 205.1 |
| C | 2 | 114 | 16246 | 74.9 | 878 | 885 | 205.1 |
| D | 8 | 195 | 311811 | 1451.01 | 887 | 870 | 214.3 |
| D | 2 | 234 | 25880 | 116.71 | 887 | 870 | 214.3 |
| D | 1 | 52 | 24225 | 108.99 | 887 | 870 | 214.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

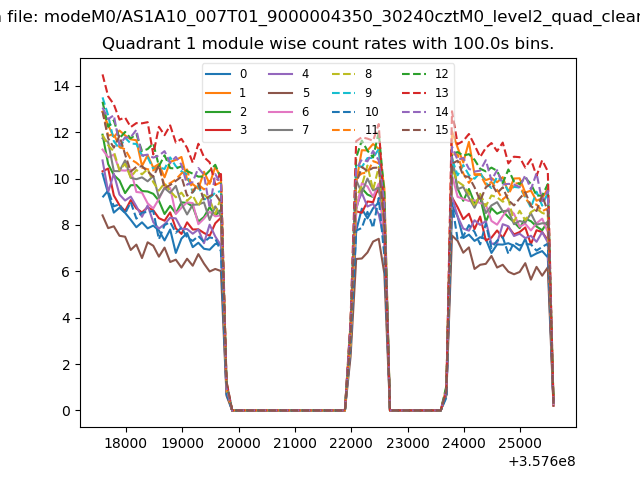

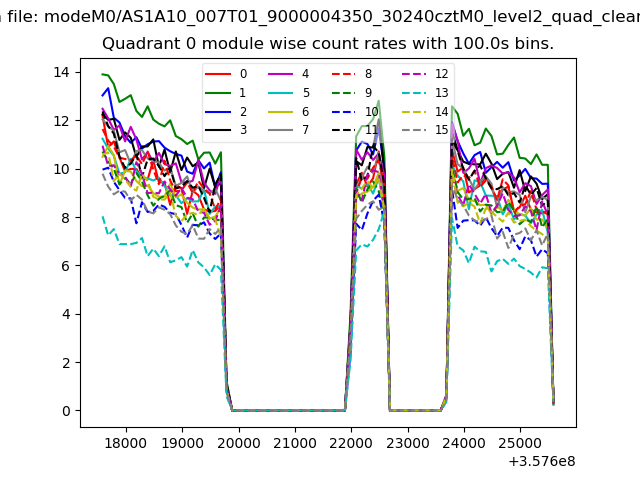

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

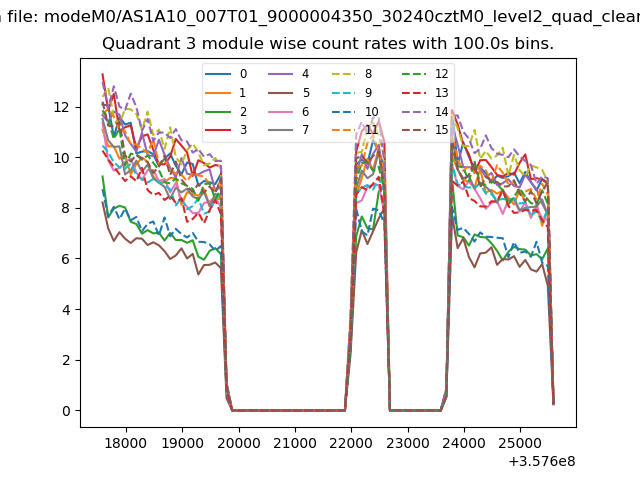

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
