| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30247cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30247cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,421,120 | 85,291,200 |
| Size | 523.0 MB | 81.3 MB |
| Events in quadrant A | 3,493,365 | 528,800 |
| Events in quadrant B | 5,505,224 | 529,790 |
| Events in quadrant C | 3,555,812 | 515,140 |
| Events in quadrant D | 3,573,757 | 515,127 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14793 | 2 |
| B | 0 | 21462 | 2 |
| C | 0 | 14884 | 2 |
| D | 0 | 15082 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7091 | 75 | 1.057679% |
| B | 7092 | 123 | 1.734349% |
| C | 7092 | 202 | 2.848280% |
| D | 7091 | 34 | 0.479481% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8711 | 7093 | 10 | 10 | 0.11% | 0.14% |  |
| B | 8712 | 7094 | 6 | 6 | 0.07% | 0.08% |  |
| C | 8712 | 7093 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8711 | 7092 | 5 | 5 | 0.06% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 73991 | 413.49 | 878 | 858 | 176.9 |
| A | 8 | 192 | 27191 | 148.89 | 878 | 858 | 176.9 |
| A | 13 | 254 | 13067 | 69.03 | 878 | 858 | 176.9 |
| B | 6 | 159 | 2016968 | 11858.04 | 869 | 847 | 170.0 |
| B | 6 | 36 | 30345 | 173.5 | 869 | 847 | 170.0 |
| B | 0 | 229 | 24489 | 139.05 | 869 | 847 | 170.0 |
| C | 14 | 238 | 179950 | 901.56 | 841 | 846 | 198.7 |
| C | 14 | 254 | 65431 | 325.1 | 841 | 846 | 198.7 |
| C | 2 | 114 | 16419 | 78.39 | 841 | 846 | 198.7 |
| D | 8 | 195 | 254736 | 1203.63 | 852 | 831 | 210.9 |
| D | 2 | 234 | 32478 | 150.02 | 852 | 831 | 210.9 |
| D | 10 | 199 | 31132 | 143.64 | 852 | 831 | 210.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

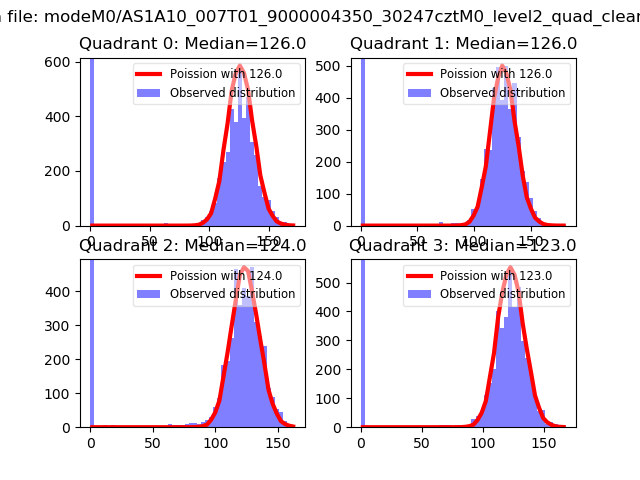

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

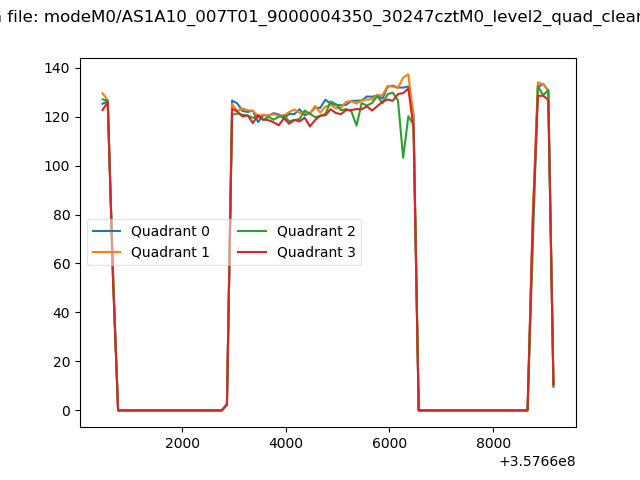

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

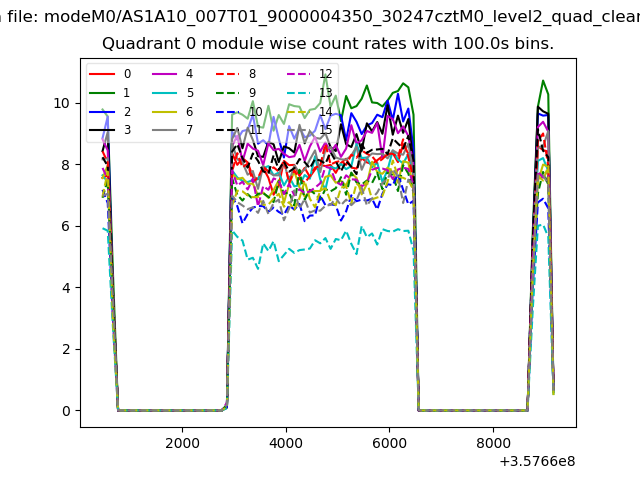

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

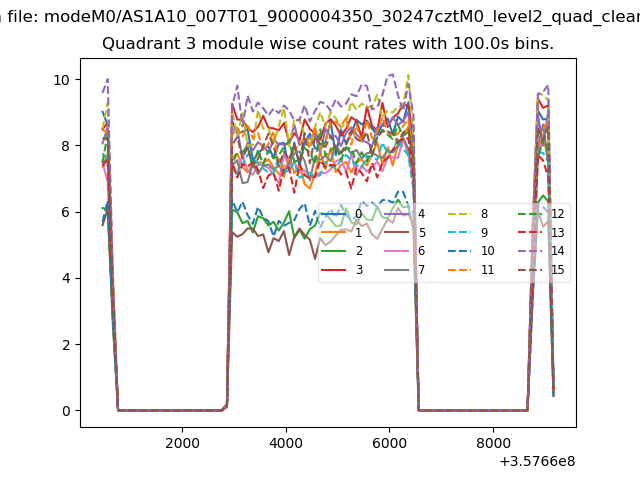

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

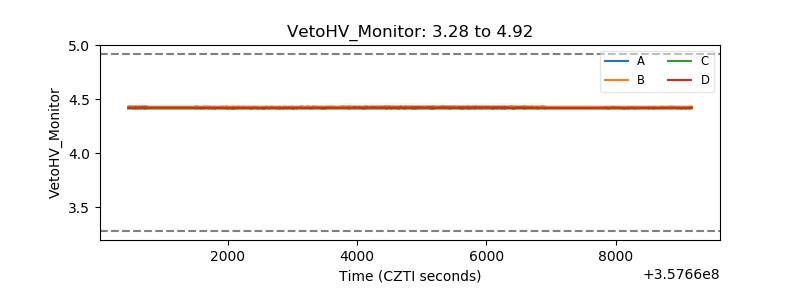

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

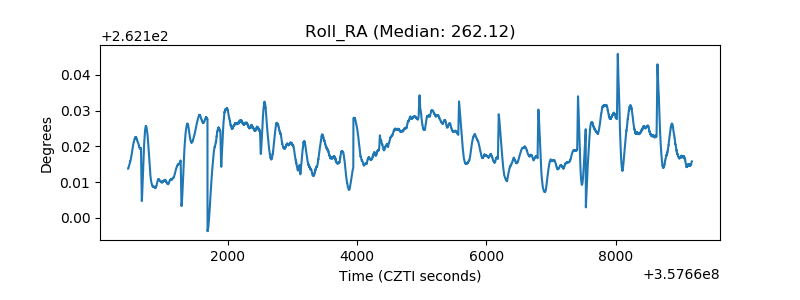

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
