| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30254cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30254cztM0_level2_quad_clean.evt |
| Size (bytes) | 585,403,200 | 104,961,600 |
| Size | 558.3 MB | 100.1 MB |
| Events in quadrant A | 3,452,539 | 683,407 |
| Events in quadrant B | 6,075,663 | 683,603 |
| Events in quadrant C | 3,611,082 | 677,451 |
| Events in quadrant D | 4,134,296 | 665,436 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14154 | 2 |
| B | 0 | 22561 | 2 |
| C | 0 | 14572 | 2 |
| D | 0 | 16410 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6723 | 46 | 0.684218% |
| B | 6723 | 319 | 4.744906% |
| C | 6724 | 144 | 2.141582% |
| D | 6724 | 127 | 1.888757% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

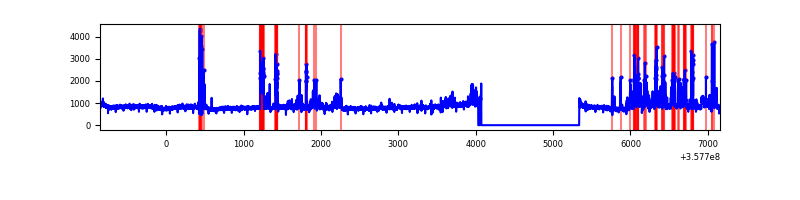

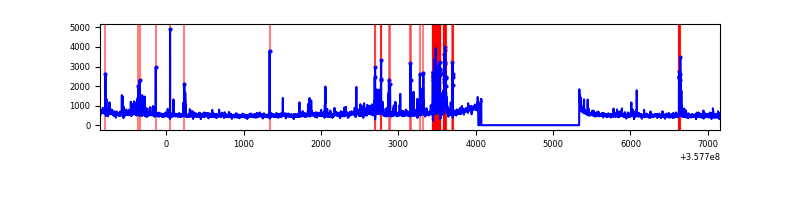

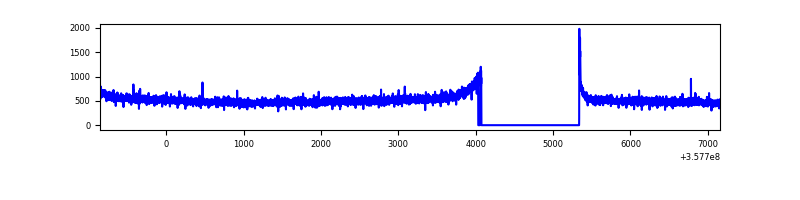

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8013 | 6725 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8013 | 6724 | 130 | 130 | 1.62% | 1.93% |  |
| C | 8014 | 6726 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8014 | 6726 | 90 | 90 | 1.12% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 15920 | 85.72 | 888 | 870 | 175.6 |
| A | 13 | 254 | 12220 | 64.65 | 888 | 870 | 175.6 |
| A | 14 | 239 | 9401 | 48.59 | 888 | 870 | 175.6 |
| B | 6 | 159 | 1838415 | 11109.93 | 872 | 852 | 165.4 |
| B | 6 | 36 | 711685 | 4297.71 | 872 | 852 | 165.4 |
| B | 4 | 80 | 101710 | 609.79 | 872 | 852 | 165.4 |
| C | 14 | 238 | 162770 | 807.89 | 860 | 869 | 200.4 |
| C | 3 | 233 | 42362 | 207.05 | 860 | 869 | 200.4 |
| C | 14 | 254 | 33230 | 161.48 | 860 | 869 | 200.4 |
| D | 1 | 52 | 550637 | 2702.38 | 862 | 843 | 203.4 |
| D | 8 | 195 | 260022 | 1273.93 | 862 | 843 | 203.4 |
| D | 2 | 234 | 23572 | 111.72 | 862 | 843 | 203.4 |

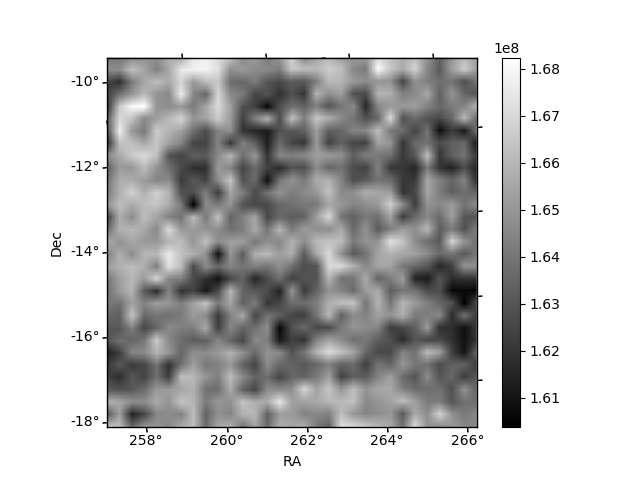

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

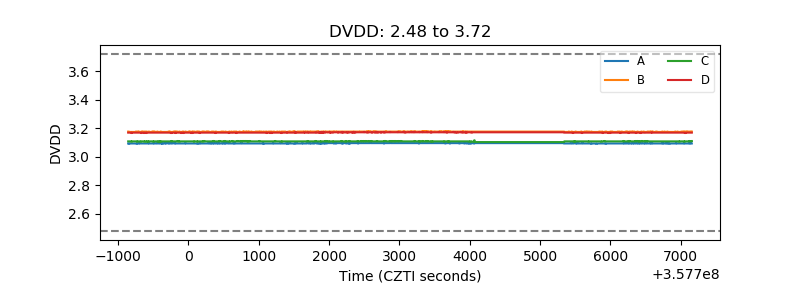

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

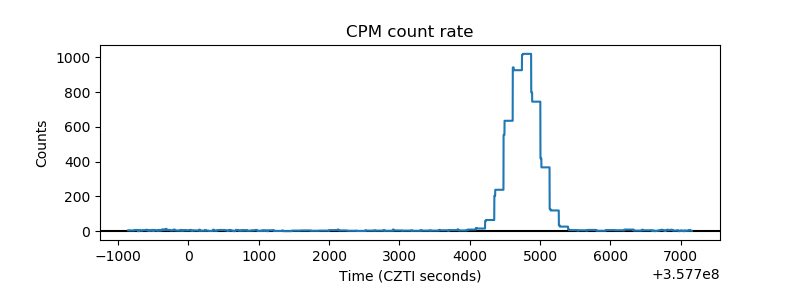

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

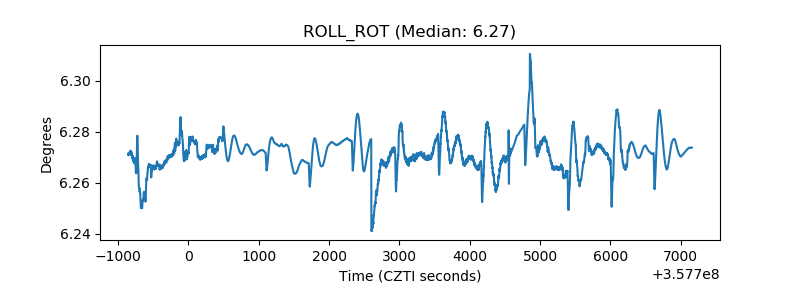

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

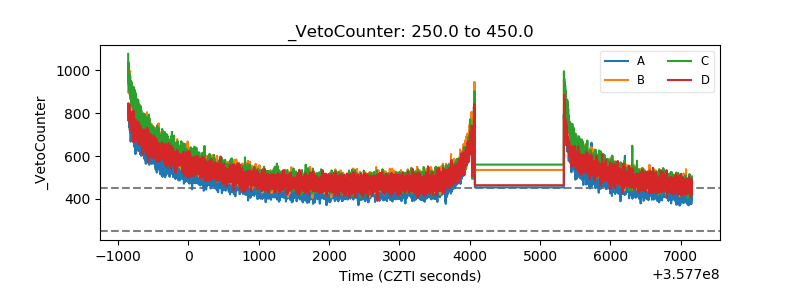

| Veto Counter |  |
