| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30255cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30255cztM0_level2_quad_clean.evt |
| Size (bytes) | 622,725,120 | 102,643,200 |
| Size | 593.9 MB | 97.9 MB |
| Events in quadrant A | 3,615,365 | 661,237 |
| Events in quadrant B | 6,305,873 | 661,657 |
| Events in quadrant C | 3,590,799 | 656,425 |
| Events in quadrant D | 4,878,545 | 646,295 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14939 | 1 |
| B | 0 | 23380 | 1 |
| C | 0 | 14725 | 1 |
| D | 0 | 18962 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6932 | 91 | 1.312752% |
| B | 6933 | 290 | 4.182893% |
| C | 6933 | 178 | 2.567431% |
| D | 6933 | 410 | 5.913746% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7897 | 6932 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7898 | 6934 | 72 | 72 | 0.91% | 1.04% |  |
| C | 7898 | 6934 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7898 | 6934 | 319 | 319 | 4.04% | 4.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 147473 | 822.06 | 887 | 867 | 178.3 |
| A | 0 | 13 | 17003 | 90.48 | 887 | 867 | 178.3 |
| A | 14 | 239 | 14886 | 78.61 | 887 | 867 | 178.3 |
| B | 6 | 159 | 1926243 | 11469.71 | 872 | 851 | 167.9 |
| B | 6 | 36 | 819321 | 4875.69 | 872 | 851 | 167.9 |
| B | 4 | 80 | 136706 | 809.3 | 872 | 851 | 167.9 |
| C | 14 | 238 | 166325 | 818.36 | 859 | 867 | 202.2 |
| C | 14 | 254 | 40445 | 195.75 | 859 | 867 | 202.2 |
| C | 3 | 233 | 20434 | 96.78 | 859 | 867 | 202.2 |
| D | 1 | 52 | 1320447 | 6559.4 | 847 | 829 | 201.2 |
| D | 8 | 195 | 281066 | 1392.97 | 847 | 829 | 201.2 |
| D | 2 | 250 | 32527 | 157.56 | 847 | 829 | 201.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

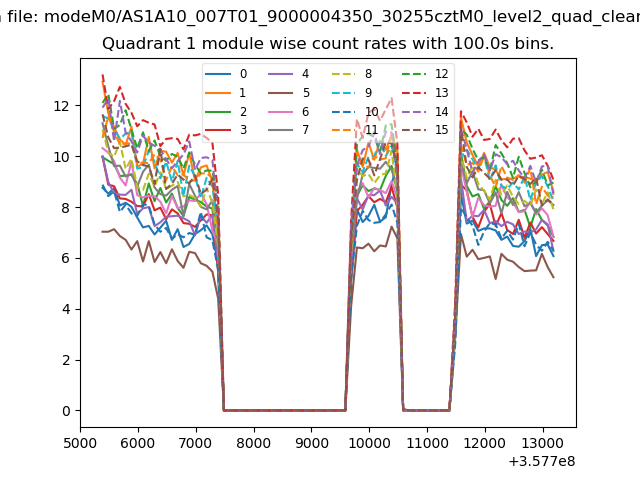

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

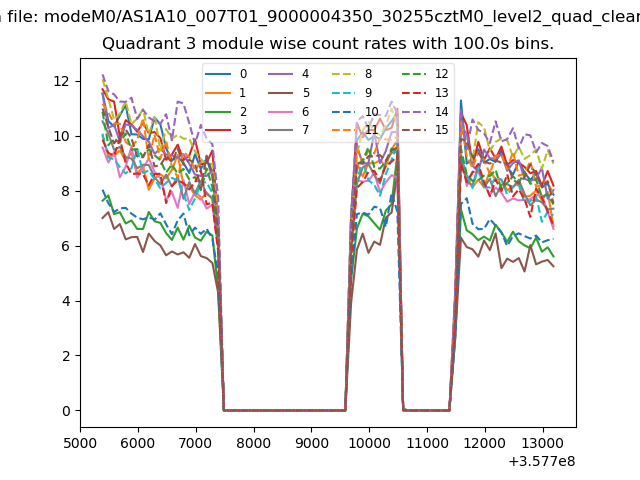

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

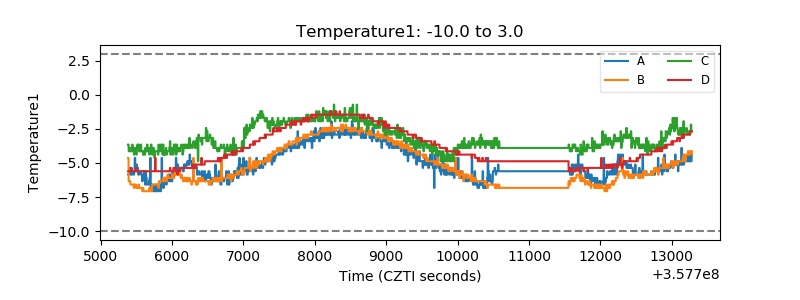

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

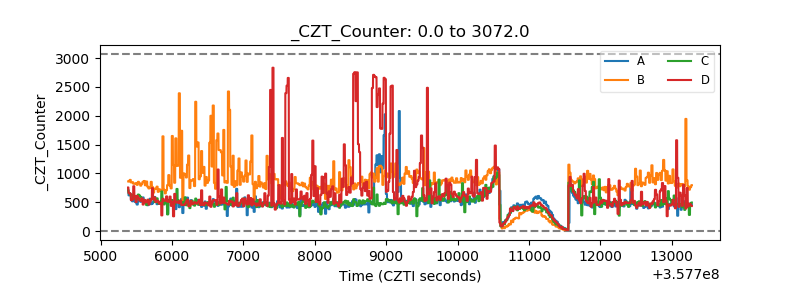

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

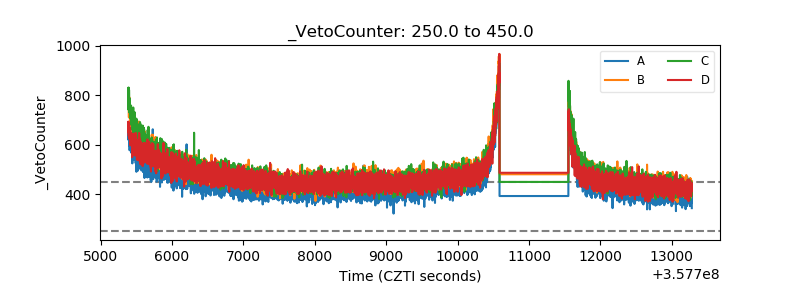

| Veto Counter |  |
