| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30262cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30262cztM0_level2_quad_clean.evt |
| Size (bytes) | 754,485,120 | 75,672,000 |
| Size | 719.5 MB | 72.2 MB |
| Events in quadrant A | 3,562,374 | 513,656 |
| Events in quadrant B | 12,098,408 | 322,823 |
| Events in quadrant C | 3,136,768 | 510,799 |
| Events in quadrant D | 3,626,968 | 504,531 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14676 | 1 |
| B | 0 | 40116 | 1 |
| C | 0 | 13186 | 1 |
| D | 0 | 14946 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6273 | 207 | 3.299857% |
| B | 6273 | 4211 | 67.128965% |
| C | 6273 | 110 | 1.753547% |
| D | 6274 | 147 | 2.343003% |

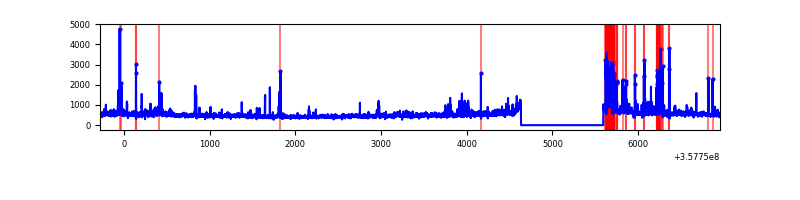

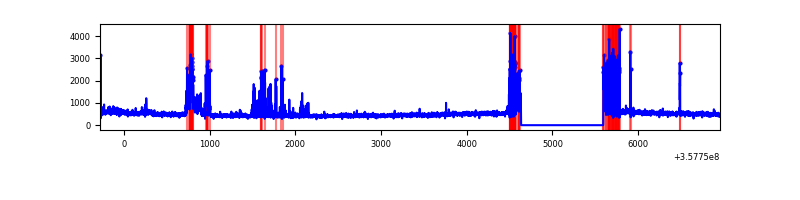

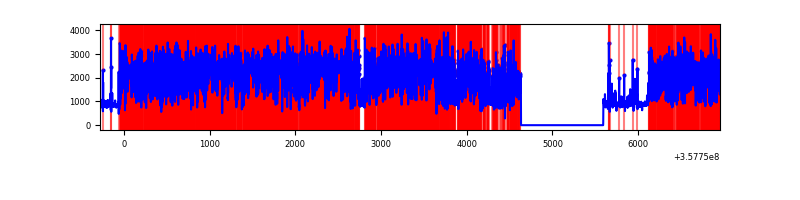

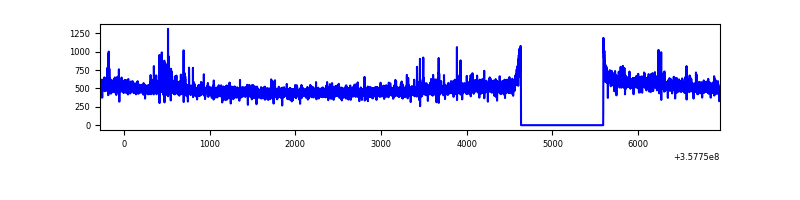

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7233 | 6274 | 122 | 122 | 1.69% | 1.94% |  |
| B | 7233 | 6273 | 3286 | 3286 | 45.43% | 52.38% |  |
| C | 7233 | 6274 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7234 | 6275 | 93 | 93 | 1.29% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 605295 | 3921.79 | 762 | 745 | 154.2 |
| A | 8 | 192 | 12821 | 78.34 | 762 | 745 | 154.2 |
| A | 13 | 254 | 12117 | 73.77 | 762 | 745 | 154.2 |
| B | 6 | 36 | 8198158 | 74012.32 | 568 | 553 | 110.8 |
| B | 6 | 159 | 1364805 | 12317.19 | 568 | 553 | 110.8 |
| B | 4 | 80 | 251106 | 2262.13 | 568 | 553 | 110.8 |
| C | 14 | 238 | 137985 | 778.47 | 749 | 756 | 176.3 |
| C | 3 | 233 | 41926 | 233.55 | 749 | 756 | 176.3 |
| C | 14 | 254 | 27830 | 153.58 | 749 | 756 | 176.3 |
| D | 1 | 52 | 242584 | 1310.57 | 745 | 727 | 184.5 |
| D | 13 | 249 | 209091 | 1129.08 | 745 | 727 | 184.5 |
| D | 13 | 138 | 93700 | 503.8 | 745 | 727 | 184.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

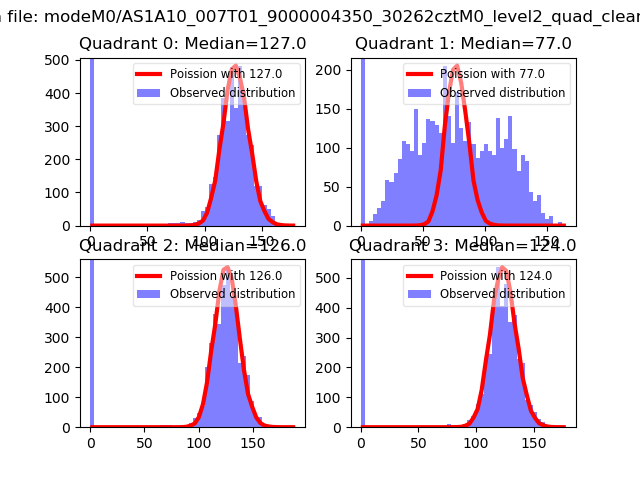

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

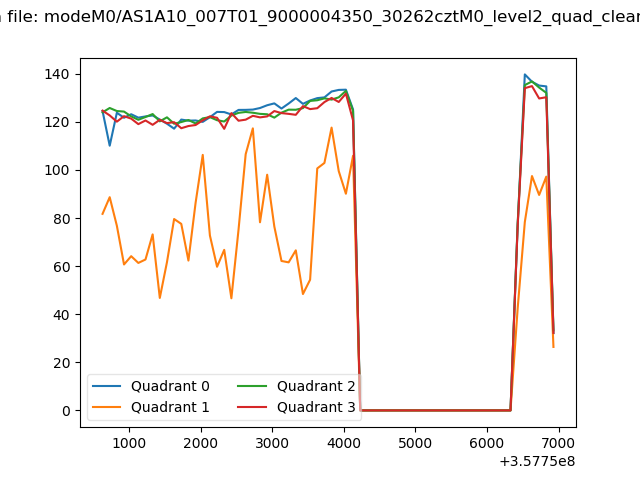

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

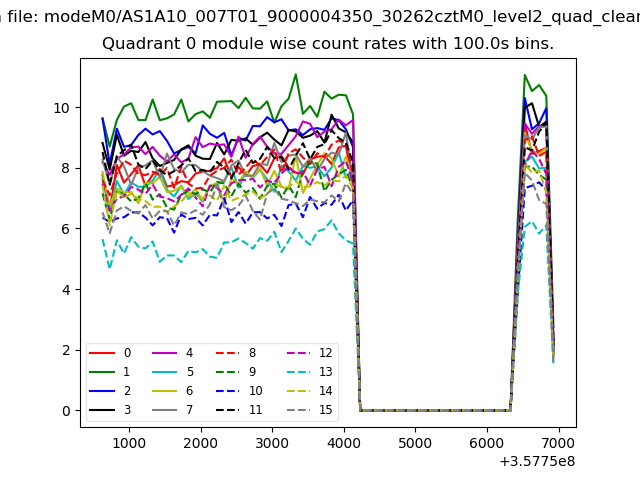

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

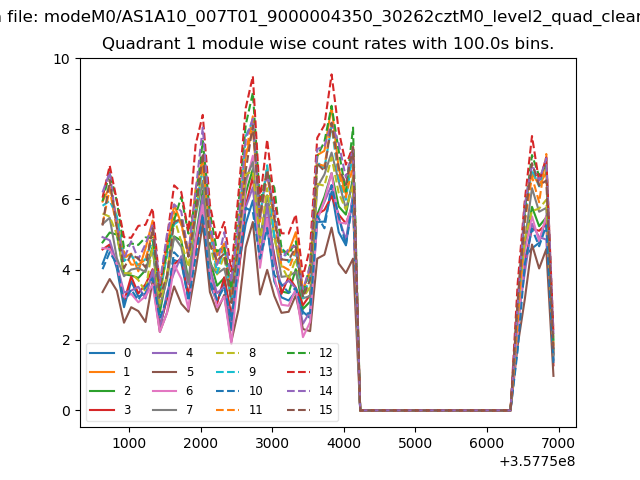

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

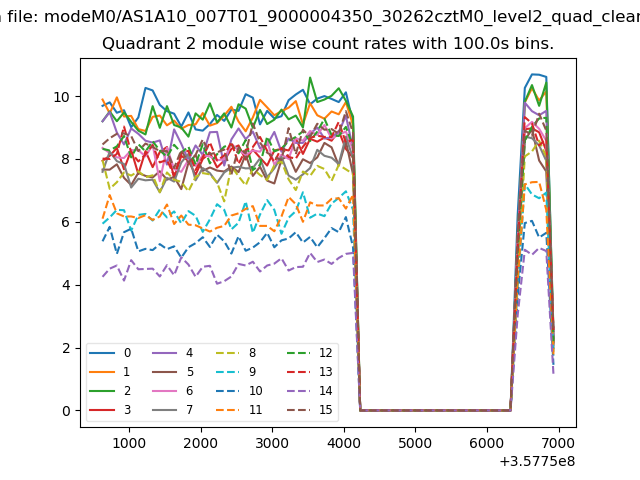

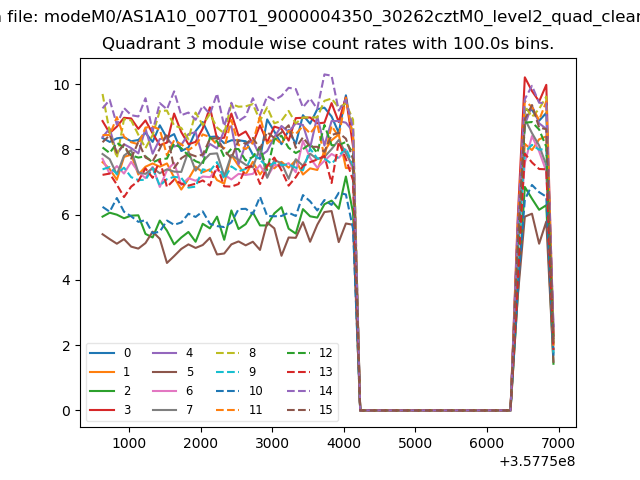

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

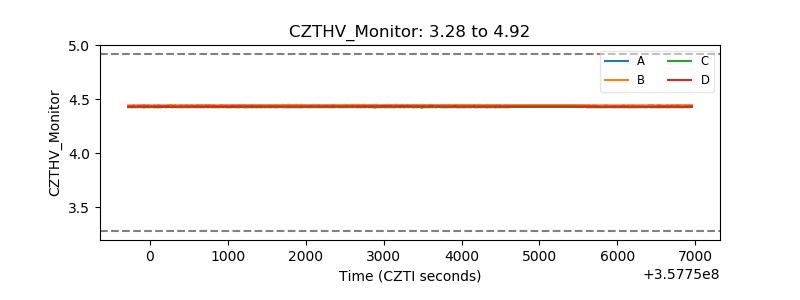

| CZT HV Monitor |  |
| D_VDD |  |

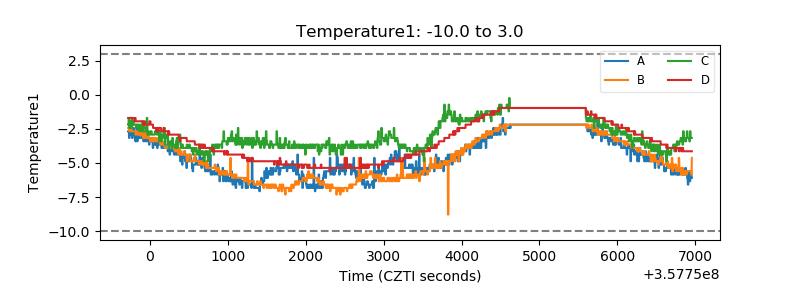

| Temperature 1 |  |

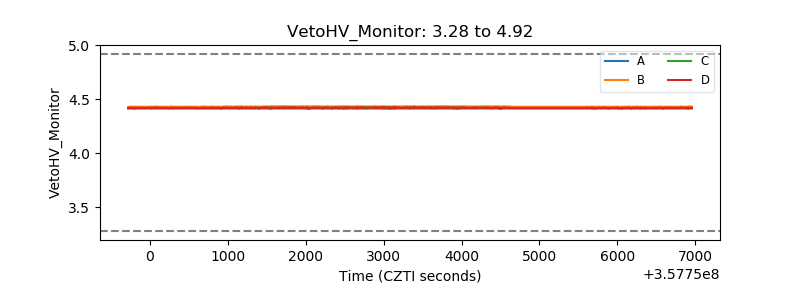

| Veto HV Monitor |  |
| Veto LLD |  |

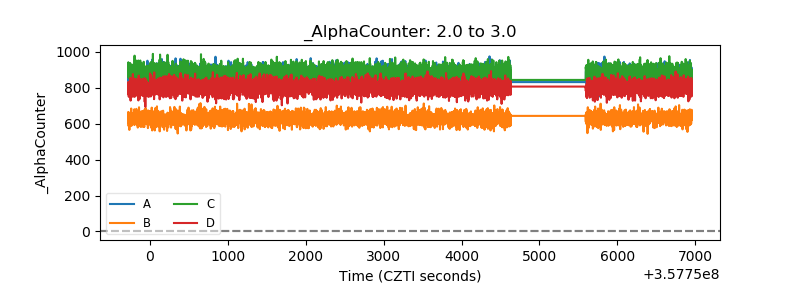

| Alpha Counter |  |
| _CPM_Rate |  |

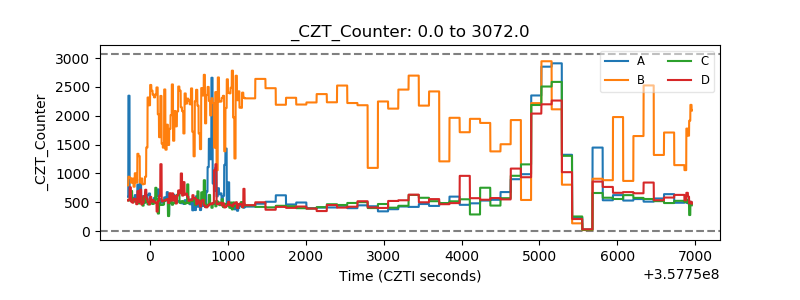

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

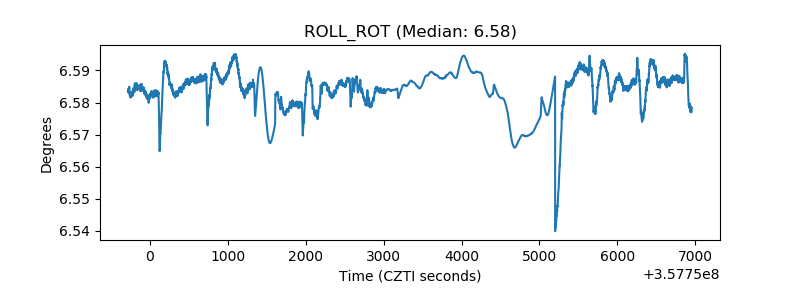

| _ROLL_ROT |  |

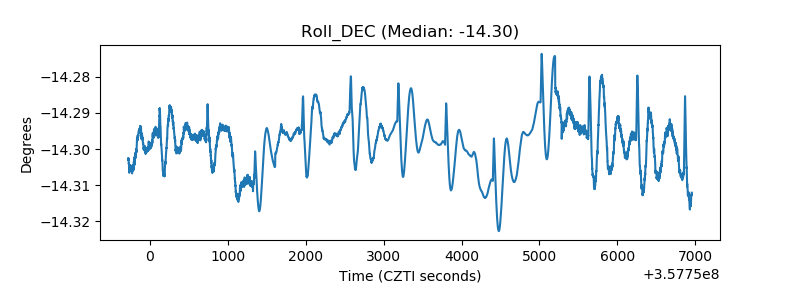

| _Roll_DEC |  |

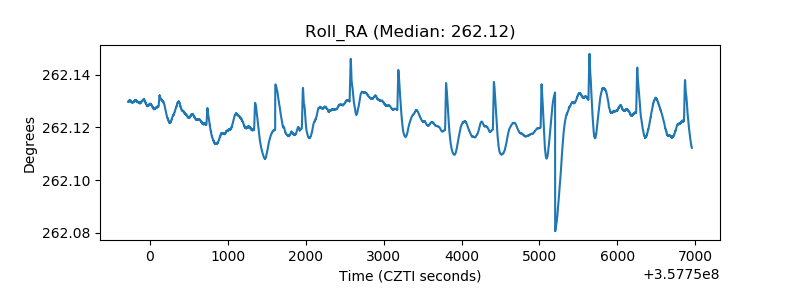

| _Roll_RA |  |

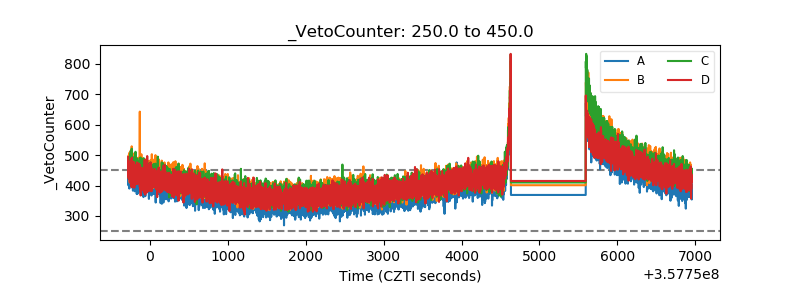

| Veto Counter |  |
