| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30264cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30264cztM0_level2_quad_clean.evt |
| Size (bytes) | 751,037,760 | 87,356,160 |
| Size | 716.2 MB | 83.3 MB |
| Events in quadrant A | 3,712,265 | 590,708 |
| Events in quadrant B | 11,400,588 | 442,499 |
| Events in quadrant C | 3,420,280 | 587,591 |
| Events in quadrant D | 3,776,990 | 574,645 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15269 | 2 |
| B | 0 | 38260 | 2 |
| C | 0 | 14239 | 2 |
| D | 0 | 15473 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6426 | 123 | 1.914099% |
| B | 6427 | 3487 | 54.255485% |
| C | 6427 | 97 | 1.509258% |
| D | 6427 | 154 | 2.396141% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6427 | 69 | 69 | 0.91% | 1.07% |  |
| B | 7541 | 6426 | 2622 | 2622 | 34.77% | 40.80% |  |
| C | 7542 | 6428 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7542 | 6428 | 106 | 106 | 1.41% | 1.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 572046 | 3505.18 | 809 | 792 | 163.0 |
| A | 8 | 192 | 14870 | 86.38 | 809 | 792 | 163.0 |
| A | 13 | 254 | 12068 | 69.19 | 809 | 792 | 163.0 |
| B | 6 | 36 | 6624477 | 51480.56 | 667 | 650 | 128.7 |
| B | 6 | 159 | 1530759 | 11892.05 | 667 | 650 | 128.7 |
| B | 4 | 80 | 525511 | 4079.23 | 667 | 650 | 128.7 |
| C | 3 | 233 | 170914 | 912.14 | 795 | 801 | 186.5 |
| C | 14 | 238 | 133262 | 710.25 | 795 | 801 | 186.5 |
| C | 2 | 114 | 15219 | 77.31 | 795 | 801 | 186.5 |
| D | 13 | 249 | 214364 | 1081.57 | 788 | 772 | 197.5 |
| D | 1 | 52 | 205940 | 1038.92 | 788 | 772 | 197.5 |
| D | 13 | 138 | 98208 | 493.39 | 788 | 772 | 197.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

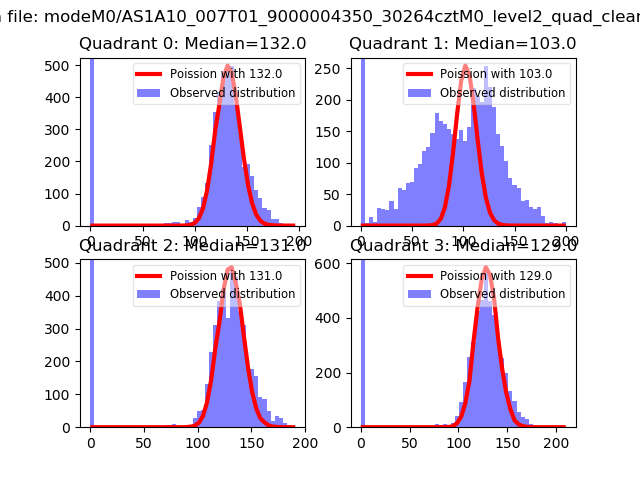

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

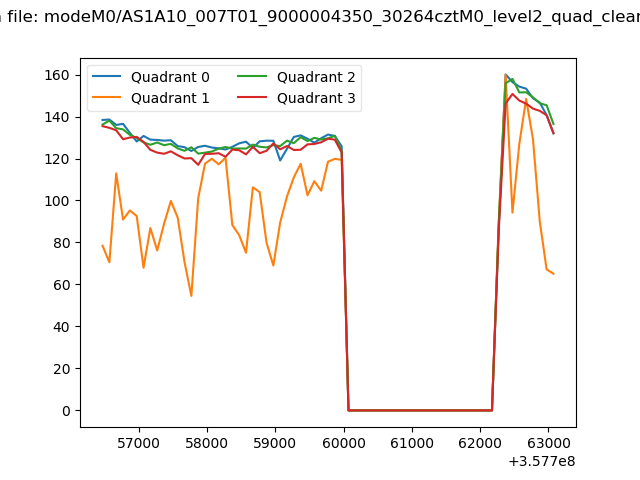

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

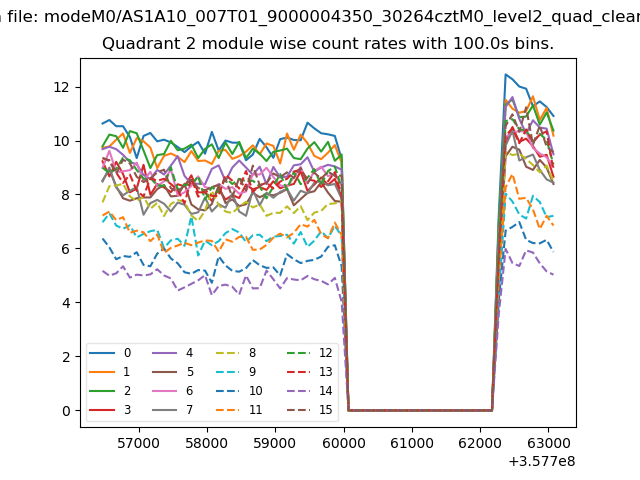

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

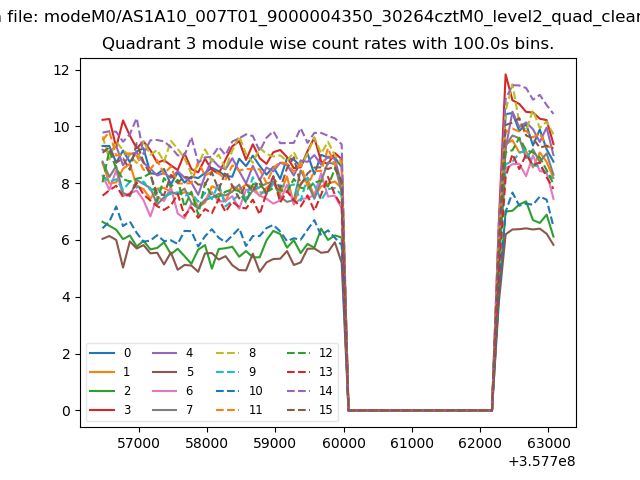

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

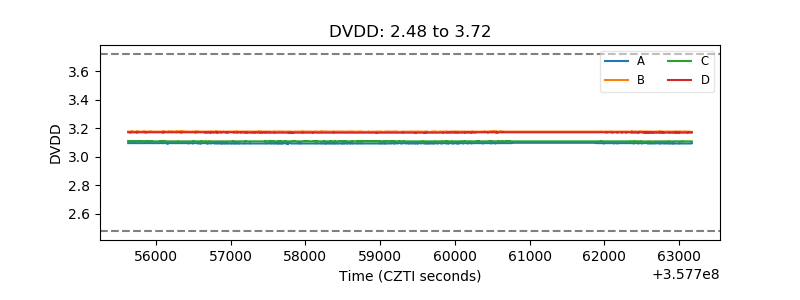

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

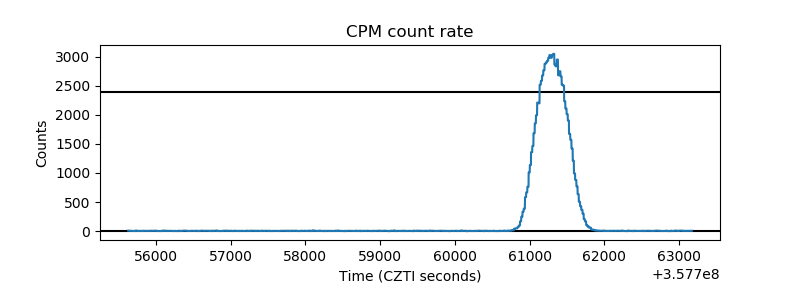

| _CPM_Rate |  |

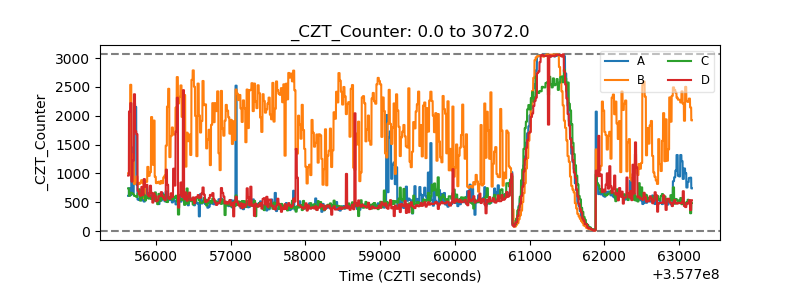

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
