| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30275cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30275cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,022,970,240 | 145,690,560 |
| Size | 975.6 MB | 138.9 MB |
| Events in quadrant A | 6,513,829 | 884,585 |
| Events in quadrant B | 9,876,454 | 887,870 |
| Events in quadrant C | 6,744,243 | 876,632 |
| Events in quadrant D | 6,968,097 | 864,145 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 264 | 0 |
| B | 0 | 264 | 0 |
| C | 0 | 264 | 0 |
| D | 0 | 264 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27680 | 2 |
| B | 0 | 39267 | 2 |
| C | 0 | 27966 | 2 |
| D | 0 | 28929 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13006 | 166 | 1.276334% |
| B | 13007 | 225 | 1.729838% |
| C | 13007 | 230 | 1.768279% |
| D | 13007 | 195 | 1.499193% |

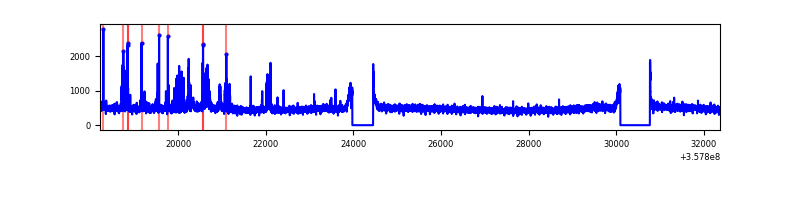

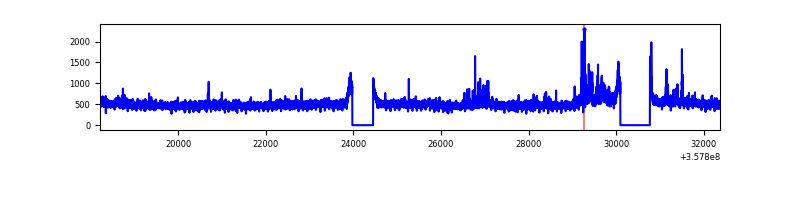

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14156 | 13006 | 10 | 10 | 0.07% | 0.08% |  |
| B | 14157 | 13007 | 2 | 2 | 0.01% | 0.02% |  |
| C | 14157 | 13007 | 1 | 1 | 0.01% | 0.01% |  |
| D | 14157 | 13007 | 58 | 58 | 0.41% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 364538 | 1136.63 | 1585 | 1554 | 319.4 |
| A | 8 | 192 | 25501 | 74.99 | 1585 | 1554 | 319.4 |
| A | 13 | 254 | 25301 | 74.36 | 1585 | 1554 | 319.4 |
| B | 6 | 159 | 3594240 | 11802.47 | 1563 | 1520 | 304.4 |
| B | 6 | 36 | 81371 | 262.32 | 1563 | 1520 | 304.4 |
| B | 12 | 111 | 38469 | 121.38 | 1563 | 1520 | 304.4 |
| C | 3 | 233 | 504161 | 1392.7 | 1530 | 1542 | 360.9 |
| C | 14 | 238 | 246406 | 678.49 | 1530 | 1542 | 360.9 |
| C | 2 | 114 | 30289 | 79.65 | 1530 | 1542 | 360.9 |
| D | 8 | 195 | 328646 | 810.15 | 1535 | 1508 | 403.8 |
| D | 13 | 249 | 259414 | 638.7 | 1535 | 1508 | 403.8 |
| D | 1 | 52 | 163694 | 401.65 | 1535 | 1508 | 403.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

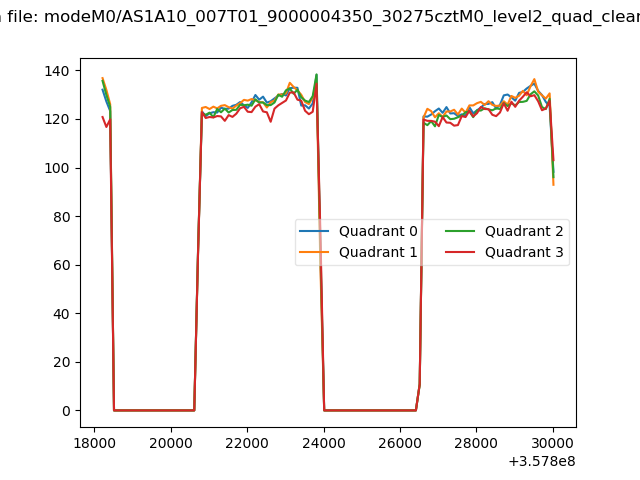

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

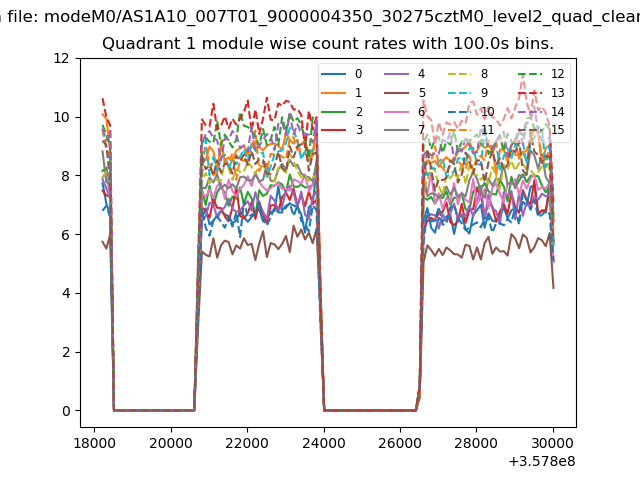

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

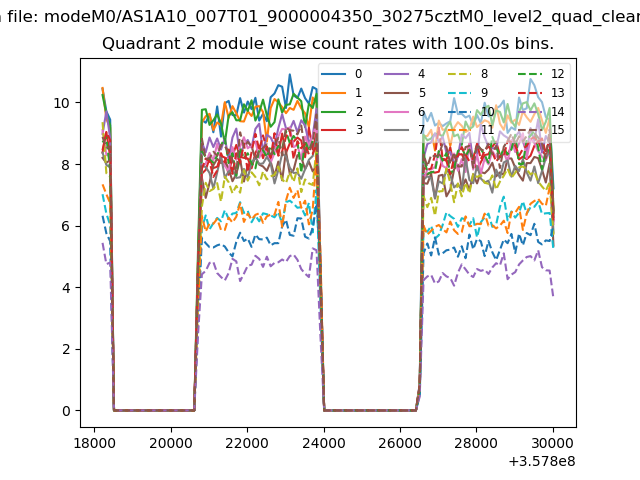

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

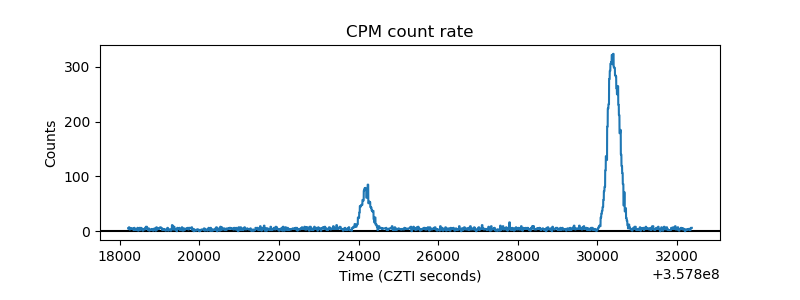

| _CPM_Rate |  |

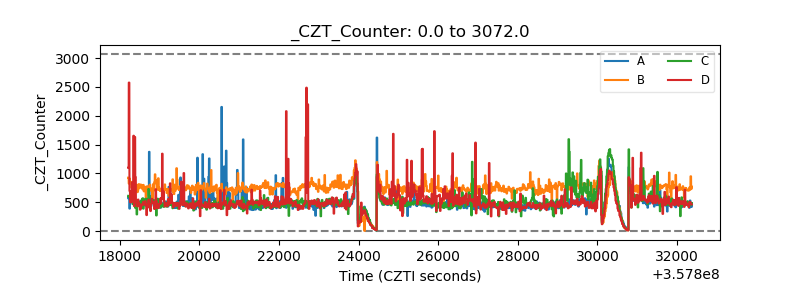

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

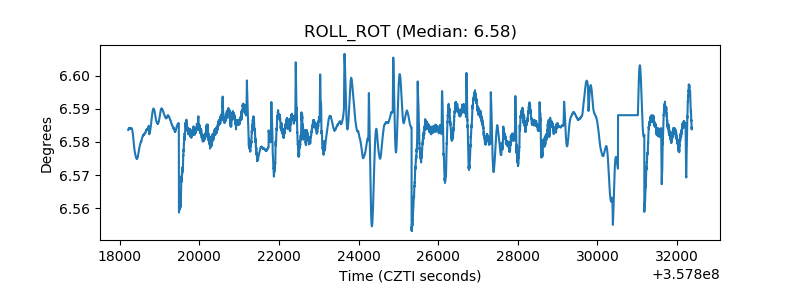

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
