| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30279cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30279cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,375,784,640 | 237,818,880 |
| Size | 1.3 GB | 226.8 MB |
| Events in quadrant A | 8,459,507 | 1,528,133 |
| Events in quadrant B | 13,069,820 | 1,544,906 |
| Events in quadrant C | 9,272,772 | 1,512,911 |
| Events in quadrant D | 9,745,320 | 1,473,455 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 336 | 0 |
| B | 0 | 336 | 0 |
| C | 0 | 336 | 0 |
| D | 0 | 336 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36007 | 3 |
| B | 0 | 50799 | 5 |
| C | 0 | 37954 | 3 |
| D | 0 | 40023 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16593 | 324 | 1.952631% |
| B | 16593 | 281 | 1.693485% |
| C | 16593 | 393 | 2.368469% |
| D | 16593 | 431 | 2.597481% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19658 | 16595 | 162 | 162 | 0.82% | 0.98% |  |
| B | 19658 | 16594 | 27 | 27 | 0.14% | 0.16% |  |
| C | 19658 | 16594 | 10 | 10 | 0.05% | 0.06% |  |
| D | 19658 | 16596 | 327 | 327 | 1.66% | 1.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 520687 | 1269.6 | 2044 | 2002 | 408.5 |
| A | 8 | 192 | 39688 | 92.25 | 2044 | 2002 | 408.5 |
| A | 13 | 254 | 31307 | 71.73 | 2044 | 2002 | 408.5 |
| B | 6 | 159 | 4795349 | 12409.93 | 2042 | 1989 | 386.3 |
| B | 4 | 80 | 78487 | 198.05 | 2042 | 1989 | 386.3 |
| B | 0 | 190 | 64217 | 161.11 | 2042 | 1989 | 386.3 |
| C | 3 | 233 | 1041003 | 2217.46 | 1994 | 2008 | 468.6 |
| C | 14 | 238 | 350964 | 744.75 | 1994 | 2008 | 468.6 |
| C | 14 | 254 | 44521 | 90.73 | 1994 | 2008 | 468.6 |
| D | 12 | 227 | 697716 | 1417.88 | 1988 | 1950 | 490.7 |
| D | 8 | 195 | 517117 | 1049.84 | 1988 | 1950 | 490.7 |
| D | 13 | 249 | 260254 | 526.39 | 1988 | 1950 | 490.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

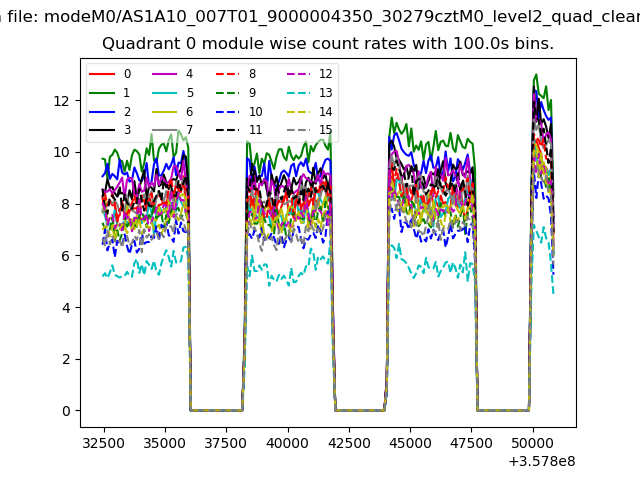

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

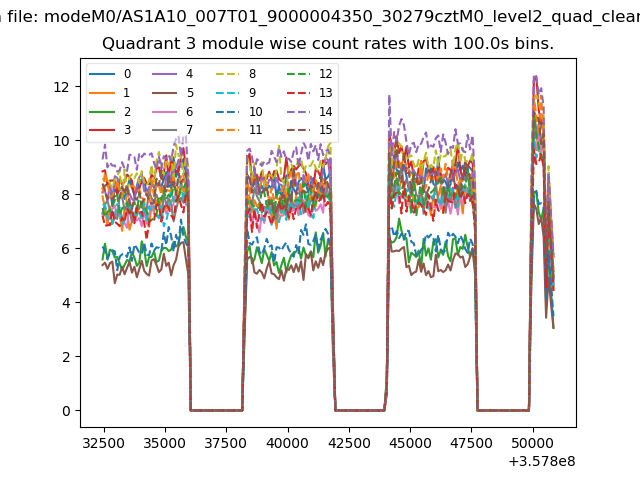

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

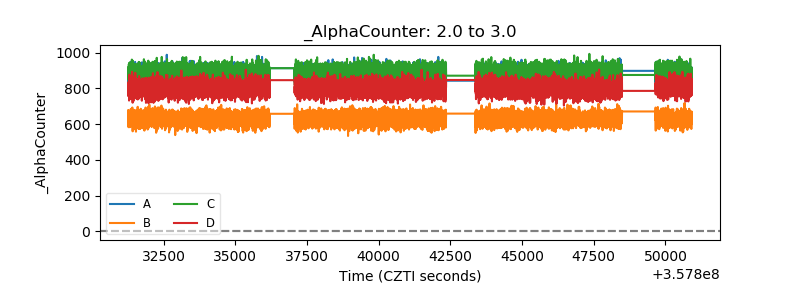

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

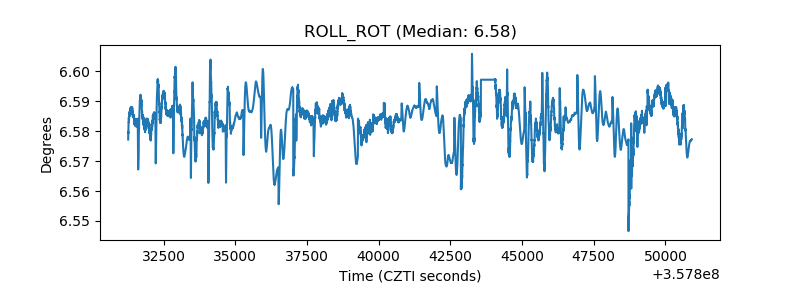

| _ROLL_ROT |  |

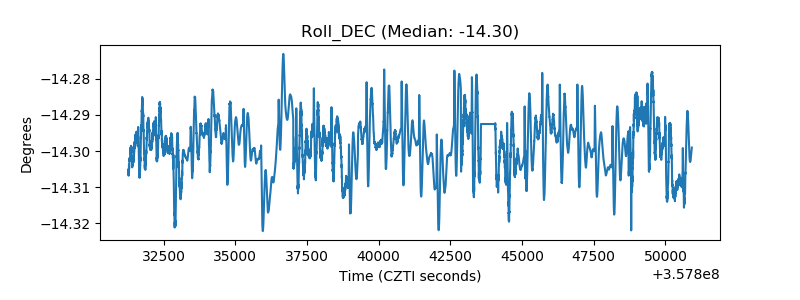

| _Roll_DEC |  |

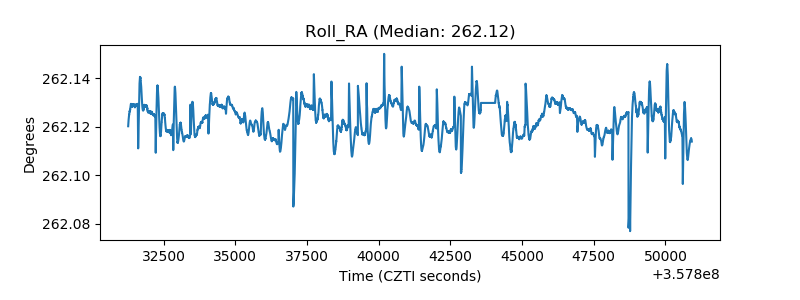

| _Roll_RA |  |
| Veto Counter |  |
