| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30281cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30281cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,536,640 | 115,021,440 |
| Size | 552.7 MB | 109.7 MB |
| Events in quadrant A | 3,512,205 | 757,271 |
| Events in quadrant B | 5,273,458 | 788,911 |
| Events in quadrant C | 3,893,914 | 758,940 |
| Events in quadrant D | 4,443,634 | 736,914 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14381 | 2 |
| B | 0 | 19787 | 2 |
| C | 0 | 15693 | 2 |
| D | 0 | 17395 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6333 | 89 | 1.405337% |
| B | 6333 | 133 | 2.100111% |
| C | 6334 | 213 | 3.362804% |
| D | 6333 | 194 | 3.063319% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8993 | 6335 | 28 | 28 | 0.31% | 0.44% |  |
| B | 8993 | 6335 | 7 | 7 | 0.08% | 0.11% |  |
| C | 8994 | 6336 | 20 | 20 | 0.22% | 0.32% |  |
| D | 8993 | 6334 | 133 | 133 | 1.48% | 2.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 168782 | 996.45 | 859 | 844 | 168.5 |
| A | 8 | 192 | 24934 | 142.94 | 859 | 844 | 168.5 |
| A | 13 | 254 | 12201 | 67.39 | 859 | 844 | 168.5 |
| B | 6 | 159 | 1832253 | 11228.08 | 867 | 847 | 163.1 |
| B | 12 | 111 | 19210 | 112.58 | 867 | 847 | 163.1 |
| B | 11 | 111 | 17496 | 102.07 | 867 | 847 | 163.1 |
| C | 3 | 233 | 296336 | 1508.39 | 844 | 852 | 195.9 |
| C | 14 | 238 | 159441 | 809.57 | 844 | 852 | 195.9 |
| C | 0 | 10 | 105733 | 535.4 | 844 | 852 | 195.9 |
| D | 1 | 52 | 723341 | 3468.37 | 834 | 818 | 208.3 |
| D | 8 | 195 | 318002 | 1522.6 | 834 | 818 | 208.3 |
| D | 13 | 104 | 132569 | 632.45 | 834 | 818 | 208.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

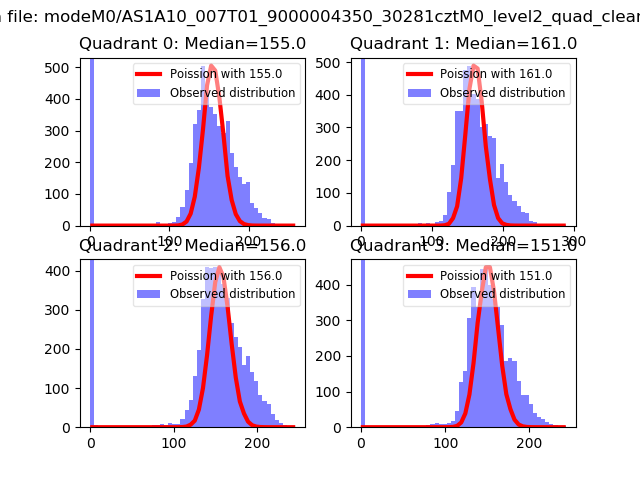

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

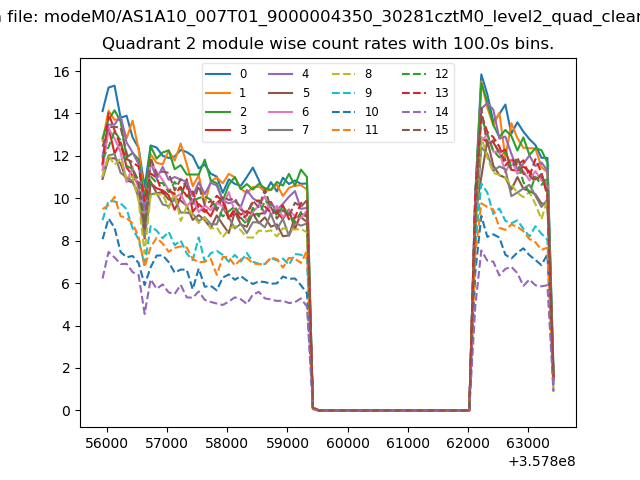

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
