| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_007T01_9000004350_30291cztM0_level2.evt | modeM0/AS1A10_007T01_9000004350_30291cztM0_level2_quad_clean.evt |
| Size (bytes) | 590,883,840 | 83,125,440 |
| Size | 563.5 MB | 79.3 MB |
| Events in quadrant A | 3,398,612 | 516,933 |
| Events in quadrant B | 5,419,232 | 518,898 |
| Events in quadrant C | 4,192,739 | 496,567 |
| Events in quadrant D | 4,416,298 | 502,984 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14477 | 2 |
| B | 0 | 20988 | 2 |
| C | 0 | 16783 | 2 |
| D | 0 | 17645 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6921 | 98 | 1.415980% |
| B | 6922 | 155 | 2.239237% |
| C | 6922 | 454 | 6.558798% |
| D | 6922 | 128 | 1.849177% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8651 | 6921 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8652 | 6922 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8652 | 6922 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8652 | 6923 | 56 | 56 | 0.65% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 22118 | 120.41 | 874 | 857 | 176.6 |
| A | 13 | 254 | 12660 | 66.85 | 874 | 857 | 176.6 |
| A | 3 | 137 | 9033 | 46.31 | 874 | 857 | 176.6 |
| B | 6 | 159 | 1968523 | 11639.66 | 866 | 842 | 169.0 |
| B | 0 | 190 | 23025 | 131.22 | 866 | 842 | 169.0 |
| B | 12 | 111 | 20870 | 118.47 | 866 | 842 | 169.0 |
| C | 3 | 233 | 568454 | 2890.95 | 827 | 830 | 196.3 |
| C | 14 | 238 | 233761 | 1186.34 | 827 | 830 | 196.3 |
| C | 14 | 254 | 141420 | 716.04 | 827 | 830 | 196.3 |
| D | 13 | 104 | 467354 | 2186.08 | 847 | 829 | 213.4 |
| D | 1 | 52 | 359989 | 1682.98 | 847 | 829 | 213.4 |
| D | 8 | 195 | 207303 | 967.51 | 847 | 829 | 213.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

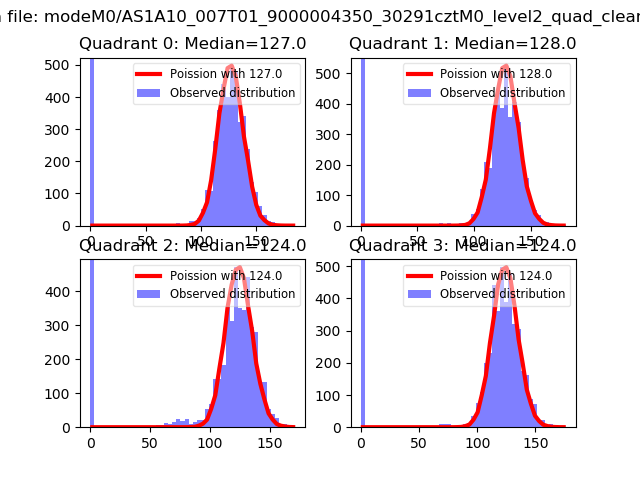

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
