| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T16_9000004348_30221cztM0_level2.evt | modeM0/AS1A10_071T16_9000004348_30221cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,860,800 | 95,385,600 |
| Size | 580.7 MB | 91.0 MB |
| Events in quadrant A | 3,233,683 | 626,809 |
| Events in quadrant B | 5,022,074 | 634,234 |
| Events in quadrant C | 3,288,456 | 608,201 |
| Events in quadrant D | 6,455,811 | 566,070 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13859 | 2 |
| B | 0 | 19695 | 2 |
| C | 0 | 13931 | 2 |
| D | 0 | 23660 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6497 | 72 | 1.108204% |
| B | 6497 | 109 | 1.677697% |
| C | 6497 | 111 | 1.708481% |
| D | 6497 | 745 | 11.466831% |

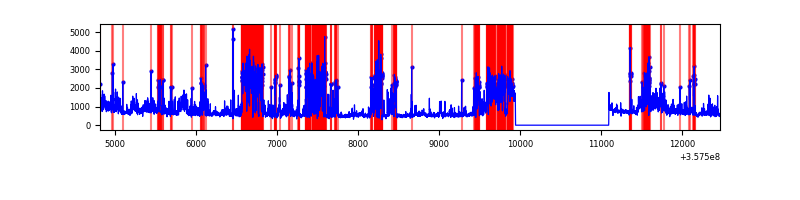

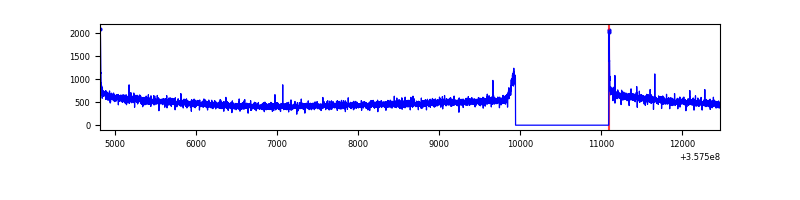

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7647 | 6497 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7647 | 6497 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7647 | 6497 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7647 | 6497 | 696 | 696 | 9.10% | 10.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 25036 | 145.94 | 831 | 816 | 166.0 |
| A | 13 | 254 | 11581 | 64.86 | 831 | 816 | 166.0 |
| A | 3 | 137 | 8442 | 45.95 | 831 | 816 | 166.0 |
| B | 6 | 159 | 1765532 | 11285.37 | 823 | 805 | 156.4 |
| B | 12 | 111 | 19232 | 117.84 | 823 | 805 | 156.4 |
| B | 11 | 111 | 17795 | 108.65 | 823 | 805 | 156.4 |
| C | 14 | 238 | 131292 | 693.52 | 802 | 809 | 188.1 |
| C | 2 | 114 | 15220 | 76.59 | 802 | 809 | 188.1 |
| C | 15 | 208 | 13208 | 65.9 | 802 | 809 | 188.1 |
| D | 1 | 52 | 2378173 | 12606.97 | 773 | 756 | 188.6 |
| D | 12 | 227 | 501119 | 2653.32 | 773 | 756 | 188.6 |
| D | 8 | 195 | 291449 | 1541.49 | 773 | 756 | 188.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

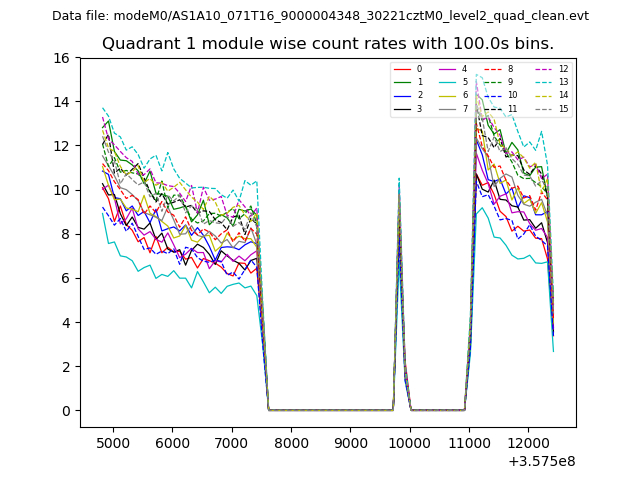

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

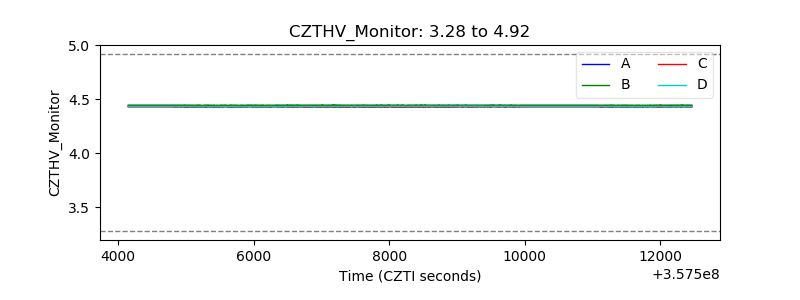

| CZT HV Monitor |  |
| D_VDD |  |

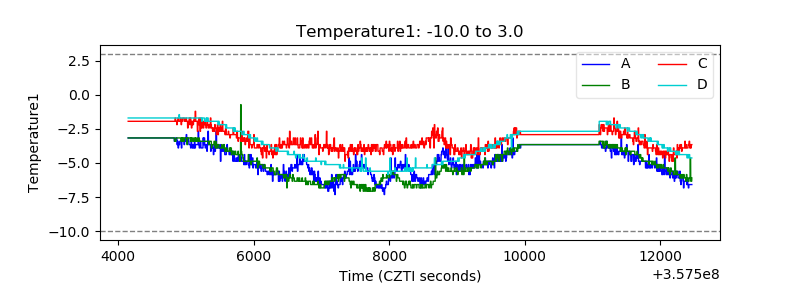

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

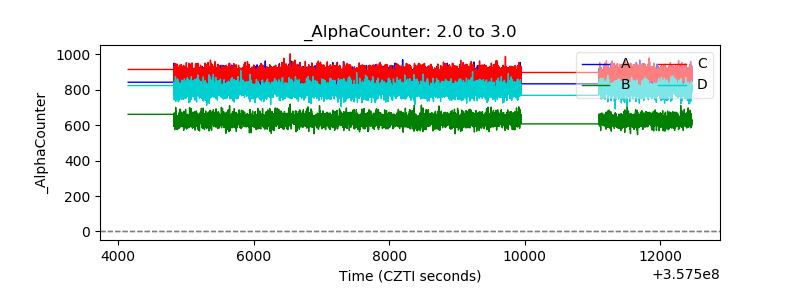

| Alpha Counter |  |
| _CPM_Rate |  |

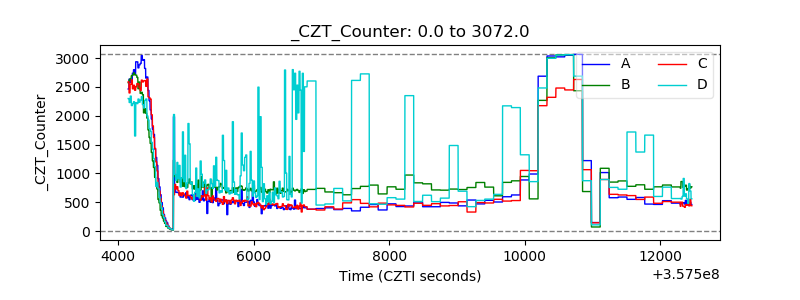

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

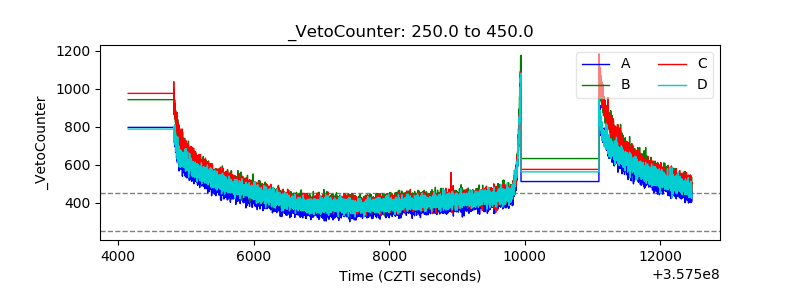

| Veto Counter |  |
