| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T17_9000004352_30302cztM0_level2.evt | modeM0/AS1A10_071T17_9000004352_30302cztM0_level2_quad_clean.evt |
| Size (bytes) | 657,826,560 | 88,050,240 |
| Size | 627.4 MB | 84.0 MB |
| Events in quadrant A | 4,060,296 | 533,172 |
| Events in quadrant B | 6,428,611 | 531,426 |
| Events in quadrant C | 4,204,352 | 514,002 |
| Events in quadrant D | 4,668,803 | 512,644 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17387 | 2 |
| B | 0 | 25463 | 2 |
| C | 0 | 17592 | 2 |
| D | 0 | 19346 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8269 | 297 | 3.591728% |
| B | 8269 | 440 | 5.321079% |
| C | 8269 | 344 | 4.160116% |
| D | 8269 | 214 | 2.587979% |

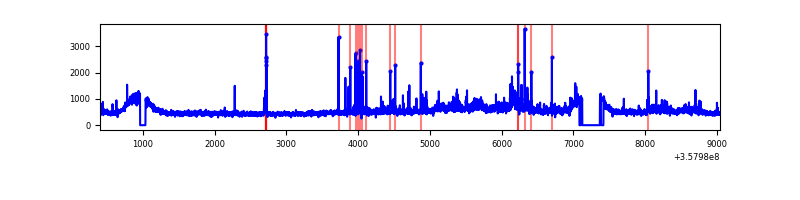

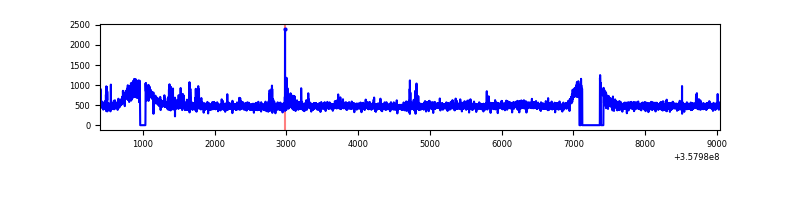

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8644 | 8271 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8644 | 8271 | 2 | 2 | 0.02% | 0.02% |  |
| C | 8644 | 8271 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8644 | 8271 | 21 | 21 | 0.24% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 15600 | 68.32 | 1047 | 1023 | 213.3 |
| A | 13 | 254 | 14798 | 64.56 | 1047 | 1023 | 213.3 |
| A | 3 | 137 | 11472 | 48.97 | 1047 | 1023 | 213.3 |
| B | 6 | 159 | 2278184 | 11201.51 | 1025 | 995 | 203.3 |
| B | 6 | 36 | 87336 | 424.71 | 1025 | 995 | 203.3 |
| B | 12 | 111 | 26309 | 124.52 | 1025 | 995 | 203.3 |
| C | 14 | 238 | 181235 | 756.36 | 998 | 1001 | 238.3 |
| C | 10 | 22 | 46311 | 190.14 | 998 | 1001 | 238.3 |
| C | 14 | 254 | 35247 | 143.71 | 998 | 1001 | 238.3 |
| D | 8 | 195 | 569235 | 2294.42 | 1012 | 987 | 247.7 |
| D | 2 | 250 | 82290 | 328.28 | 1012 | 987 | 247.7 |
| D | 1 | 52 | 80752 | 322.07 | 1012 | 987 | 247.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

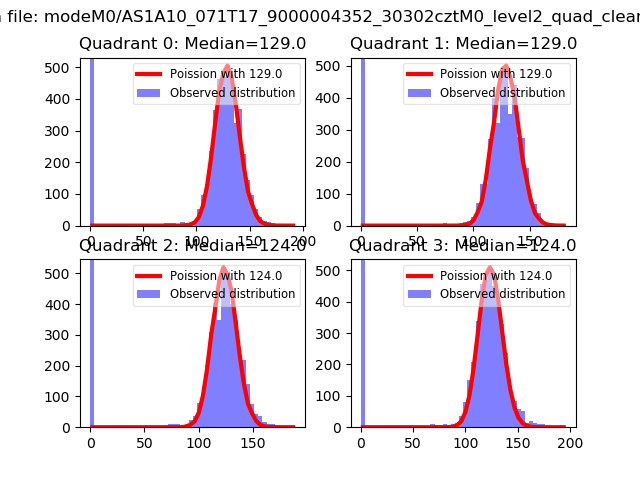

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

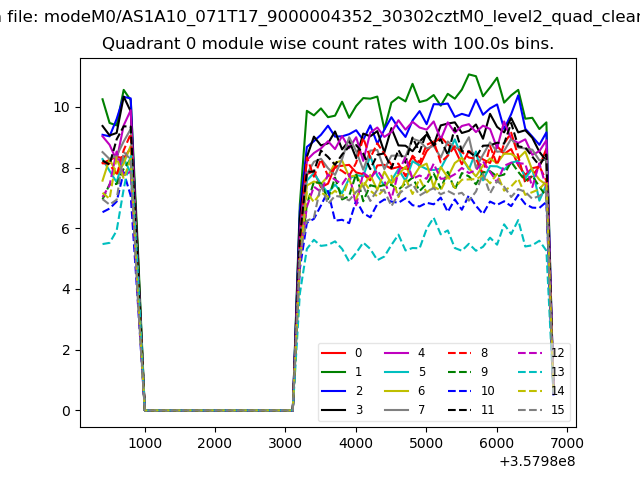

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

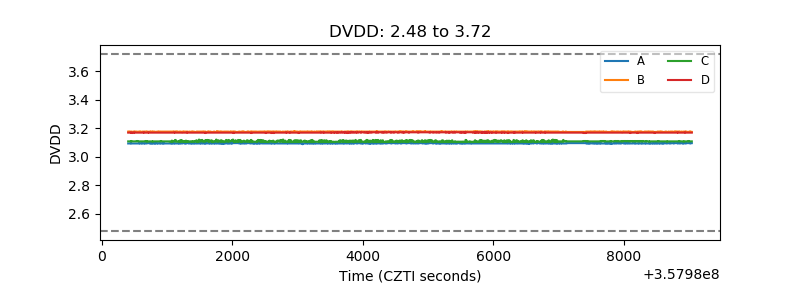

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

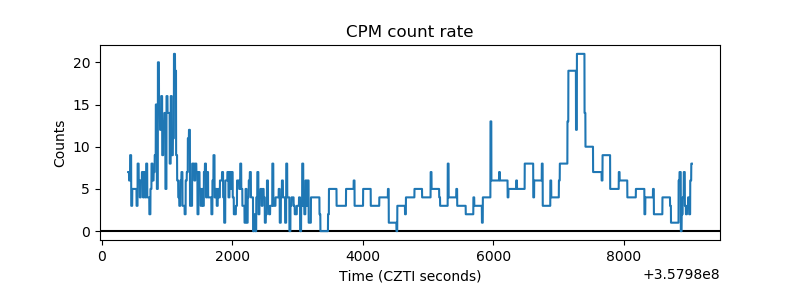

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
