| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T20_9000004354_30305cztM0_level2.evt | modeM0/AS1A10_071T20_9000004354_30305cztM0_level2_quad_clean.evt |
| Size (bytes) | 296,527,680 | 50,425,920 |
| Size | 282.8 MB | 48.1 MB |
| Events in quadrant A | 1,878,813 | 320,465 |
| Events in quadrant B | 2,970,107 | 319,440 |
| Events in quadrant C | 1,943,002 | 309,787 |
| Events in quadrant D | 1,928,007 | 307,343 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8005 | 1 |
| B | 0 | 11595 | 1 |
| C | 0 | 8063 | 1 |
| D | 0 | 8115 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3824 | 73 | 1.908996% |
| B | 3823 | 92 | 2.406487% |
| C | 3823 | 92 | 2.406487% |
| D | 3823 | 59 | 1.543291% |

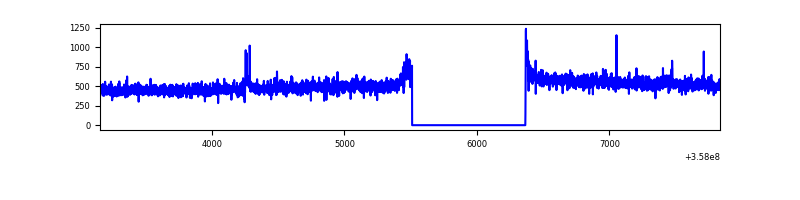

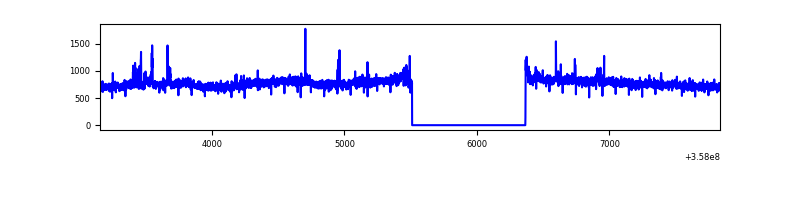

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4679 | 3824 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4678 | 3823 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4678 | 3823 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4678 | 3823 | 9 | 9 | 0.19% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 13272 | 129.4 | 483 | 472 | 98.9 |
| A | 13 | 254 | 6882 | 64.8 | 483 | 472 | 98.9 |
| A | 3 | 137 | 5035 | 46.13 | 483 | 472 | 98.9 |
| B | 6 | 159 | 1053288 | 11187.51 | 476 | 462 | 94.1 |
| B | 6 | 36 | 34591 | 362.66 | 476 | 462 | 94.1 |
| B | 12 | 111 | 11768 | 120.14 | 476 | 462 | 94.1 |
| C | 14 | 238 | 73638 | 660.18 | 463 | 466 | 110.8 |
| C | 3 | 233 | 54217 | 484.96 | 463 | 466 | 110.8 |
| C | 2 | 114 | 9002 | 77.01 | 463 | 466 | 110.8 |
| D | 5 | 222 | 48203 | 396.57 | 464 | 454 | 120.4 |
| D | 2 | 250 | 46151 | 379.53 | 464 | 454 | 120.4 |
| D | 8 | 195 | 24553 | 200.15 | 464 | 454 | 120.4 |

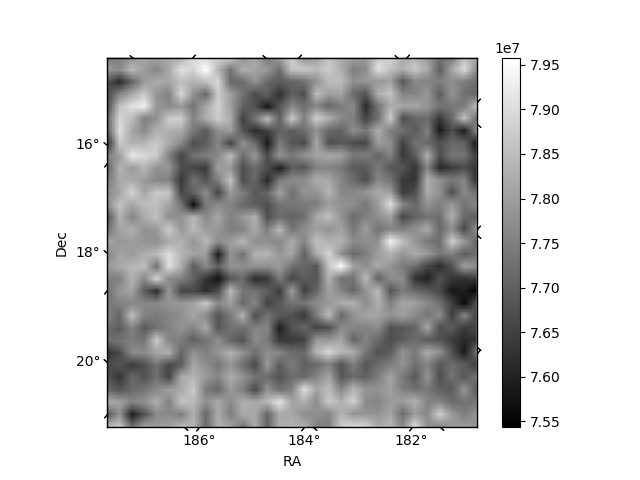

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

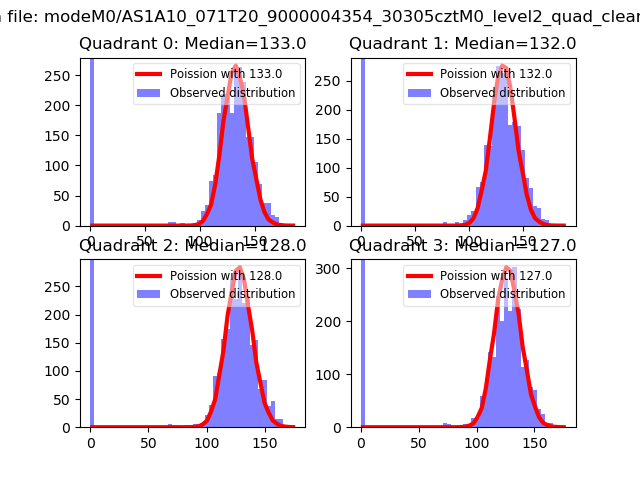

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

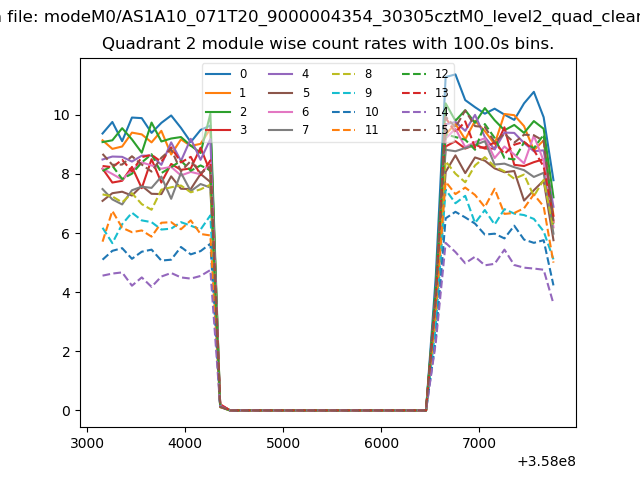

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

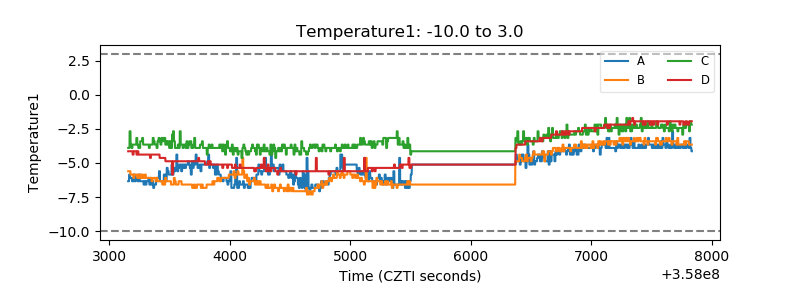

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

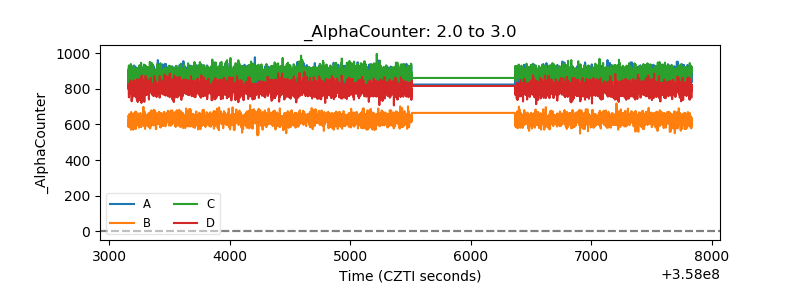

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

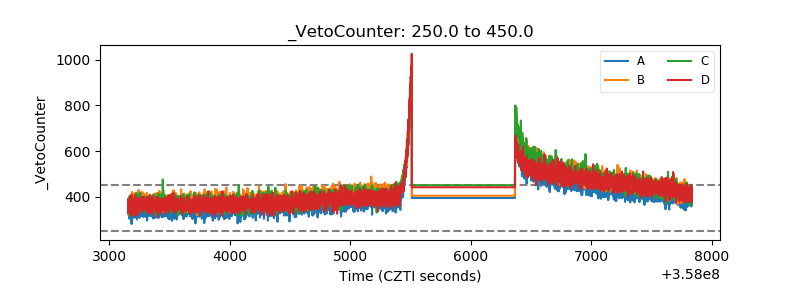

| Veto Counter |  |
