| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T20_9000004354_30310cztM0_level2.evt | modeM0/AS1A10_071T20_9000004354_30310cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,191,680 | 99,017,280 |
| Size | 517.1 MB | 94.4 MB |
| Events in quadrant A | 3,283,931 | 656,042 |
| Events in quadrant B | 5,045,037 | 669,150 |
| Events in quadrant C | 3,795,545 | 634,691 |
| Events in quadrant D | 3,874,899 | 604,757 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13628 | 3 |
| B | 0 | 19040 | 2 |
| C | 0 | 15502 | 2 |
| D | 0 | 15556 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6220 | 50 | 0.803859% |
| B | 6220 | 93 | 1.495177% |
| C | 6220 | 134 | 2.154341% |
| D | 6220 | 156 | 2.508039% |

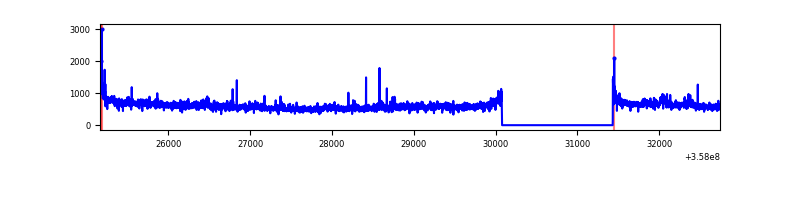

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 6221 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7575 | 6220 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7575 | 6221 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7575 | 6221 | 119 | 119 | 1.57% | 1.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 26963 | 155.85 | 844 | 831 | 167.7 |
| A | 13 | 254 | 10814 | 59.54 | 844 | 831 | 167.7 |
| A | 3 | 137 | 7918 | 42.27 | 844 | 831 | 167.7 |
| B | 6 | 159 | 1733125 | 10985.68 | 840 | 822 | 157.7 |
| B | 12 | 111 | 18886 | 114.56 | 840 | 822 | 157.7 |
| B | 11 | 111 | 17268 | 104.29 | 840 | 822 | 157.7 |
| C | 3 | 233 | 452533 | 2387.24 | 814 | 820 | 189.2 |
| C | 14 | 238 | 134008 | 703.88 | 814 | 820 | 189.2 |
| C | 0 | 10 | 17237 | 86.76 | 814 | 820 | 189.2 |
| D | 13 | 249 | 423305 | 2024.87 | 806 | 792 | 208.7 |
| D | 8 | 195 | 161307 | 769.26 | 806 | 792 | 208.7 |
| D | 5 | 222 | 61181 | 289.41 | 806 | 792 | 208.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

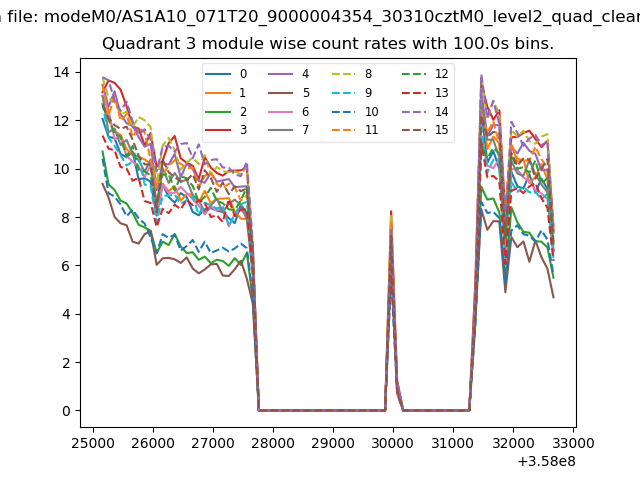

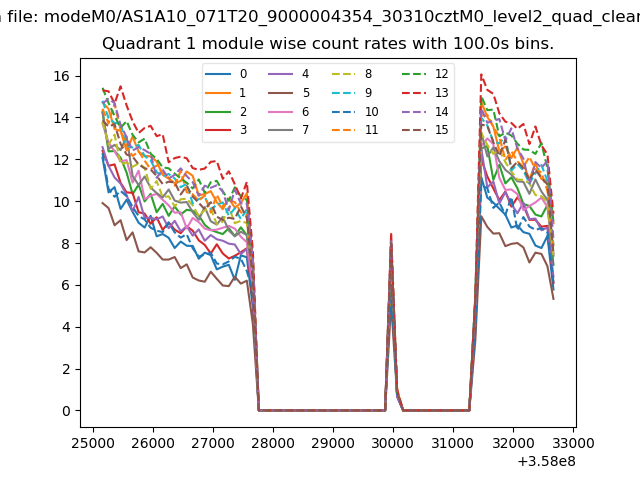

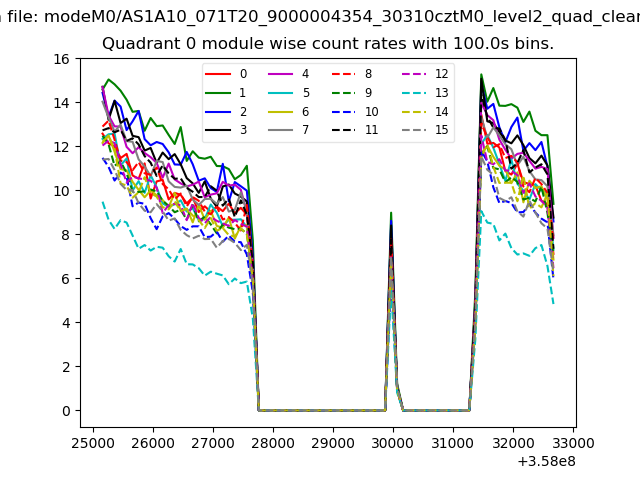

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

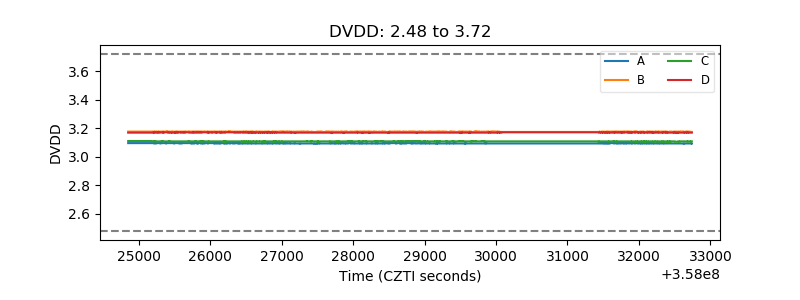

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

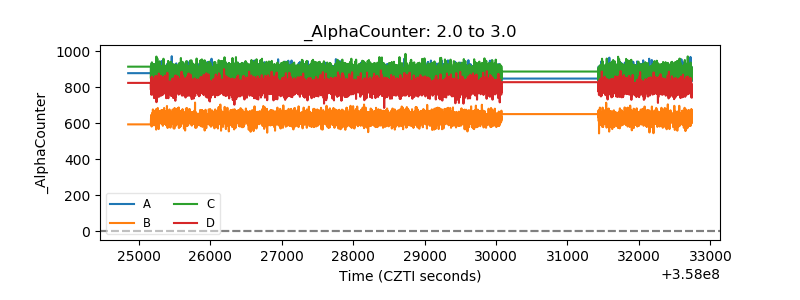

| Alpha Counter |  |

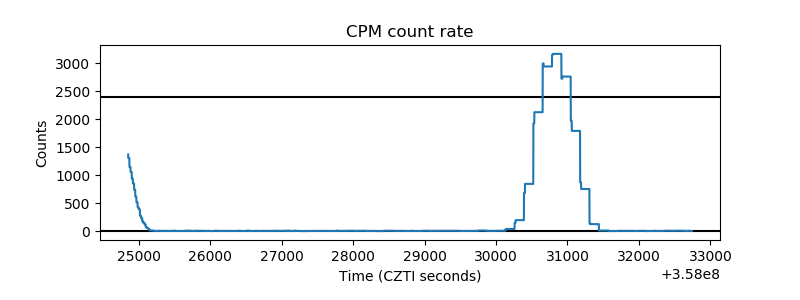

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

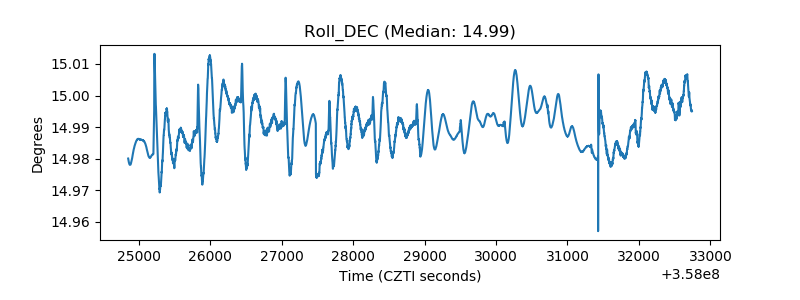

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
