| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T23_9000004356_30316cztM0_level2.evt | modeM0/AS1A10_071T23_9000004356_30316cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,094,720 | 82,920,960 |
| Size | 579.9 MB | 79.1 MB |
| Events in quadrant A | 3,825,111 | 502,540 |
| Events in quadrant B | 5,940,414 | 502,507 |
| Events in quadrant C | 4,070,129 | 486,712 |
| Events in quadrant D | 4,056,665 | 481,300 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16384 | 2 |
| B | 0 | 23573 | 2 |
| C | 0 | 16702 | 2 |
| D | 0 | 17187 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7740 | 197 | 2.545220% |
| B | 7740 | 306 | 3.953488% |
| C | 7740 | 292 | 3.772610% |
| D | 7741 | 125 | 1.614778% |

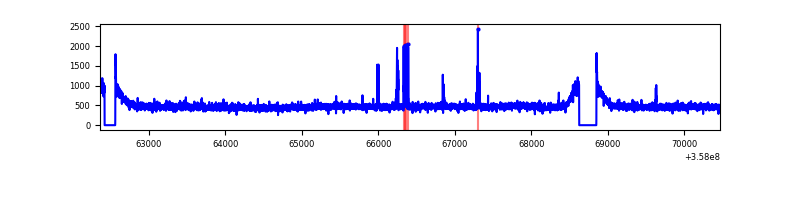

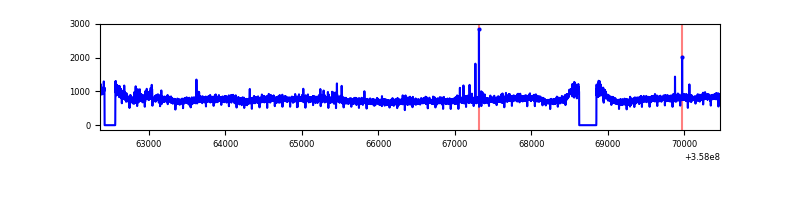

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8105 | 7742 | 5 | 5 | 0.06% | 0.06% |  |
| B | 8105 | 7740 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8105 | 7742 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8106 | 7743 | 5 | 5 | 0.06% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 85538 | 429.67 | 964 | 941 | 196.9 |
| A | 8 | 192 | 17927 | 86.27 | 964 | 941 | 196.9 |
| A | 13 | 254 | 13142 | 61.97 | 964 | 941 | 196.9 |
| B | 6 | 159 | 2117521 | 11251.67 | 950 | 924 | 188.1 |
| B | 6 | 36 | 63218 | 331.15 | 950 | 924 | 188.1 |
| B | 12 | 111 | 24417 | 124.89 | 950 | 924 | 188.1 |
| C | 3 | 233 | 273765 | 1234.77 | 920 | 926 | 221.0 |
| C | 14 | 238 | 166407 | 748.9 | 920 | 926 | 221.0 |
| C | 14 | 254 | 28913 | 126.66 | 920 | 926 | 221.0 |
| D | 13 | 104 | 262860 | 1086.84 | 931 | 910 | 241.0 |
| D | 8 | 195 | 167863 | 692.7 | 931 | 910 | 241.0 |
| D | 2 | 250 | 47192 | 192.03 | 931 | 910 | 241.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

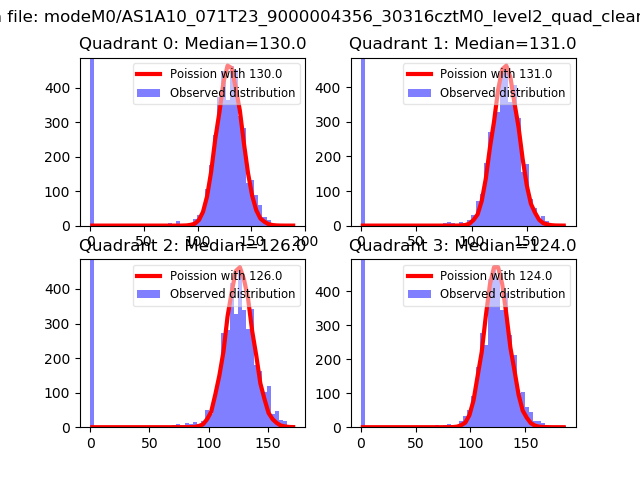

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

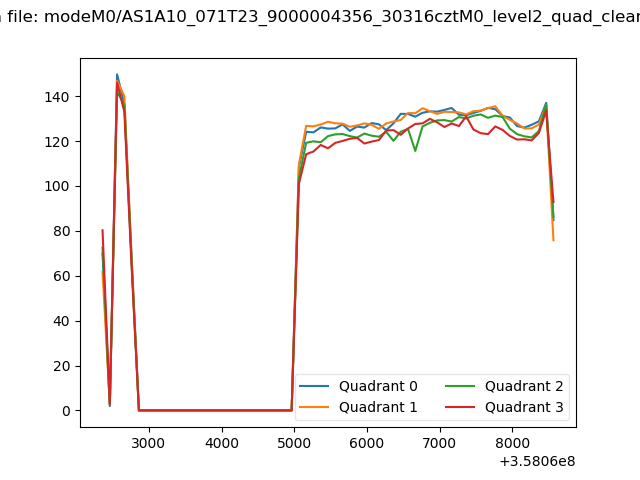

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

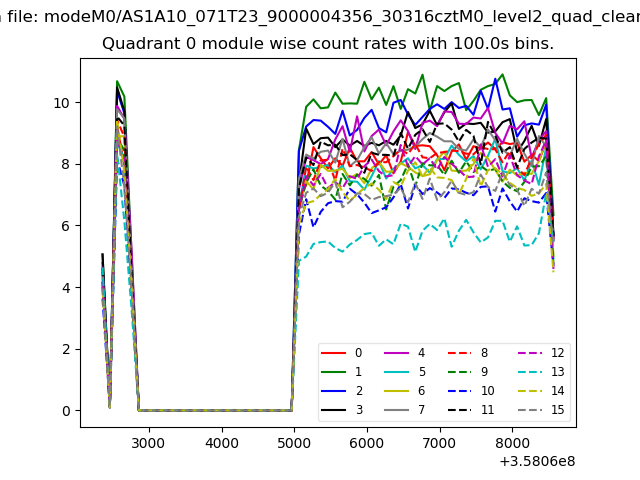

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

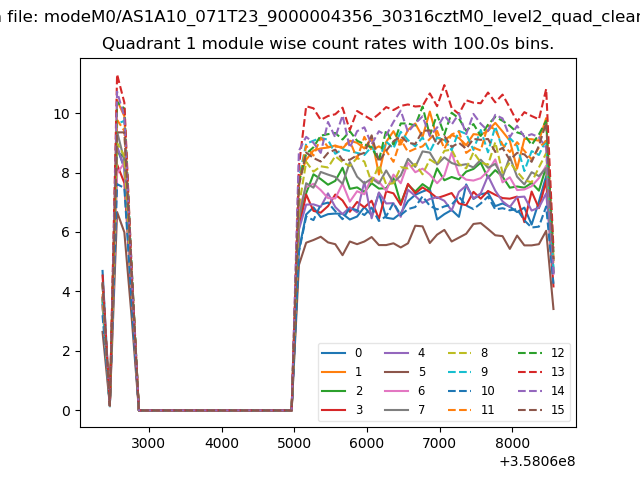

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

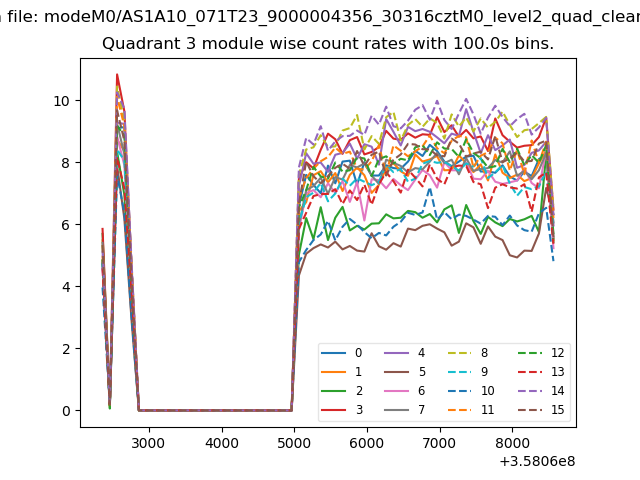

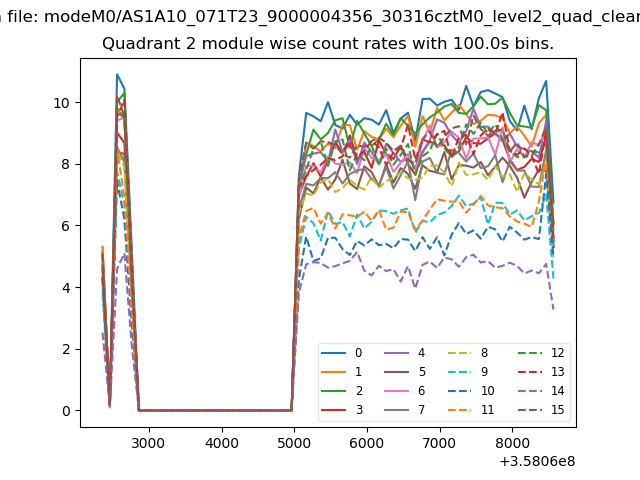

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

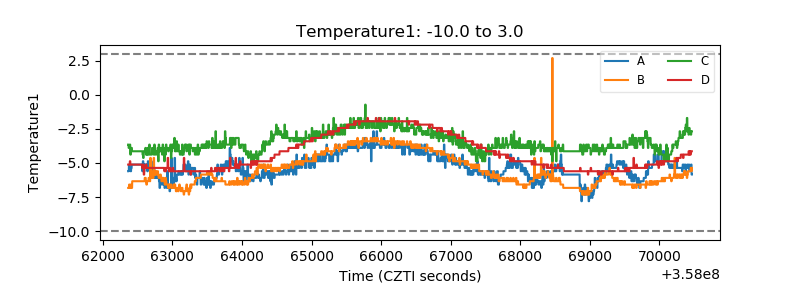

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

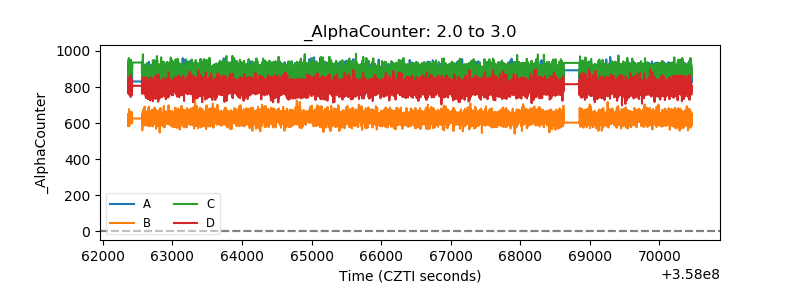

| Alpha Counter |  |

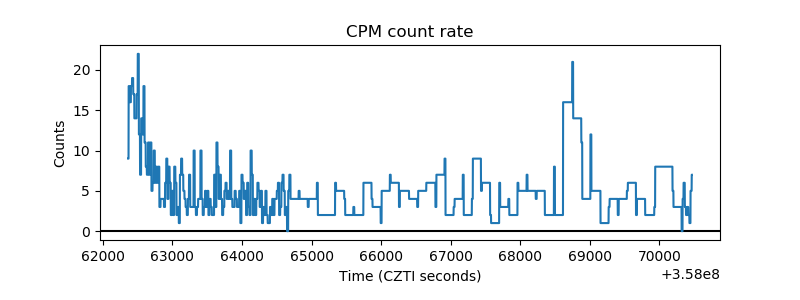

| _CPM_Rate |  |

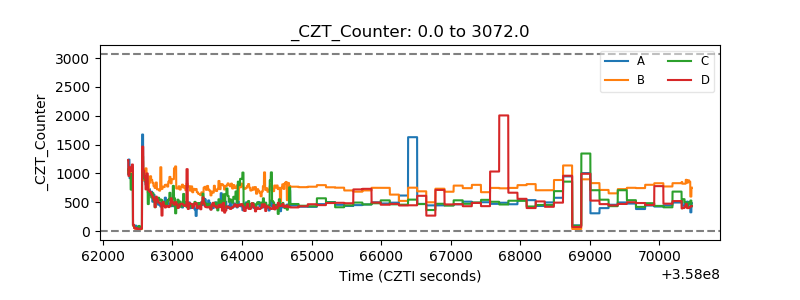

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

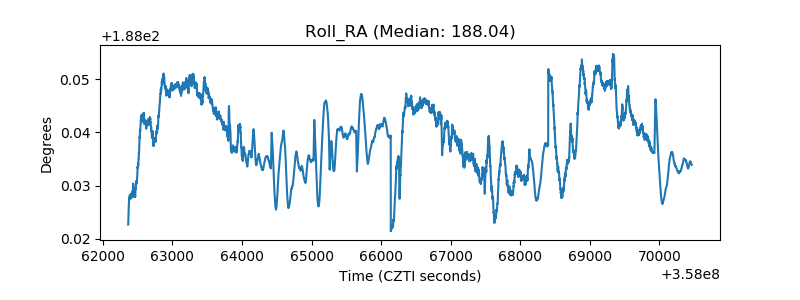

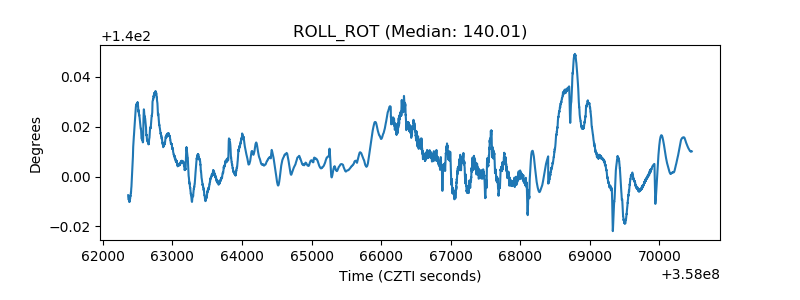

| _ROLL_ROT |  |
| _Roll_DEC |  |

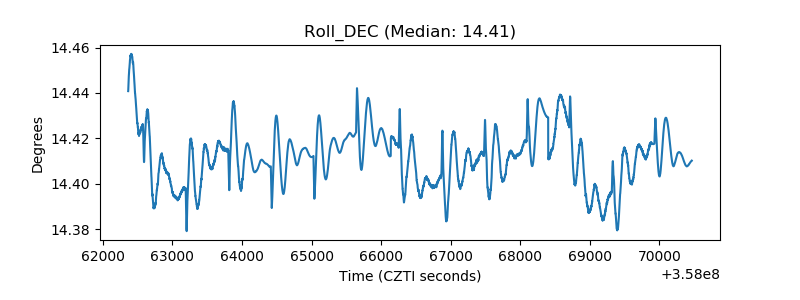

| _Roll_RA |  |

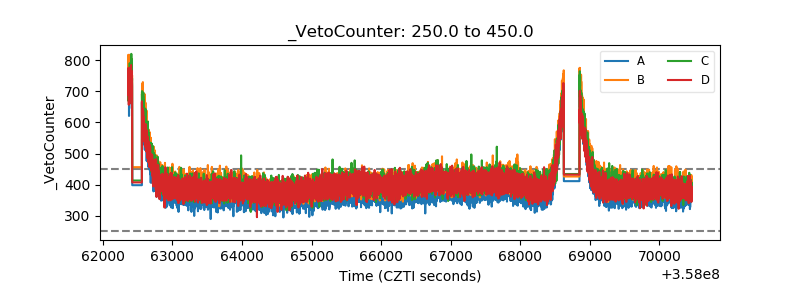

| Veto Counter |  |
