| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T15_9000004364_30355cztM0_level2.evt | modeM0/AS1A10_053T15_9000004364_30355cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,529,280 | 87,672,960 |
| Size | 576.5 MB | 83.6 MB |
| Events in quadrant A | 3,445,910 | 570,647 |
| Events in quadrant B | 5,220,418 | 573,981 |
| Events in quadrant C | 5,441,999 | 534,602 |
| Events in quadrant D | 3,779,954 | 541,795 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13970 | 2 |
| B | 0 | 19053 | 2 |
| C | 0 | 20737 | 2 |
| D | 0 | 15119 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6211 | 69 | 1.110932% |
| B | 6211 | 120 | 1.932056% |
| C | 6211 | 312 | 5.023346% |
| D | 6211 | 81 | 1.304138% |

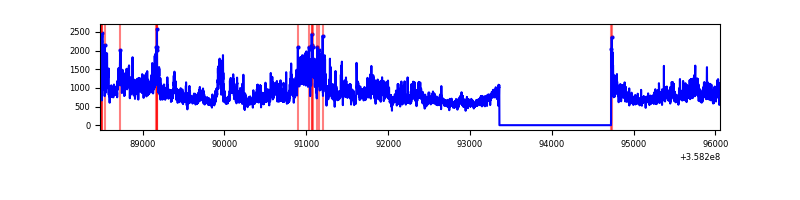

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6211 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7576 | 6211 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7576 | 6212 | 21 | 21 | 0.28% | 0.34% |  |
| D | 7576 | 6211 | 40 | 40 | 0.53% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 67742 | 391.83 | 869 | 854 | 170.7 |
| A | 8 | 192 | 25235 | 142.82 | 869 | 854 | 170.7 |
| A | 13 | 254 | 11734 | 63.74 | 869 | 854 | 170.7 |
| B | 6 | 159 | 1826063 | 11424.17 | 864 | 846 | 159.8 |
| B | 12 | 111 | 18597 | 111.1 | 864 | 846 | 159.8 |
| B | 11 | 111 | 17330 | 103.17 | 864 | 846 | 159.8 |
| C | 3 | 233 | 2006195 | 10599.59 | 824 | 833 | 189.2 |
| C | 14 | 238 | 153713 | 808.07 | 824 | 833 | 189.2 |
| C | 14 | 254 | 26132 | 133.72 | 824 | 833 | 189.2 |
| D | 8 | 195 | 279004 | 1351.66 | 837 | 819 | 205.8 |
| D | 2 | 250 | 224052 | 1084.66 | 837 | 819 | 205.8 |
| D | 12 | 233 | 70995 | 340.97 | 837 | 819 | 205.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

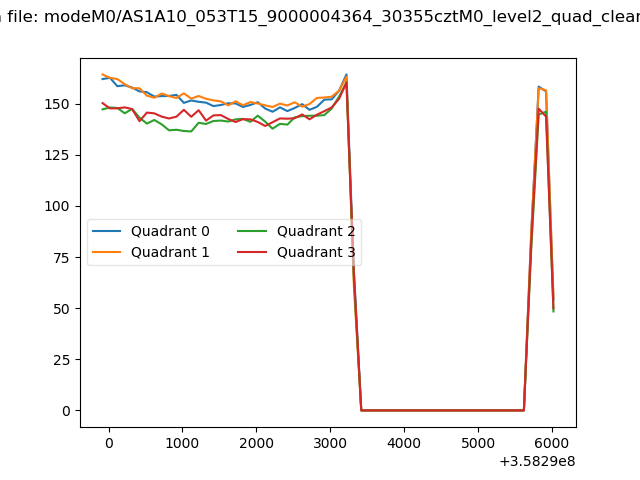

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

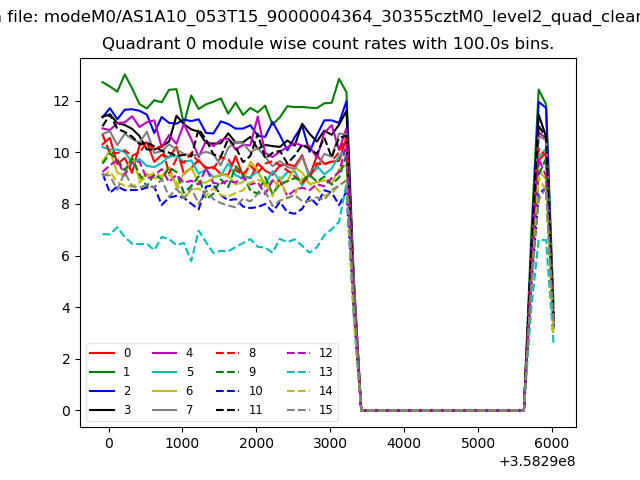

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

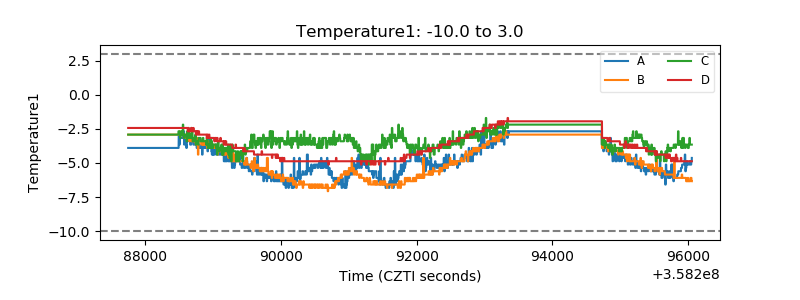

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

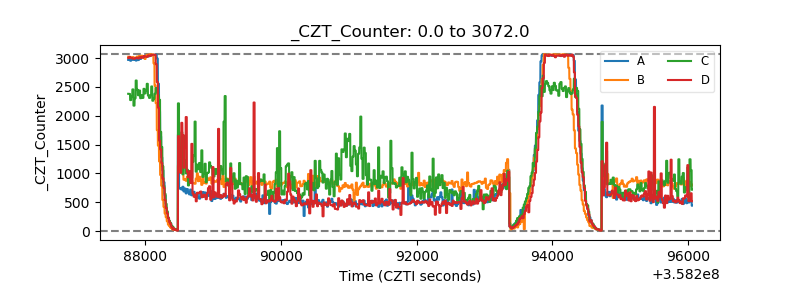

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

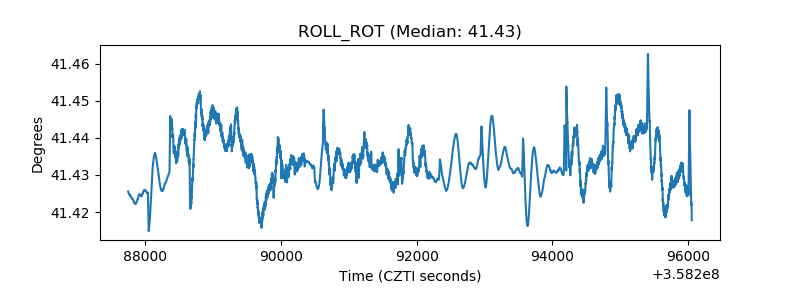

| _ROLL_ROT |  |

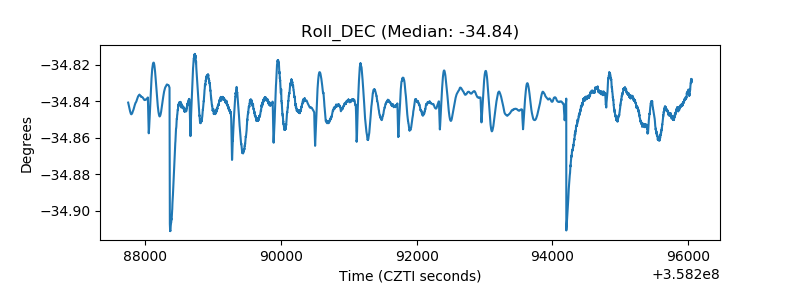

| _Roll_DEC |  |

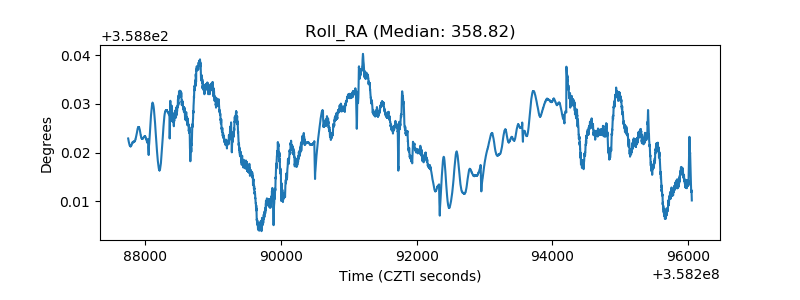

| _Roll_RA |  |
| Veto Counter |  |
