| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T15_9000004364_30357cztM0_level2.evt | modeM0/AS1A10_053T15_9000004364_30357cztM0_level2_quad_clean.evt |
| Size (bytes) | 631,817,280 | 100,929,600 |
| Size | 602.5 MB | 96.3 MB |
| Events in quadrant A | 3,369,077 | 661,137 |
| Events in quadrant B | 5,340,971 | 663,426 |
| Events in quadrant C | 6,475,797 | 617,150 |
| Events in quadrant D | 3,485,202 | 637,207 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14198 | 2 |
| B | 0 | 20669 | 2 |
| C | 0 | 24097 | 2 |
| D | 0 | 14665 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6858 | 65 | 0.947798% |
| B | 6858 | 114 | 1.662292% |
| C | 6858 | 941 | 13.721202% |
| D | 6858 | 31 | 0.452027% |

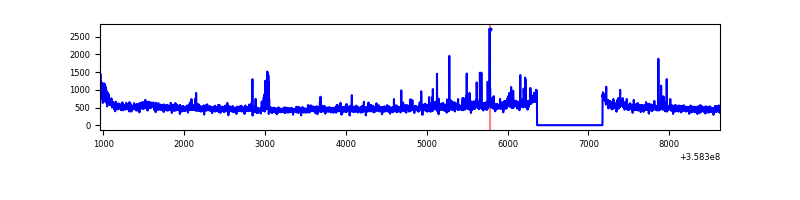

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7668 | 6859 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7668 | 6858 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7668 | 6859 | 351 | 351 | 4.58% | 5.12% |  |
| D | 7668 | 6858 | 1 | 1 | 0.01% | 0.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 26899 | 151.89 | 862 | 846 | 171.5 |
| A | 13 | 254 | 13318 | 72.71 | 862 | 846 | 171.5 |
| A | 3 | 137 | 8743 | 46.04 | 862 | 846 | 171.5 |
| B | 6 | 159 | 1971215 | 12051.26 | 856 | 835 | 163.5 |
| B | 12 | 111 | 20216 | 118.54 | 856 | 835 | 163.5 |
| B | 11 | 111 | 18402 | 107.44 | 856 | 835 | 163.5 |
| C | 3 | 233 | 3178557 | 16930.17 | 806 | 810 | 187.7 |
| C | 14 | 238 | 130528 | 691.1 | 806 | 810 | 187.7 |
| C | 2 | 114 | 15340 | 77.41 | 806 | 810 | 187.7 |
| D | 8 | 195 | 175671 | 867.16 | 842 | 823 | 201.6 |
| D | 2 | 250 | 58449 | 285.8 | 842 | 823 | 201.6 |
| D | 13 | 249 | 32484 | 157.02 | 842 | 823 | 201.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

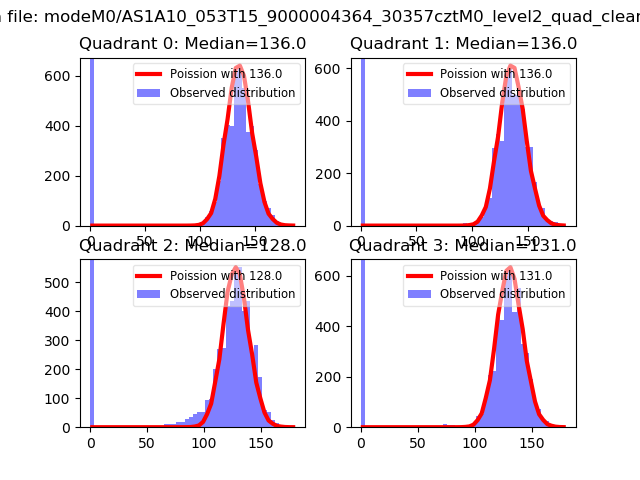

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

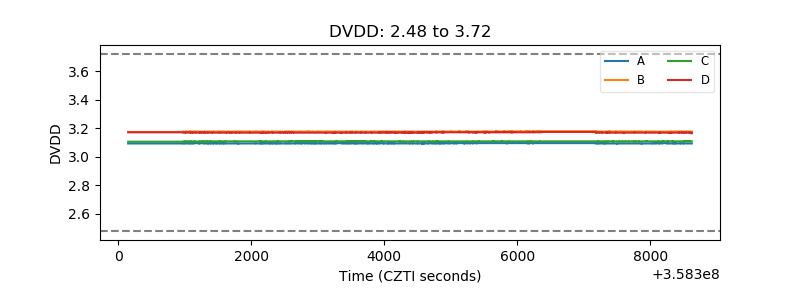

| D_VDD |  |

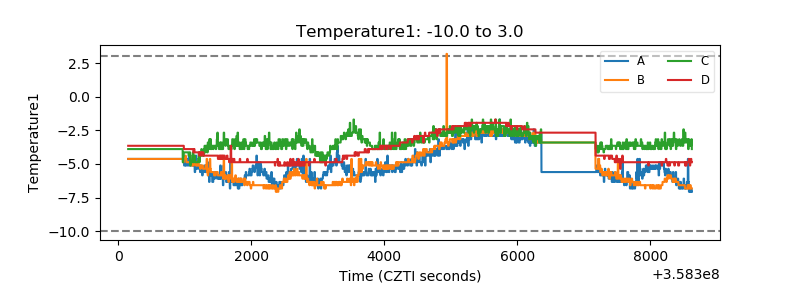

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

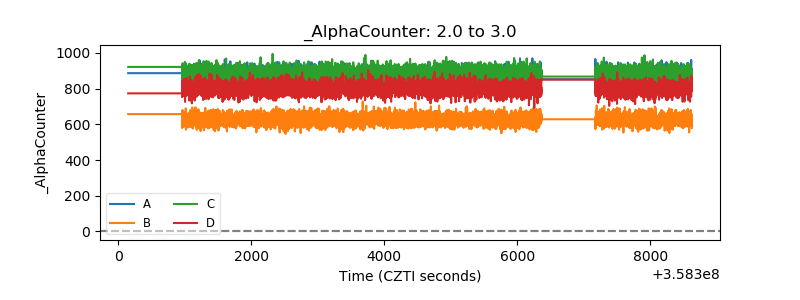

| Alpha Counter |  |

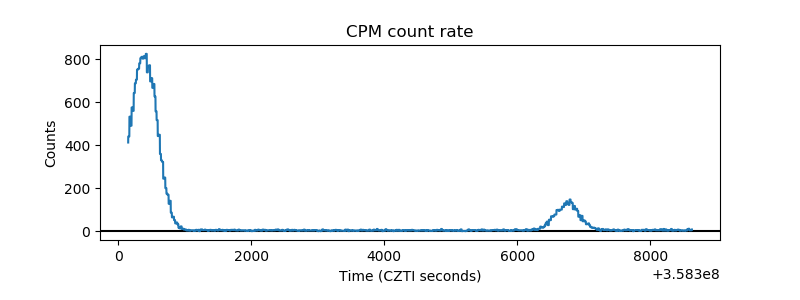

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
