| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T17_9000004366_30363cztM0_level2.evt | modeM0/AS1A10_053T17_9000004366_30363cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,468,800 | 92,436,480 |
| Size | 490.6 MB | 88.2 MB |
| Events in quadrant A | 3,301,513 | 586,714 |
| Events in quadrant B | 5,001,004 | 593,626 |
| Events in quadrant C | 3,321,476 | 577,550 |
| Events in quadrant D | 3,500,114 | 572,135 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14042 | 1 |
| B | 0 | 20151 | 1 |
| C | 0 | 13947 | 1 |
| D | 0 | 14441 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6737 | 89 | 1.321063% |
| B | 6737 | 82 | 1.217159% |
| C | 6737 | 74 | 1.098412% |
| D | 6737 | 85 | 1.261689% |

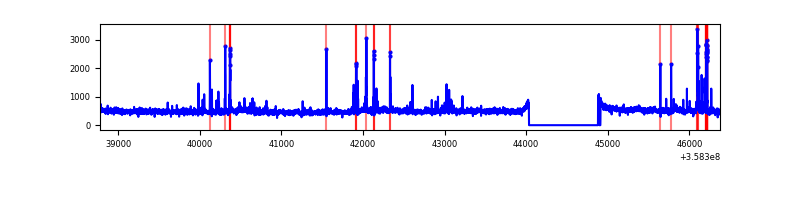

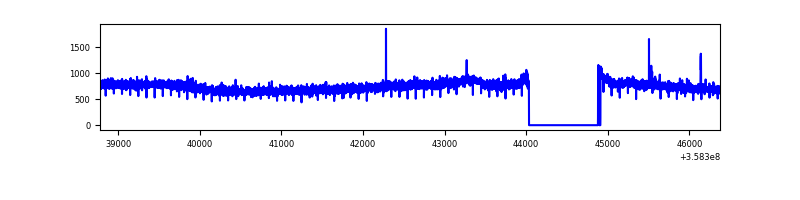

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7598 | 6737 | 30 | 30 | 0.39% | 0.45% |  |
| B | 7598 | 6738 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7598 | 6738 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7598 | 6738 | 41 | 41 | 0.54% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 113604 | 682.62 | 820 | 805 | 165.2 |
| A | 13 | 254 | 12193 | 68.92 | 820 | 805 | 165.2 |
| A | 8 | 192 | 11146 | 62.58 | 820 | 805 | 165.2 |
| B | 6 | 159 | 1805891 | 11440.49 | 809 | 789 | 157.8 |
| B | 12 | 111 | 19687 | 119.77 | 809 | 789 | 157.8 |
| B | 11 | 111 | 18138 | 109.96 | 809 | 789 | 157.8 |
| C | 14 | 238 | 127738 | 683.63 | 786 | 792 | 185.7 |
| C | 3 | 233 | 104738 | 559.77 | 786 | 792 | 185.7 |
| C | 2 | 114 | 15149 | 77.32 | 786 | 792 | 185.7 |
| D | 8 | 195 | 220222 | 1139.72 | 799 | 782 | 192.5 |
| D | 2 | 250 | 101755 | 524.43 | 799 | 782 | 192.5 |
| D | 13 | 249 | 89822 | 462.45 | 799 | 782 | 192.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

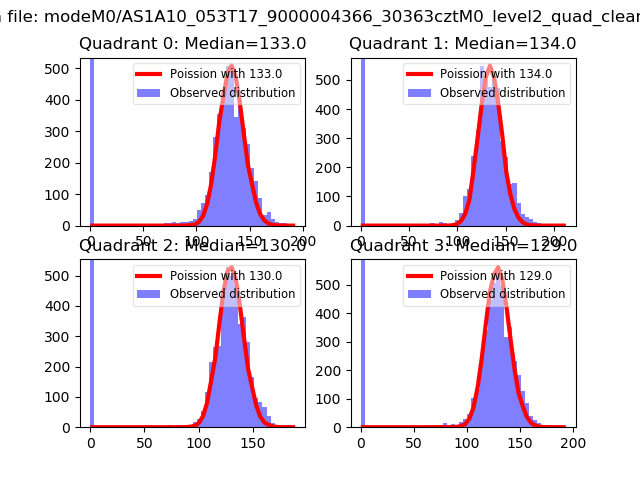

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

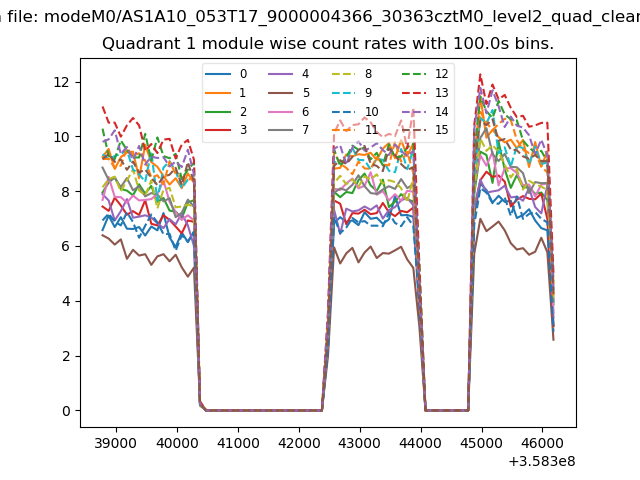

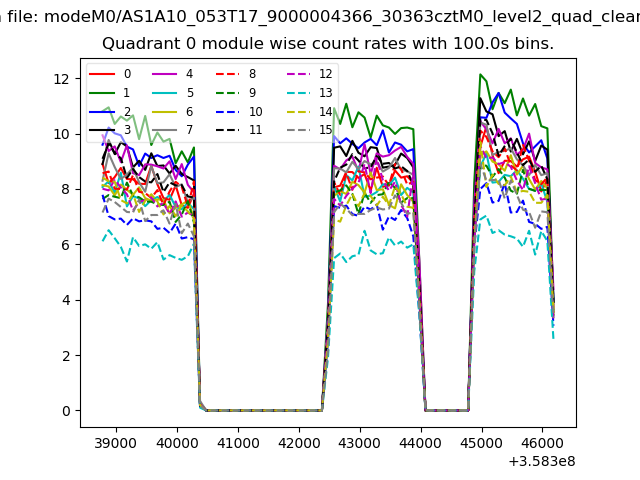

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

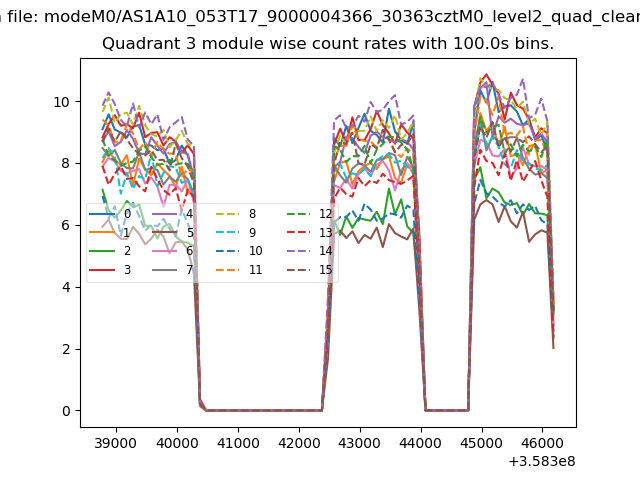

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

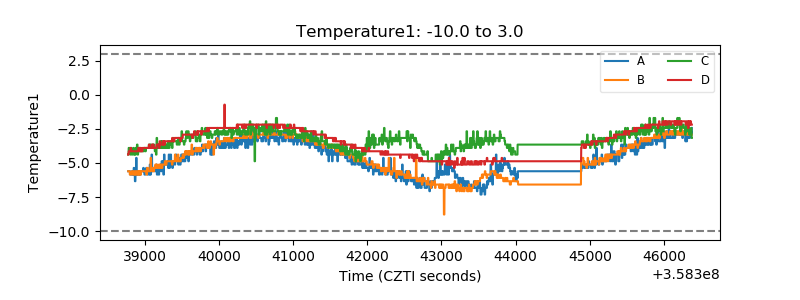

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

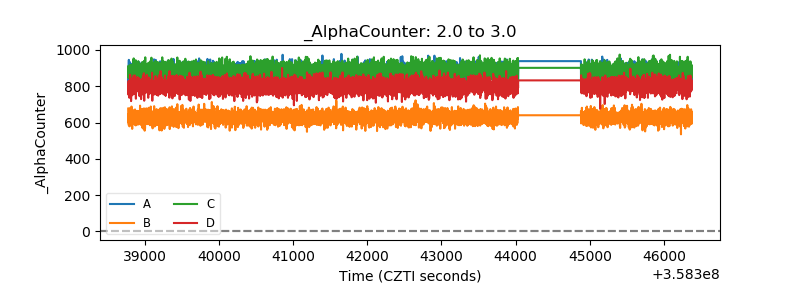

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
