| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T17_9000004366_30367cztM0_level2.evt | modeM0/AS1A10_053T17_9000004366_30367cztM0_level2_quad_clean.evt |
| Size (bytes) | 580,083,840 | 58,023,360 |
| Size | 553.2 MB | 55.3 MB |
| Events in quadrant A | 3,302,874 | 350,382 |
| Events in quadrant B | 4,786,211 | 348,604 |
| Events in quadrant C | 5,870,877 | 311,407 |
| Events in quadrant D | 3,208,511 | 333,097 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13364 | 1 |
| B | 0 | 17983 | 1 |
| C | 0 | 21709 | 1 |
| D | 0 | 13133 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5903 | 95 | 1.609351% |
| B | 5904 | 104 | 1.761518% |
| C | 5904 | 559 | 9.468157% |
| D | 5903 | 38 | 0.643740% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7163 | 5903 | 26 | 26 | 0.36% | 0.44% |  |
| B | 7164 | 5904 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7164 | 5904 | 100 | 100 | 1.40% | 1.69% |  |
| D | 7163 | 5903 | 9 | 9 | 0.13% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 106080 | 647.11 | 817 | 805 | 162.7 |
| A | 12 | 96 | 31832 | 190.72 | 817 | 805 | 162.7 |
| A | 8 | 192 | 13807 | 79.92 | 817 | 805 | 162.7 |
| B | 6 | 159 | 1629814 | 10862.7 | 806 | 788 | 150.0 |
| B | 12 | 111 | 17944 | 114.4 | 806 | 788 | 150.0 |
| B | 11 | 111 | 16253 | 103.12 | 806 | 788 | 150.0 |
| C | 3 | 233 | 2777817 | 16043.46 | 754 | 761 | 173.1 |
| C | 14 | 238 | 125978 | 723.4 | 754 | 761 | 173.1 |
| C | 0 | 10 | 14968 | 82.08 | 754 | 761 | 173.1 |
| D | 8 | 195 | 167346 | 856.31 | 776 | 760 | 194.5 |
| D | 2 | 250 | 57362 | 290.95 | 776 | 760 | 194.5 |
| D | 2 | 234 | 27344 | 136.65 | 776 | 760 | 194.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

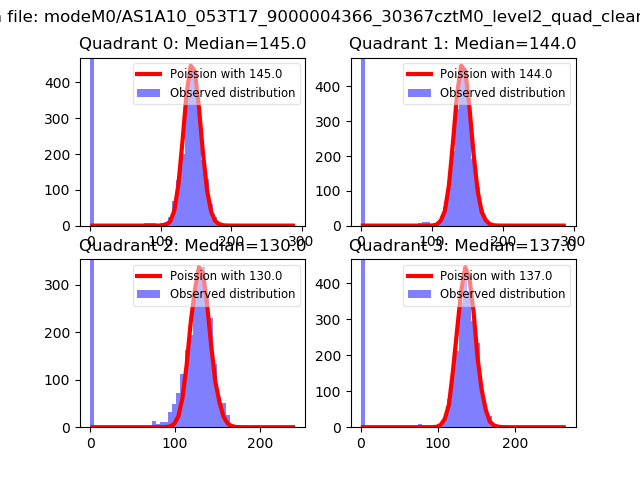

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
