| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_006T01_9000004370_30378cztM0_level2.evt | modeM0/AS1T04_006T01_9000004370_30378cztM0_level2_quad_clean.evt |
| Size (bytes) | 211,124,160 | 23,771,520 |
| Size | 201.3 MB | 22.7 MB |
| Events in quadrant A | 1,389,885 | 137,363 |
| Events in quadrant B | 2,050,700 | 135,331 |
| Events in quadrant C | 1,358,599 | 133,191 |
| Events in quadrant D | 1,422,670 | 133,255 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5675 | 1 |
| B | 0 | 7669 | 1 |
| C | 0 | 5506 | 1 |
| D | 0 | 5815 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52 | 0 |
| B | 0 | 52 | 0 |
| C | 0 | 52 | 0 |
| D | 0 | 52 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2508 | 64 | 2.551834% |
| B | 2508 | 85 | 3.389155% |
| C | 2508 | 82 | 3.269537% |
| D | 2508 | 46 | 1.834131% |

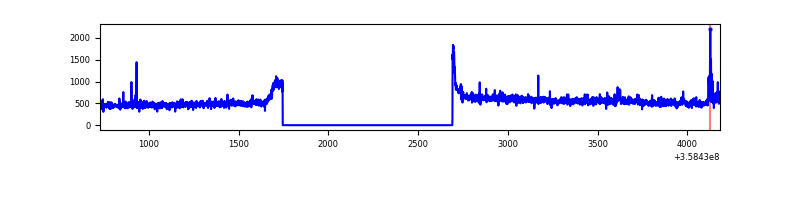

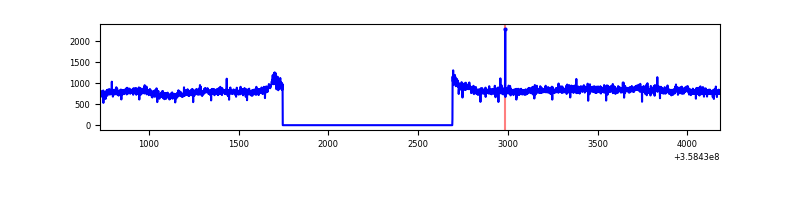

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3453 | 2508 | 1 | 1 | 0.03% | 0.04% |  |
| B | 3453 | 2508 | 1 | 1 | 0.03% | 0.04% |  |
| C | 3453 | 2508 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3453 | 2508 | 3 | 3 | 0.09% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 36426 | 525.33 | 345 | 338 | 68.7 |
| A | 8 | 192 | 12730 | 180.39 | 345 | 338 | 68.7 |
| A | 13 | 254 | 5227 | 71.17 | 345 | 338 | 68.7 |
| B | 6 | 159 | 705344 | 10731.21 | 336 | 328 | 65.7 |
| B | 0 | 190 | 11743 | 173.75 | 336 | 328 | 65.7 |
| B | 12 | 111 | 7811 | 113.9 | 336 | 328 | 65.7 |
| C | 14 | 238 | 52127 | 669.82 | 327 | 329 | 77.3 |
| C | 3 | 233 | 22375 | 285.09 | 327 | 329 | 77.3 |
| C | 2 | 114 | 6031 | 73.74 | 327 | 329 | 77.3 |
| D | 2 | 250 | 59815 | 737.45 | 334 | 325 | 80.7 |
| D | 8 | 195 | 58624 | 722.69 | 334 | 325 | 80.7 |
| D | 13 | 249 | 17257 | 209.89 | 334 | 325 | 80.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

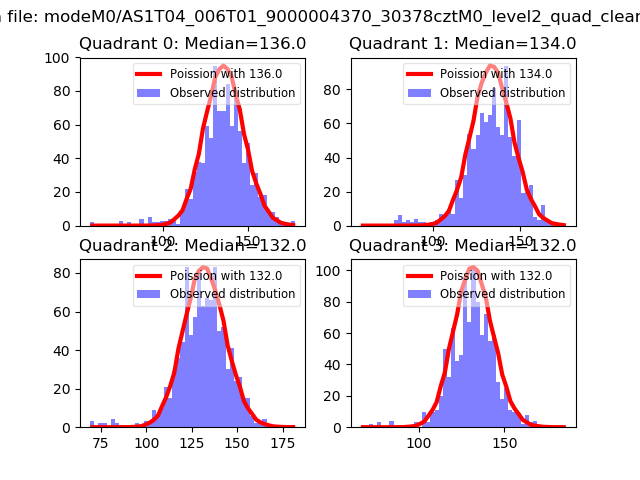

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

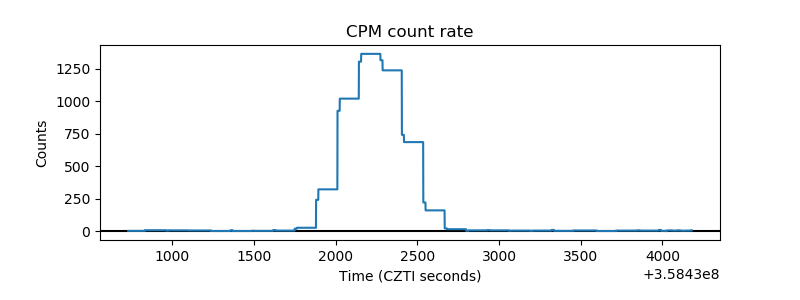

| _CPM_Rate |  |

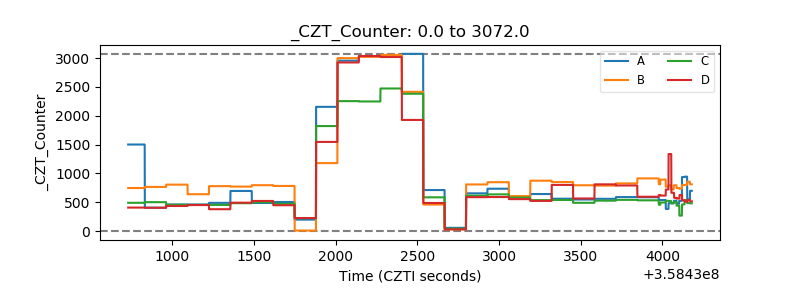

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

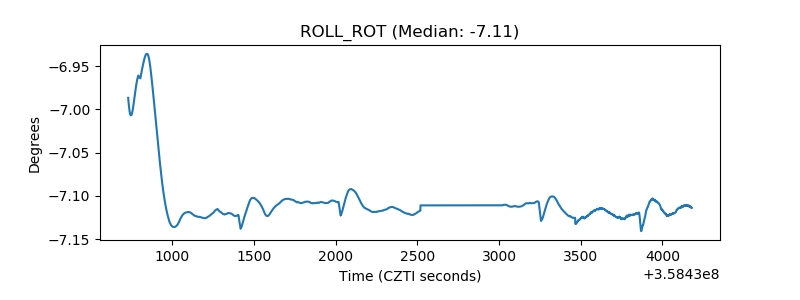

| _ROLL_ROT |  |

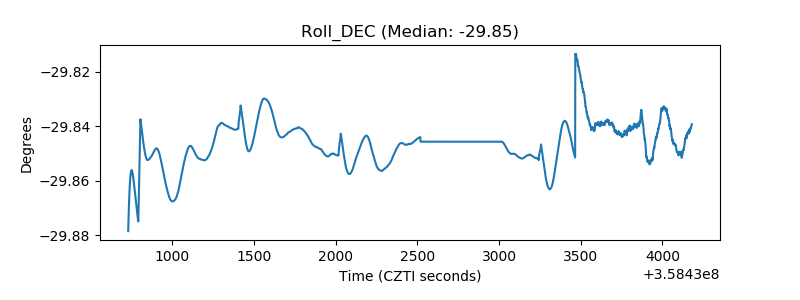

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
