| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_006T01_9000004370_30385cztM0_level2.evt | modeM0/AS1T04_006T01_9000004370_30385cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,300,480 | 106,251,840 |
| Size | 509.5 MB | 101.3 MB |
| Events in quadrant A | 3,249,070 | 699,876 |
| Events in quadrant B | 5,205,181 | 715,092 |
| Events in quadrant C | 3,446,369 | 684,382 |
| Events in quadrant D | 3,840,212 | 665,262 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13749 | 2 |
| B | 0 | 19942 | 2 |
| C | 0 | 14103 | 2 |
| D | 0 | 15704 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6499 | 49 | 0.753962% |
| B | 6500 | 135 | 2.076923% |
| C | 6500 | 191 | 2.938462% |
| D | 6500 | 176 | 2.707692% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7614 | 6500 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7615 | 6501 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7615 | 6501 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7615 | 6501 | 123 | 123 | 1.62% | 1.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 28450 | 165.4 | 828 | 813 | 167.1 |
| A | 11 | 242 | 18351 | 104.96 | 828 | 813 | 167.1 |
| A | 13 | 254 | 13354 | 75.06 | 828 | 813 | 167.1 |
| B | 6 | 159 | 1870896 | 11789.36 | 832 | 811 | 158.6 |
| B | 0 | 229 | 37661 | 232.31 | 832 | 811 | 158.6 |
| B | 0 | 190 | 19769 | 119.51 | 832 | 811 | 158.6 |
| C | 14 | 238 | 164391 | 863.91 | 808 | 817 | 189.3 |
| C | 3 | 233 | 59116 | 307.91 | 808 | 817 | 189.3 |
| C | 14 | 254 | 46488 | 241.21 | 808 | 817 | 189.3 |
| D | 13 | 104 | 446064 | 2353.6 | 796 | 775 | 189.2 |
| D | 8 | 195 | 199999 | 1053.01 | 796 | 775 | 189.2 |
| D | 13 | 249 | 69500 | 363.25 | 796 | 775 | 189.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

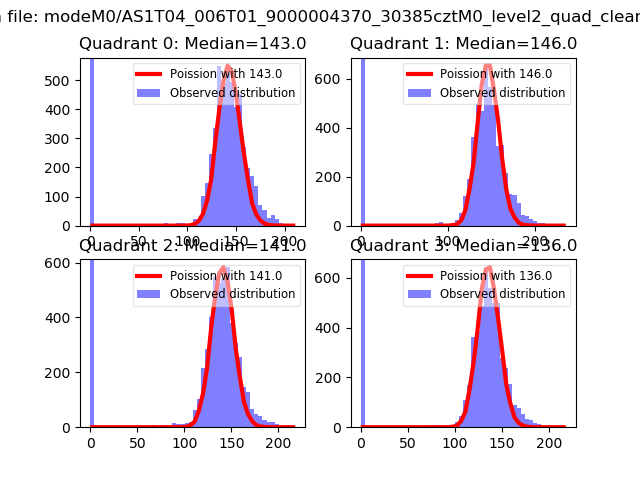

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

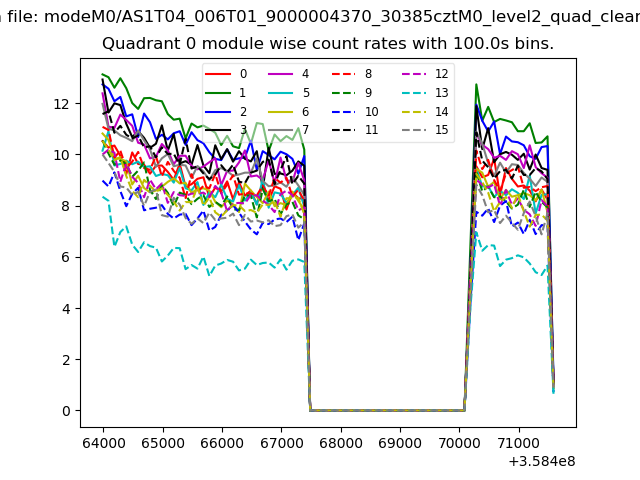

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

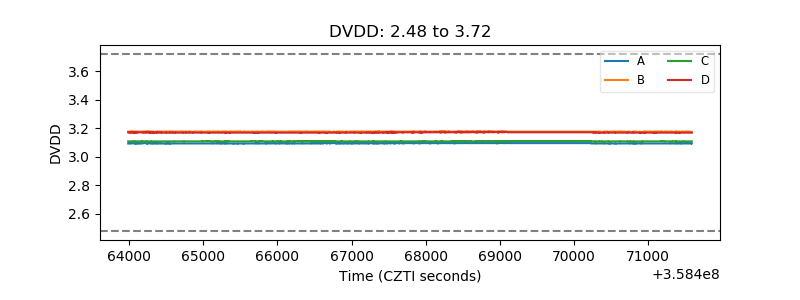

| D_VDD |  |

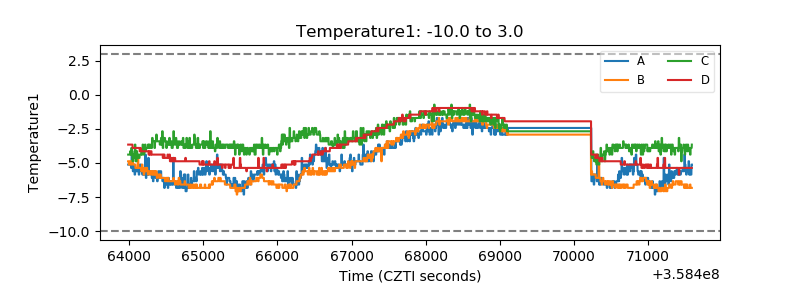

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

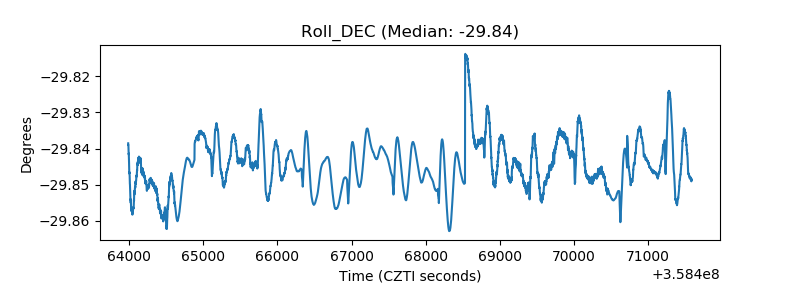

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
