| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T20_9000004372_30397cztM0_level2.evt | modeM0/AS1A10_053T20_9000004372_30397cztM0_level2_quad_clean.evt |
| Size (bytes) | 237,026,880 | 20,900,160 |
| Size | 226.0 MB | 19.9 MB |
| Events in quadrant A | 1,432,711 | 123,848 |
| Events in quadrant B | 1,887,896 | 125,164 |
| Events in quadrant C | 1,268,696 | 113,651 |
| Events in quadrant D | 2,446,467 | 118,636 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5710 | 1 |
| B | 0 | 6875 | 1 |
| C | 0 | 5130 | 1 |
| D | 0 | 8794 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2084 | 65 | 3.119002% |
| B | 2084 | 84 | 4.030710% |
| C | 2084 | 159 | 7.629559% |
| D | 2084 | 155 | 7.437620% |

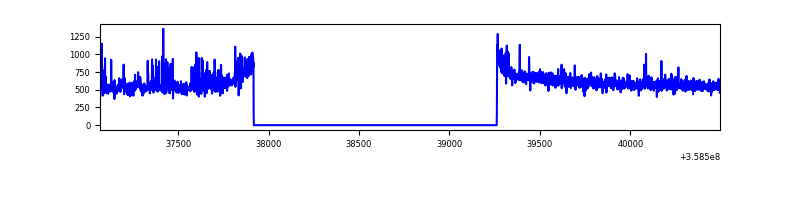

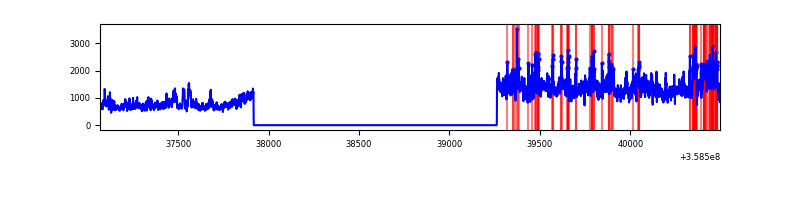

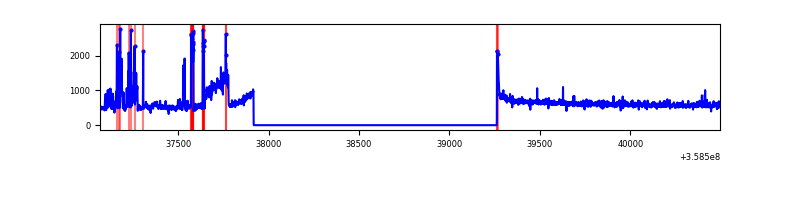

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3429 | 2085 | 31 | 31 | 0.90% | 1.49% |  |
| B | 3429 | 2084 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3429 | 2085 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3429 | 2085 | 105 | 105 | 3.06% | 5.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 208707 | 3307.23 | 313 | 308 | 63.0 |
| A | 8 | 192 | 12559 | 194.42 | 313 | 308 | 63.0 |
| A | 13 | 254 | 3877 | 56.64 | 313 | 308 | 63.0 |
| B | 6 | 159 | 606541 | 10125.81 | 309 | 303 | 59.9 |
| B | 0 | 229 | 69151 | 1149.95 | 309 | 303 | 59.9 |
| B | 12 | 111 | 6655 | 106.1 | 309 | 303 | 59.9 |
| C | 14 | 238 | 81125 | 1201.57 | 288 | 290 | 67.3 |
| C | 14 | 254 | 44836 | 662.15 | 288 | 290 | 67.3 |
| C | 3 | 233 | 12000 | 174.06 | 288 | 290 | 67.3 |
| D | 8 | 195 | 1214618 | 17408.41 | 295 | 288 | 69.8 |
| D | 13 | 249 | 61535 | 878.03 | 295 | 288 | 69.8 |
| D | 13 | 104 | 46367 | 660.58 | 295 | 288 | 69.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

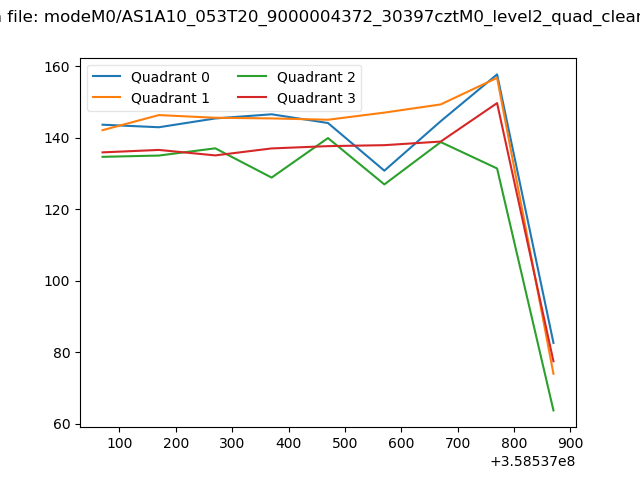

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

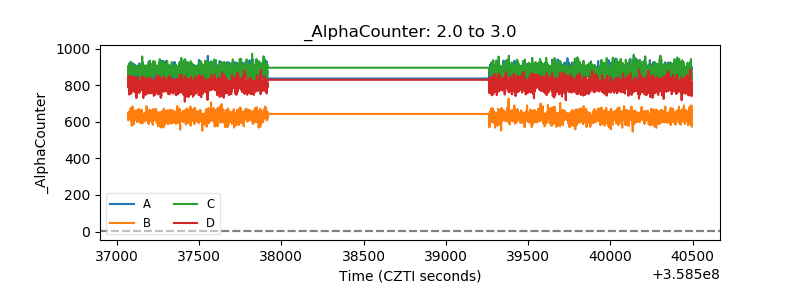

| Alpha Counter |  |

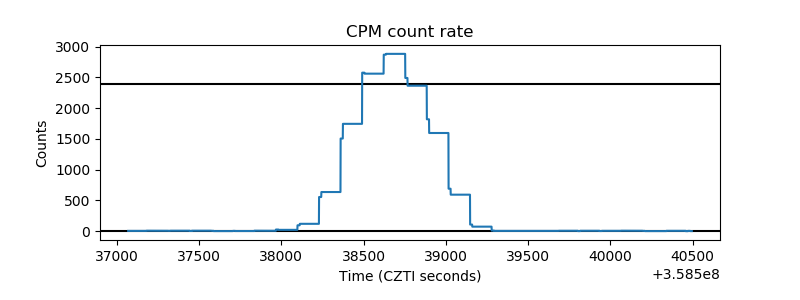

| _CPM_Rate |  |

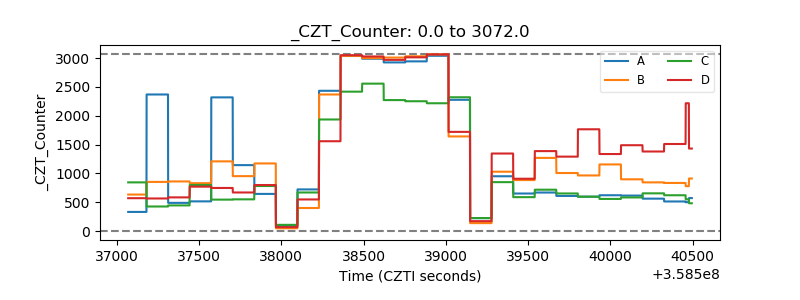

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
