| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_002T01_9000004374_30400cztM0_level2.evt | modeM0/AS1T04_002T01_9000004374_30400cztM0_level2_quad_clean.evt |
| Size (bytes) | 112,826,880 | 27,982,080 |
| Size | 107.6 MB | 26.7 MB |
| Events in quadrant A | 677,405 | 188,935 |
| Events in quadrant B | 1,121,780 | 190,650 |
| Events in quadrant C | 831,947 | 182,438 |
| Events in quadrant D | 689,019 | 181,678 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2936 | 2 |
| B | 0 | 4299 | 3 |
| C | 0 | 3323 | 2 |
| D | 0 | 2992 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1384 | 17 | 1.228324% |
| B | 1383 | 49 | 3.543022% |
| C | 1383 | 86 | 6.218366% |
| D | 1383 | 16 | 1.156905% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1399 | 1385 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1398 | 1384 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1398 | 1384 | 22 | 22 | 1.57% | 1.59% |  |
| D | 1398 | 1384 | 6 | 6 | 0.43% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 13737 | 378.2 | 170 | 167 | 35.9 |
| A | 11 | 242 | 4346 | 116.47 | 170 | 167 | 35.9 |
| A | 13 | 254 | 2662 | 69.54 | 170 | 167 | 35.9 |
| B | 6 | 159 | 405584 | 11557.42 | 172 | 167 | 35.1 |
| B | 0 | 229 | 36858 | 1045.97 | 172 | 167 | 35.1 |
| B | 12 | 111 | 4066 | 111.15 | 172 | 167 | 35.1 |
| C | 10 | 22 | 100469 | 2442.24 | 168 | 168 | 41.1 |
| C | 14 | 238 | 36477 | 884.09 | 168 | 168 | 41.1 |
| C | 3 | 233 | 14152 | 340.5 | 168 | 168 | 41.1 |
| D | 13 | 138 | 32214 | 764.14 | 168 | 164 | 41.9 |
| D | 8 | 195 | 10093 | 236.73 | 168 | 164 | 41.9 |
| D | 2 | 234 | 5057 | 116.66 | 168 | 164 | 41.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

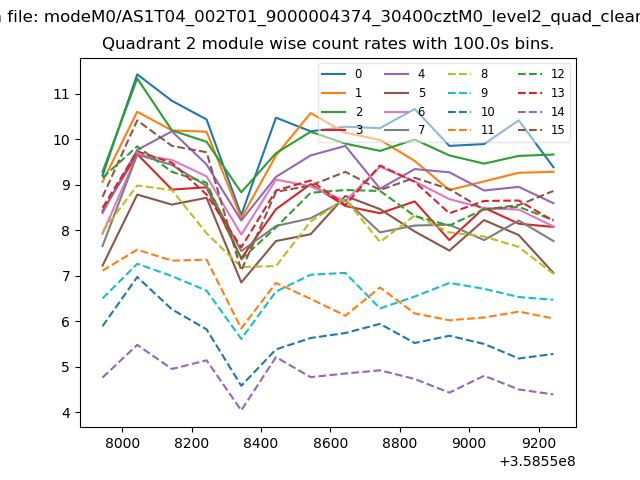

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

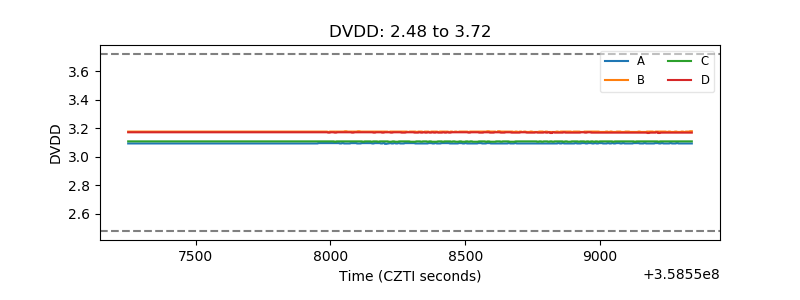

| D_VDD |  |

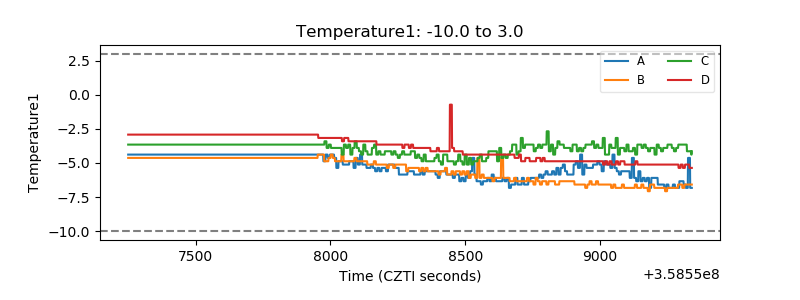

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

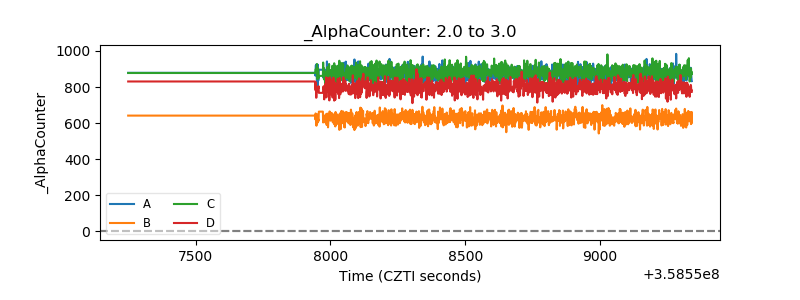

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

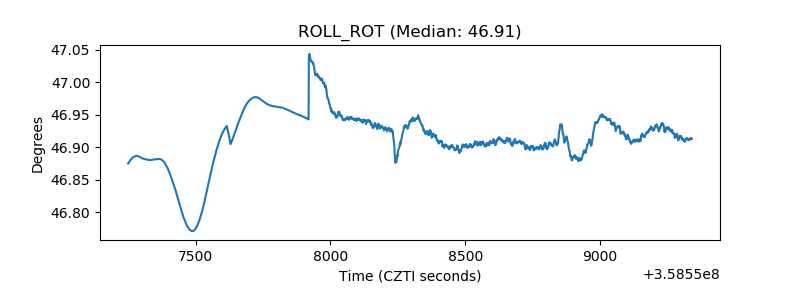

| _ROLL_ROT |  |

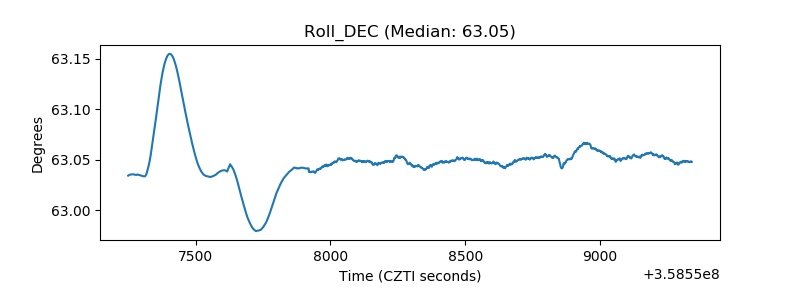

| _Roll_DEC |  |

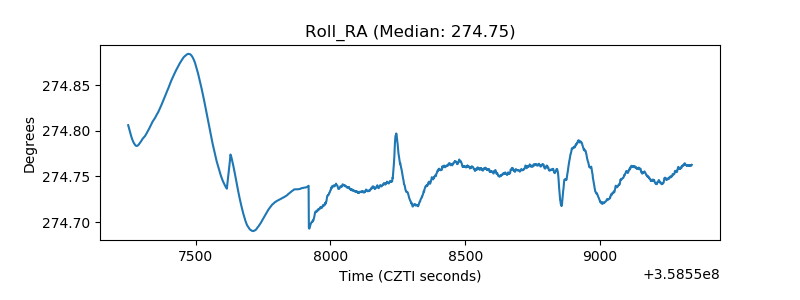

| _Roll_RA |  |

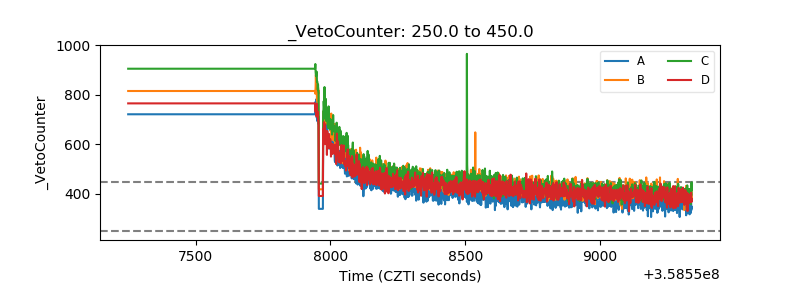

| Veto Counter |  |
